Ver.1.06

CPS-PCS341EC-DS1-1201

3

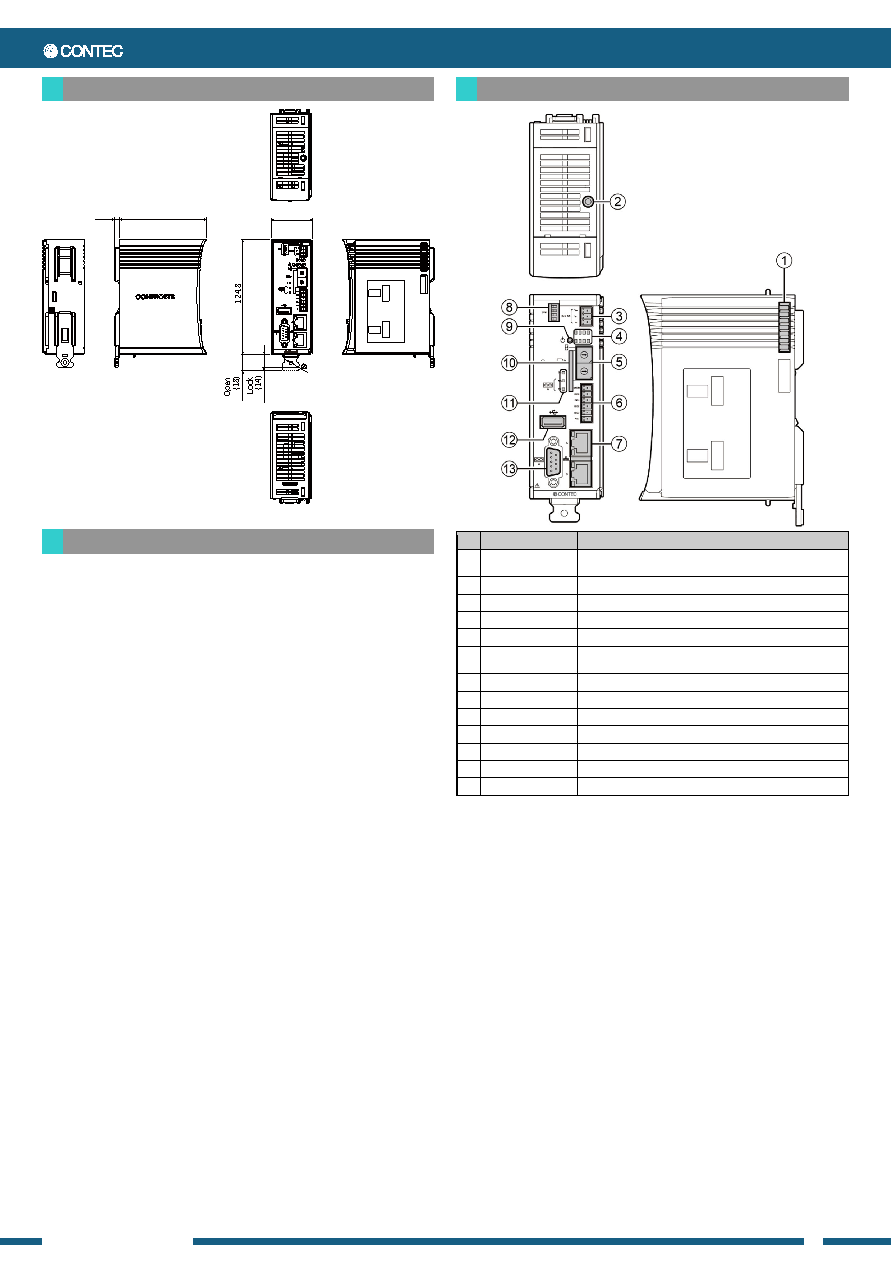

Physical Dimensions

List of Option

DIN rail fitting power supply

CPS-PWD-90AW24-01

DIN rail fitting power supply 90[w]

(Input: 100 - 240VAC, output: 24VDC 3.8 A)

CPS-PWD-30AW24-01

DIN rail fitting power supply 30[w]

(Input: 100 - 240VAC, output: 24VDC 1.3 A)

SD Card

SD-2GB-B

SD Card 2GB

SD-4GB-A

SD Card 4GB

Configurable Type Module

CPS-DIO-0808L

with digital input/output (no built-in power supply)

CPS-DIO-0808BL

with digital input/output (built-in power supply)

CPS-DIO-0808RL

with digital input/output (current source)

CPS-DI-16L

with digital input (16ch, current sink)

CPS-DI-16RL

with digital input (16ch, current source)

CPS-DO-16L

with digital output (16ch, current sink)

CPS-DO-16RL

with digital output (16ch, current source)

CPS-COM-1PC

with RS-232C (contains 1port)

CPS-COM-2PC

with RS-232C (contains 2 ports)

CPS-COM-1PD

with RS-422A/485 (1channel)

CPS-COM-2PD

with RS-422A/485 (2 channels)

CPS-AI-1608LI

with analog input (voltage input 8 channels)

CPS-AI-1608LI

with analog input (current input 8 channels)

CPS-AO-1804LI

with analog output (current output 4 channels)

CPS-AO-1804LI

with analog output (voltage output 4 channels)

CPS-CNT-32021

with counter input

CPS-RRY-4PCC

with Relay output

CPS-SSI-4P

with temperature sensor input

* Visit the Contec website regarding information on theoptional products.

Component Name

No.

Name

Function

1

Stack Bus

Used for power supply and communication with the configurable type

module.

2

Maintenance Connector

Do not use it.

3

Power Connector

Use the 3-pin connector, included in thepackage.

4

LEDIndicator 1

This indicates status of the product.

5

Rotary Switch

Used for user setup.

6

DigitalI/O Connector

This is a connector for digitalI/O. (Use the 6-pin connector, included in the

package)

7

LAN Port

This is a connector for LAN.

8

DIP Switch

This is used foruser setup.

9

Power Switch

This is used for controlling of the power supply.

10 SD Card Slot

This is for data storage.

11 LEDIndicator 2

This indicatesthe status of the product.

12 USB Port

This is a USB port of type-A.

13 RS-232C Serial Port

This is a RS-232C serial ports(male).

[mm]

94.7

5.1

44.7

4
