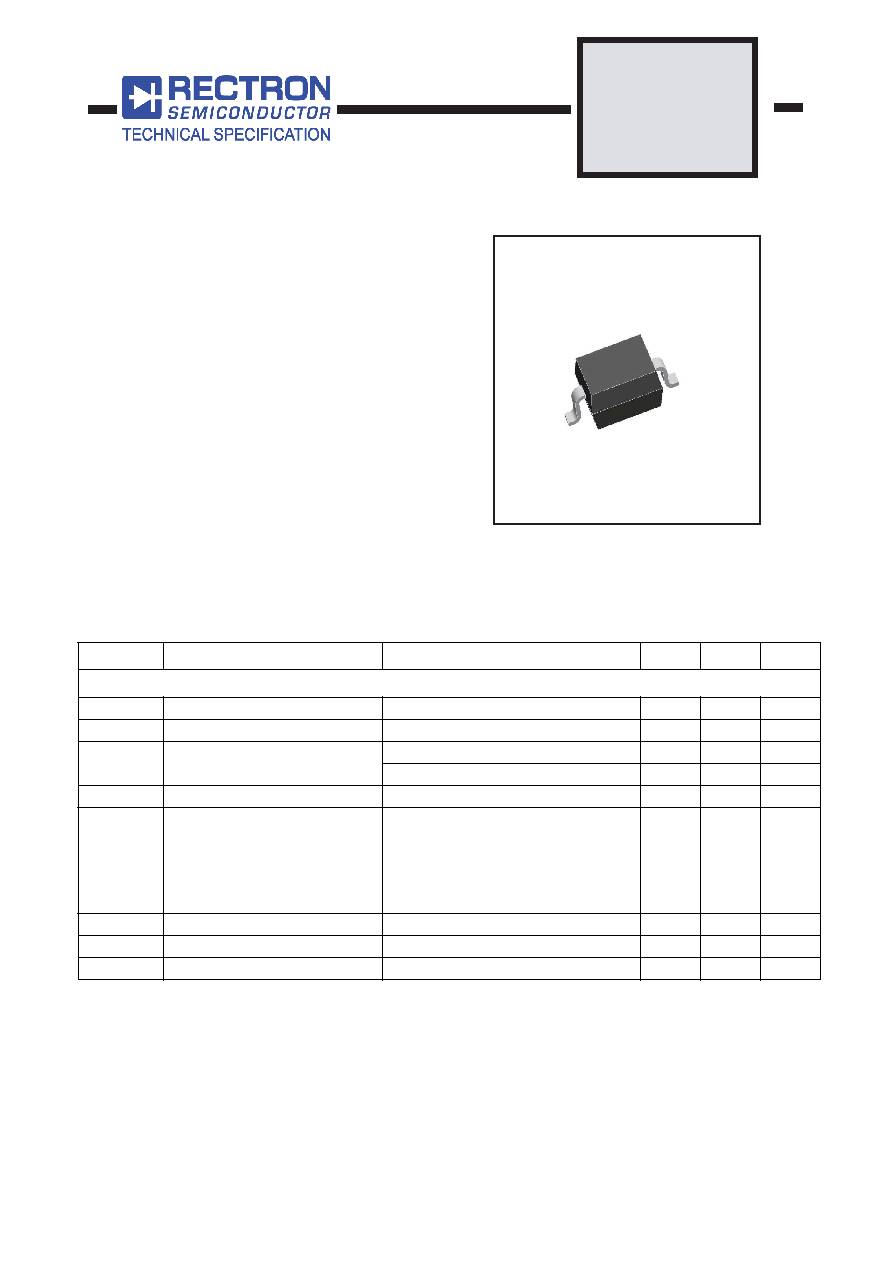

Low-leakage double diode

FEATURES

• Plastic SMD package

• Low leakage current: typ. 3 pA

• Switching time: typ. 0.8 μs

• Continuous reverse voltage:max. 75 V

• Repetitive peak reverse voltage: max. 85 V

• Repetitive peak forward current:max. 500 mA.

APPLICATION

• Low-leakage current applications in

surface mounted circuits.

DESCRIPTION

Epitaxial, medium-speed switching, double diode in a small SOD323 plastic SMD package. The diodes are connected in series.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Note

1. Device mounted on a FR4 printed-circuit board.

SYMBOL

PARAMETER

CONDITIONS

MIN.

MAX.

UNIT

Per diode

repetitive peak reverse voltage

−

85

V

continuous reverse voltage

−

75

V

continuous forward current

single diode loaded; note 1; see Fig.2

−

160

mA

double diode loaded; note 1; see Fig.2

−

140

mA

repetitive peak forward current

−

500

mA

non-repetitive peak forward

current

°C prior to surge;

see Fig.4

μs

−

4A

−

1A

−

0.5

A

total power dissipation

°C; note 1

−

250

mW

storage temperature

−65

+150

°C

junction temperature

−

150

°C

2020-11/79

REV:O

• P/N suffix V means AEC-Q101 qualified,

• P/N suffix V means Halogen-free

e.g:BAS416V

SOD-323

Marking:S4

BAS416V
