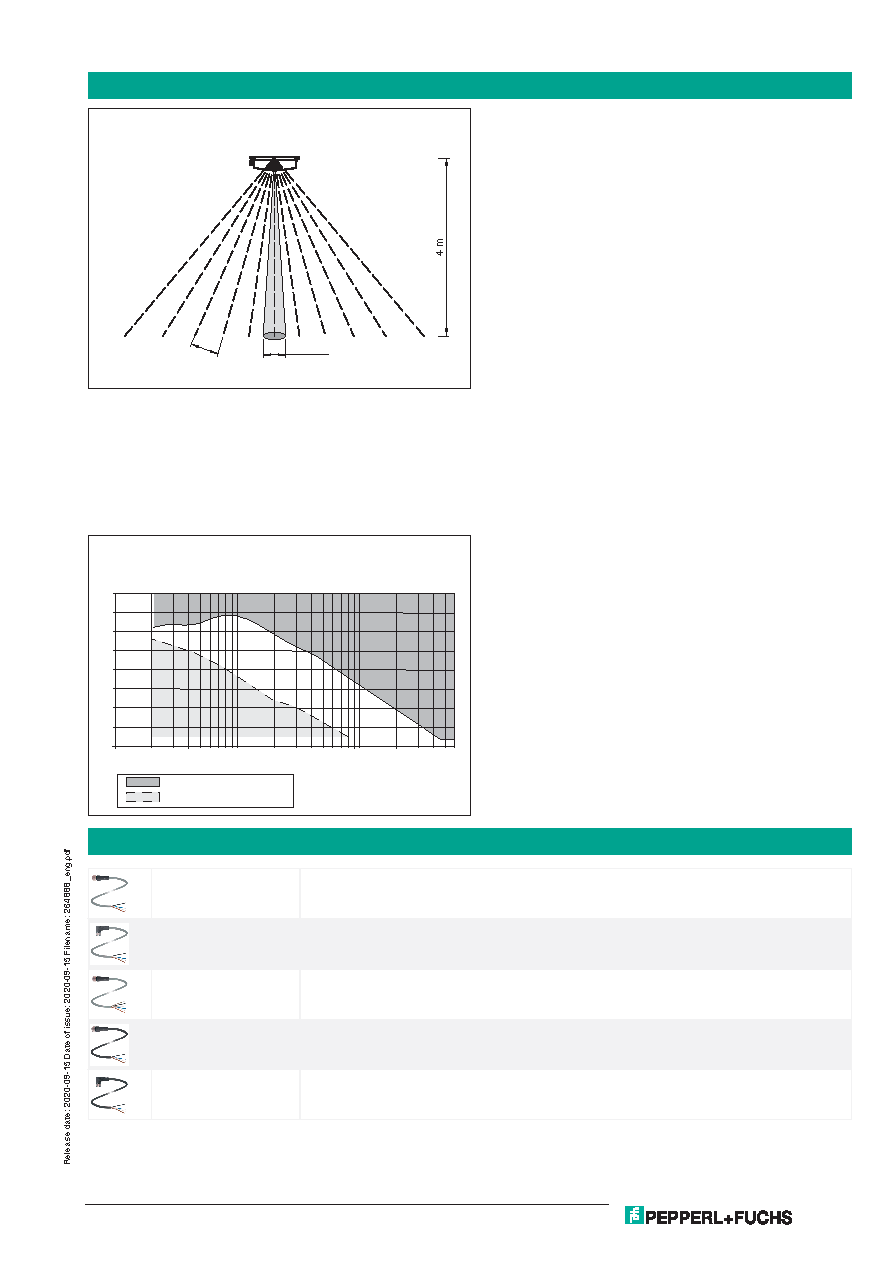

Characteristic Curve

Beam geometry

8°

550 mm

16

14

12

10

8

6

4

2

0

0.1

1

10

60

Echoamplitude [digit x 1000]

Echoamplitude characteristic

Echoamplitude on reflectors

Object remission 6% ... 90 %

Distance X [m]

Accessories

V1-G-2M-PUR

Female cordset, M12, 4-pin, PUR cable

V1-W-2M-PUR

Female cordset, M12, 4-pin, PUR cable

V15-G-5M-PUR-ABG

Female cordset single-ended M12 A-coded, 5-pin, PUR cable black, shielded

V1-G-BK5M-PUR-U

Female cordset, M12, 4-pin, PUR cable

V1-W-BK5M-PUR-U

Female cordset, M12, 4-pin, PUR cable

2-D LiDAR Sensor

OMD8000-R2100-R2-2V15

4
