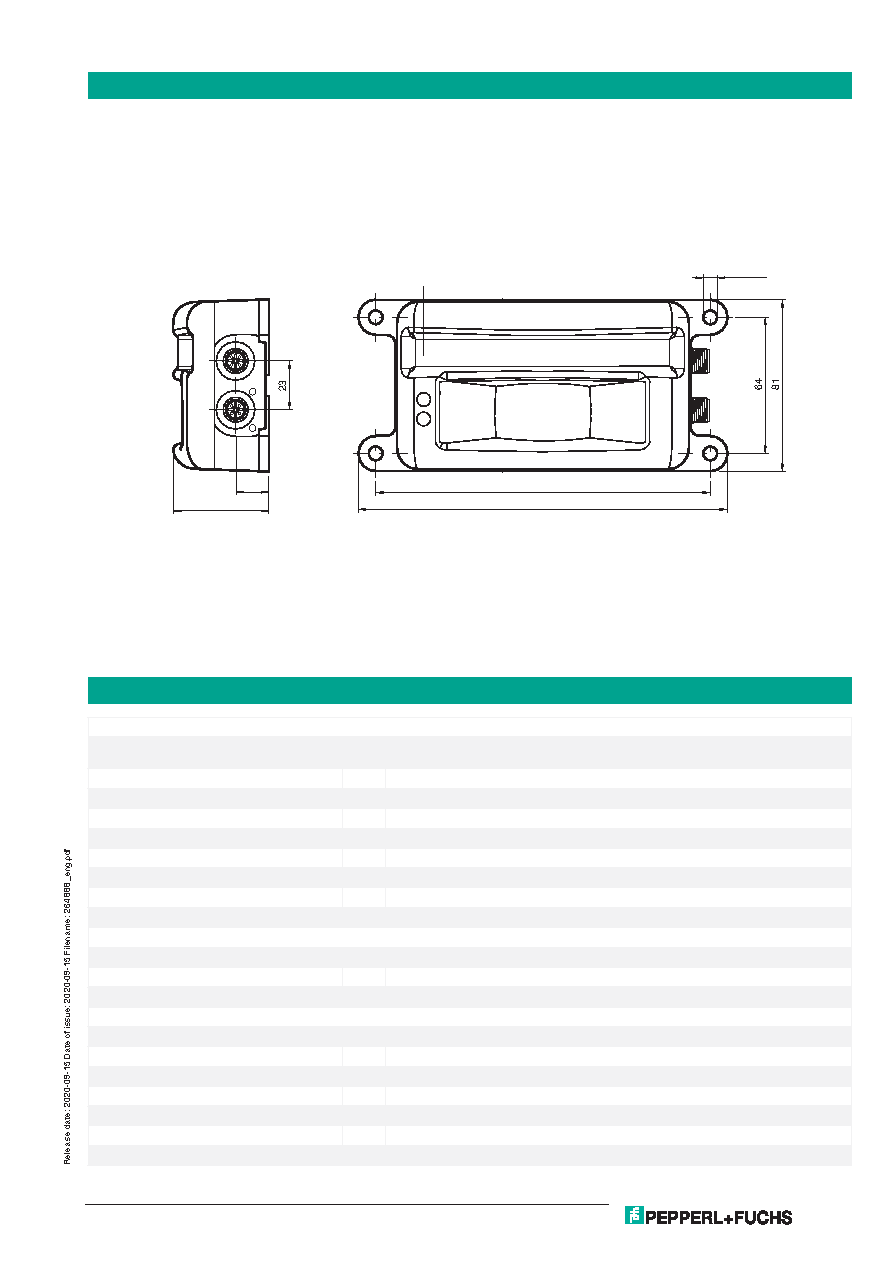

Dimensions

Power

RS 232

Beam 0

15.5

ø 6.5 (4x)

157

174

45

Technical Data

General specifications

Measurement range

0.2 ... 2 m (bw 6%)

0.2 ... 8 m (wh 90%)

Light source

IRED

Light type

modulated infrared light , 850 nm

Measuring method

Pulse Ranging Technology (PRT)

Scan rate

Scanning angle

88°

Diameter of the light spot

550 mm at 4 m (orthogonal)

Ambient light limit

> 80000 Lux

Resolution

1 mm

Functional safety related parameters

123 a

20 a

Diagnostic Coverage (DC)

0 %

Indicators/operating means

Operation indicator

LED green

Function indicator

LED yellow

Electrical specifications

Operating voltage

10 ... 30 V DC

Ripple

10 % within the supply tolerance

No-load supply current

≤ 120 mA / 24 V DC

Protection class

III

2-D LiDAR Sensor

OMD8000-R2100-R2-2V15

2
