PLL650-06

Network LAN Clock

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/03/04 Page 3

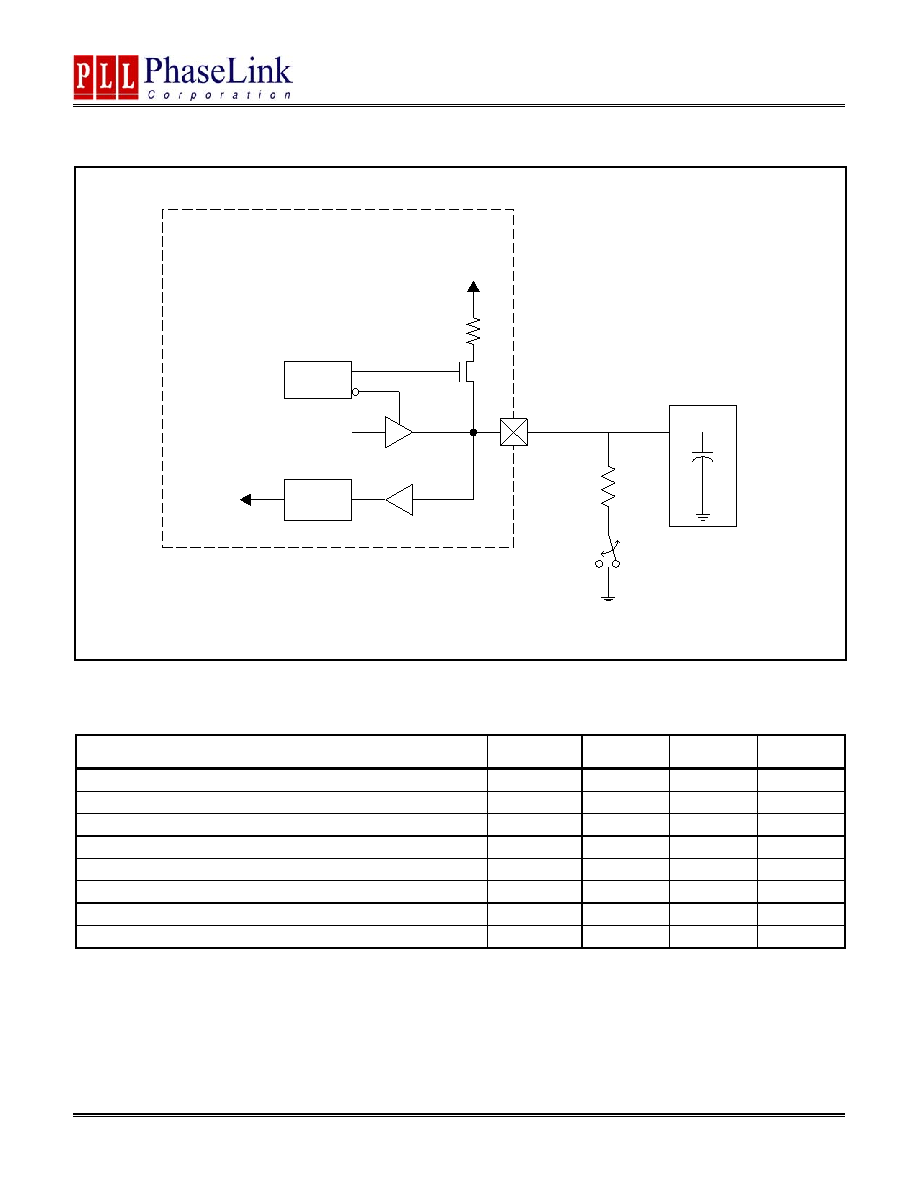

APPLICATION DIAGRAM

Electrical Specifications

1. Absolute Maximum Ratings

PARAMETERS

SYMBOL

MIN.

MAX.

UNITS

Supply Voltage

4.6

V

Input Voltage, dc

-0.5

V

Output Voltage, dc

-0.5

V

Storage Temperature

-65

150

°C

Ambient Operating Temperature*

-40

85

°C

Junction Temperature

125

°C

Lead Temperature (soldering, 10s)

260

°C

ESD Protection, Human Body Model

2

kV

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device

and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above

the operational limits noted in this specification is not implied.

* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.

Latch

Power Up

Reset

Jumper options

R

Clock Load

Latched

Input

Output

EN

VDD

R

up

Bi-directional pin

R

RB

NOTE: Rup=60k

Ω . R starts from 1 to 0 while RB starts from 0 to 1.

Internal to chip

External Circuitry
