PLL701-17

Low EMI Spread Spectrum Multiplier Clock

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991

www.phaselink.com

Rev 01/17/06 Page 1

FEATURES

• Spread Spectrum Clock Generator with selectable

multiplier ( 1x, 2x, 2.94x and 4x ).

• Reference input frequency: 16MHz-60MHz.

• Output frequency ranges: 16MHz to 200MHz.

• Center Spread Modulation.

• TTL/CMOS compatible outputs.

• 3.3V Operating Voltage.

• Low short term jitter.

• Available in 8-Pin 150mil SOIC.

DESCRIPTION

The PLL701-17 is a Spread Spectrum Clock

Generator designed for the purpose of reducing EMI

in high-speed digital systems, with selectable Center

Spread modulation magnitude (see table below). The

multiplication factor can be selected from 4 multiplier

modes. The device operates over a wide range of

input frequencies and provides 1x, 2x. 2.94x and 4x

modulated clock outputs.

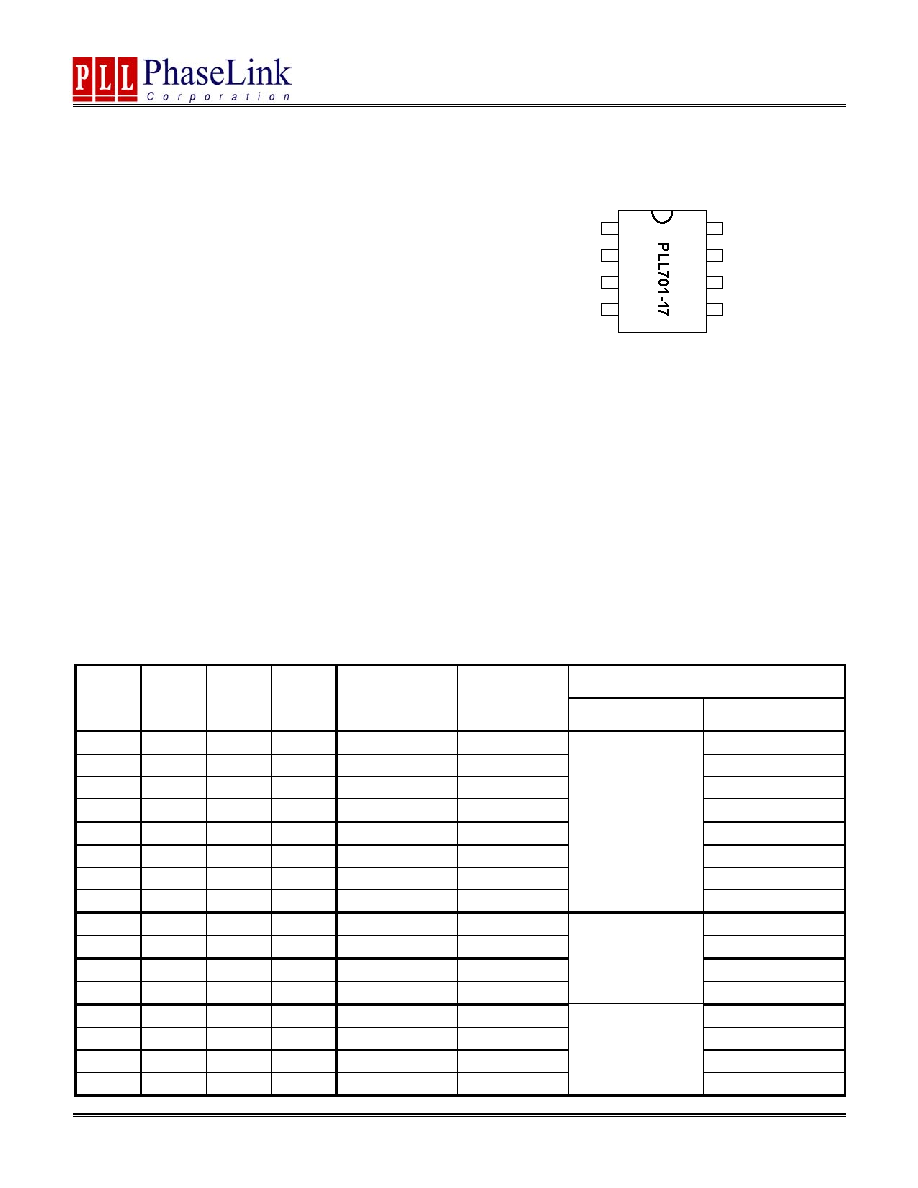

PIN CONFIGURATION

Note: v: 30k

Ω Internal Pull down. ^: 30kΩ Internal Pull up.

OUTPUT CLOCK (FOUT) SELECTION

Spread Spectrum Modulation

S3

S2

S1

S0

FIN Range

(MHz)

FOUT

Frequency

Magnitude

0

0

0

0

16 - 40

X1

±0.75%

0

0

0

1

16 - 40

X1

±1.00%

0

0

1

0

16 - 40

X1

±1.25%

0

0

1

1

16 - 40

X1

±1.50%

0

1

0

0

16 - 40

X2

±0.25%

0

1

0

1

16 - 40

X2

±0.50%

0

1

1

0

16 - 40

X2

±0.75%

0

1

1

1

16 - 40

X2

Fin / 512

±1.00%

1

0

0

0

24 - 60

X2

±1.25%

1

0

0

1

24 - 60

X2

±1.50%

1

0

1

0

24 - 50

X4

±0.25%

1

0

1

1

24 - 50

X4

Fin / 1024

±0.50%

1

1

0

0

16 - 40

X2.94

±0.25%

1

1

0

1

16 - 40

X2.94

±0.50%

1

1

1

0

16 - 40

X2.94

±0.75%

1

1

1

1

16 - 40

X2.94

Fin / 1000

±1.00%

1

2

3

45

6

7

8

FIN

S2^

S1^

VDD

FOUT

GND

FIN = 16 ~ 60 Mhz
