recommended to use an external resistor of around one sixth to one quarter of the internal pull-up resistor (see Application

Diagram).

Note: when the output is used to drive a load presenting an small resistance between the output pin and VDD, this resistance is

in essence connected in parallel to the internal pull-up resistor. In such a case, the external pull-down resistor may have to be

dimensioned smaller to guarantee that the pin voltage will be low enough achieve the desired logical “zero”. This is particularly

true when driving 74FXX TTL components.

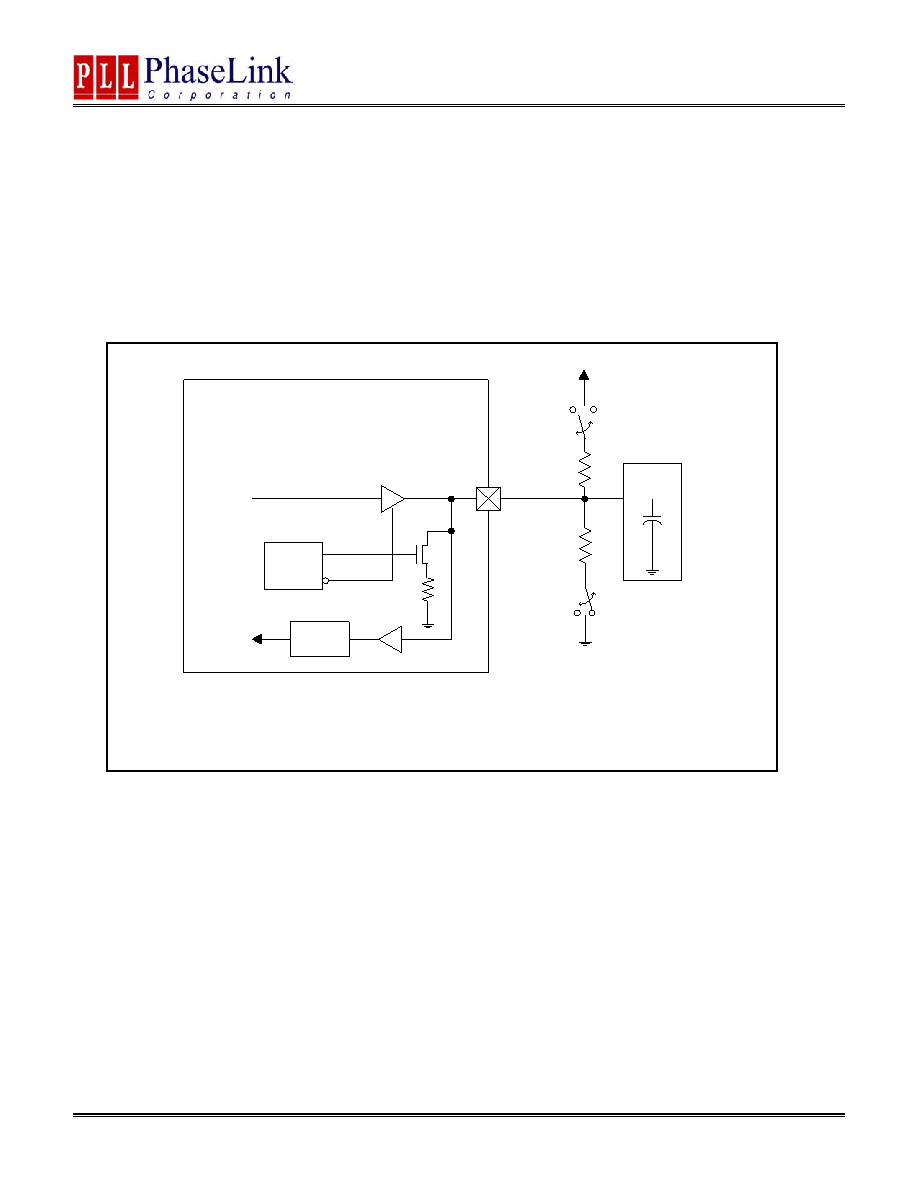

APPLICATION DIAGRAM: BI-DIRECTIONAL PINS WITH INTERNAL PULL-DOWN

Latch

Jumper

options

R

Clock

Load

Latched

Input

Output

EN

R

down

Tri-Level pin

NOTE: Rdn=Internal pull-down resistor (see pin description). Power-up Reset : R starts from 1 to 0 while RB starts from 0 to 1.

Internal to chip

External Circuitry

Power Up

Reset

R

RB

Jumper

options

Vcc

Bi-directional pin
