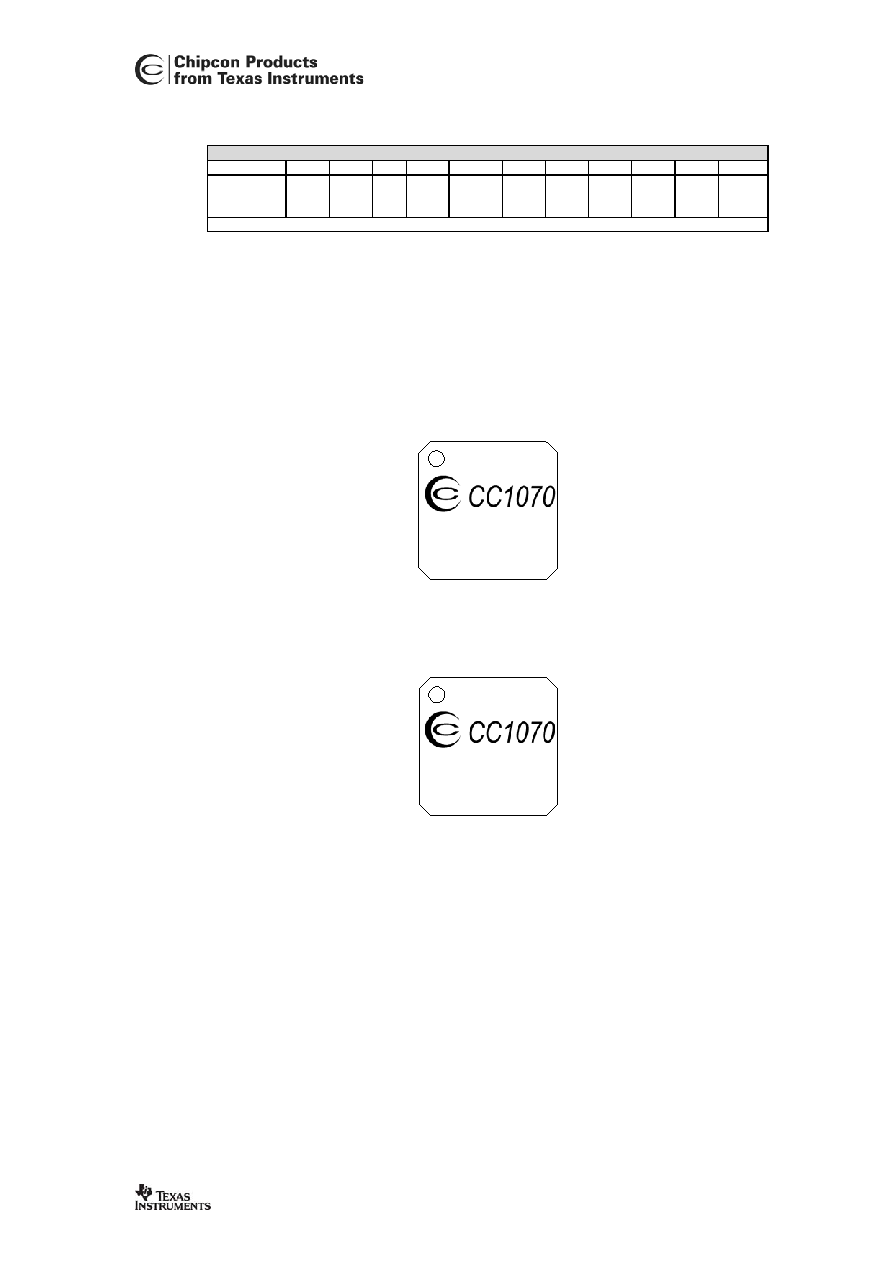

CC1070
SWRS043
Page 53 of 58
Quad Flat Pack - No Lead Package (QFN)
D
E
A
A1
e
b
L
D1
E1
P
QFN 20
Min
Nom
Max
5.0
5.0
0.8
1.0
0.203
0.65
0.25
0.30
0.35
0.45
0.55
0.65
2.9
3.0
3.1
2.9
3.0
3.1
45
°
All dimensions in mm. Angles are in degrees.
Note: Do not place a via underneath
CC1070 at “pin #1 corner” as this pin is internally connected to the
exposed die attached pad, which is the main ground connection for the chip.
25.1 Package Marking
When contacting technical support with a chip-related question, please state the entire marking
information, not just the date code.
Standard leaded
0315123
0315 is the date code (year 03, week 15)
123 is the lot code
RoHS compliant Pb-free
A440123
440 is the date code (year 4, week 40)
123 is the lot code
A means RoHS compliant Pb-free
