2.3.

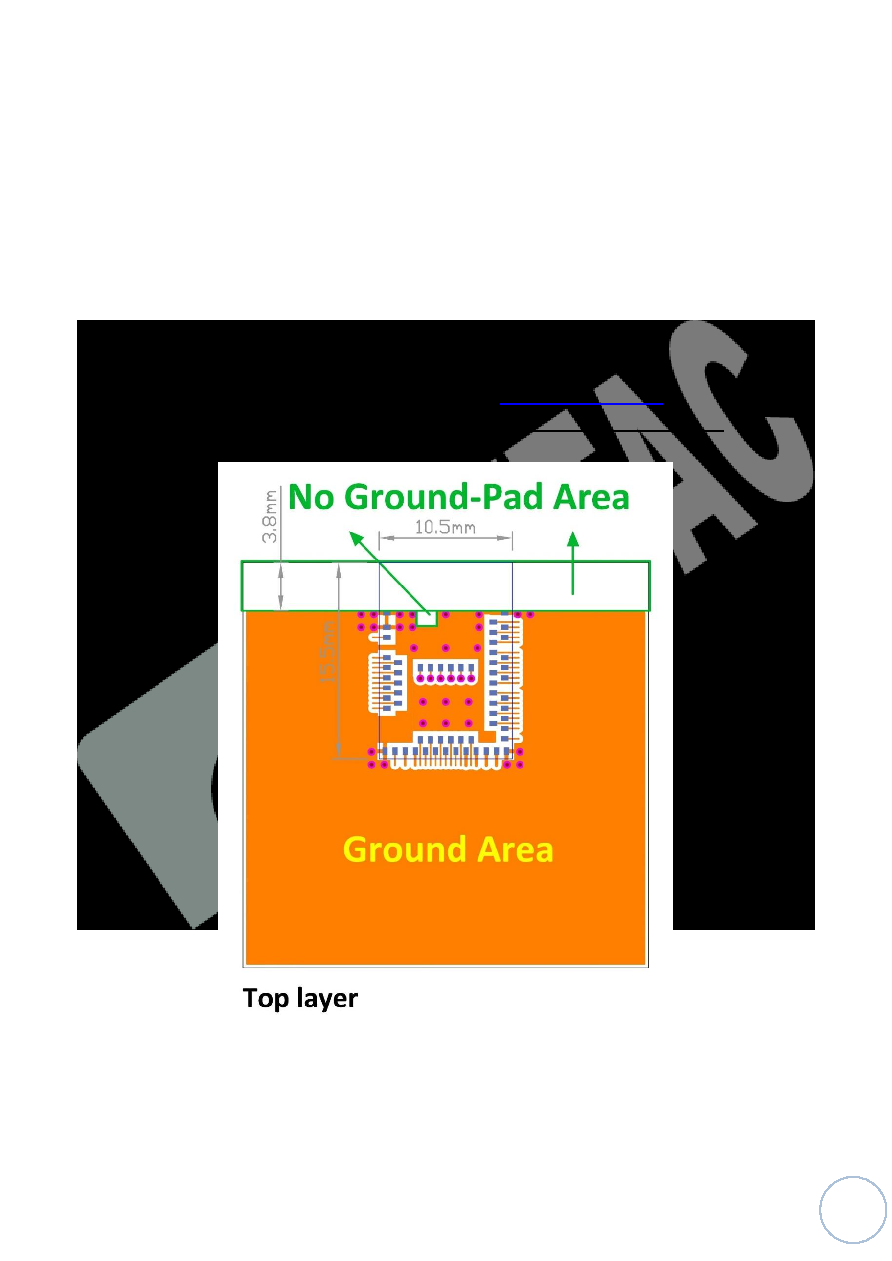

RF Layout Suggestion (aka Keep-Out Area)
Make sure to keep the “No Ground Pad” as wider as you can regardless of the size of your
PCB.
No Ground Pad should be included in the corresponding position of the antenna in EACH
LAYER.
Place the module towards the edge of PCB to have better performance than placing it on the
center.
Welcome to send us your layout in PDF for review at service@raytac.com or your contact at
Raytac
with title “Layout reviewing – Raytac Model No. – YOUR company’s name”.
