MG-28

MGFS3

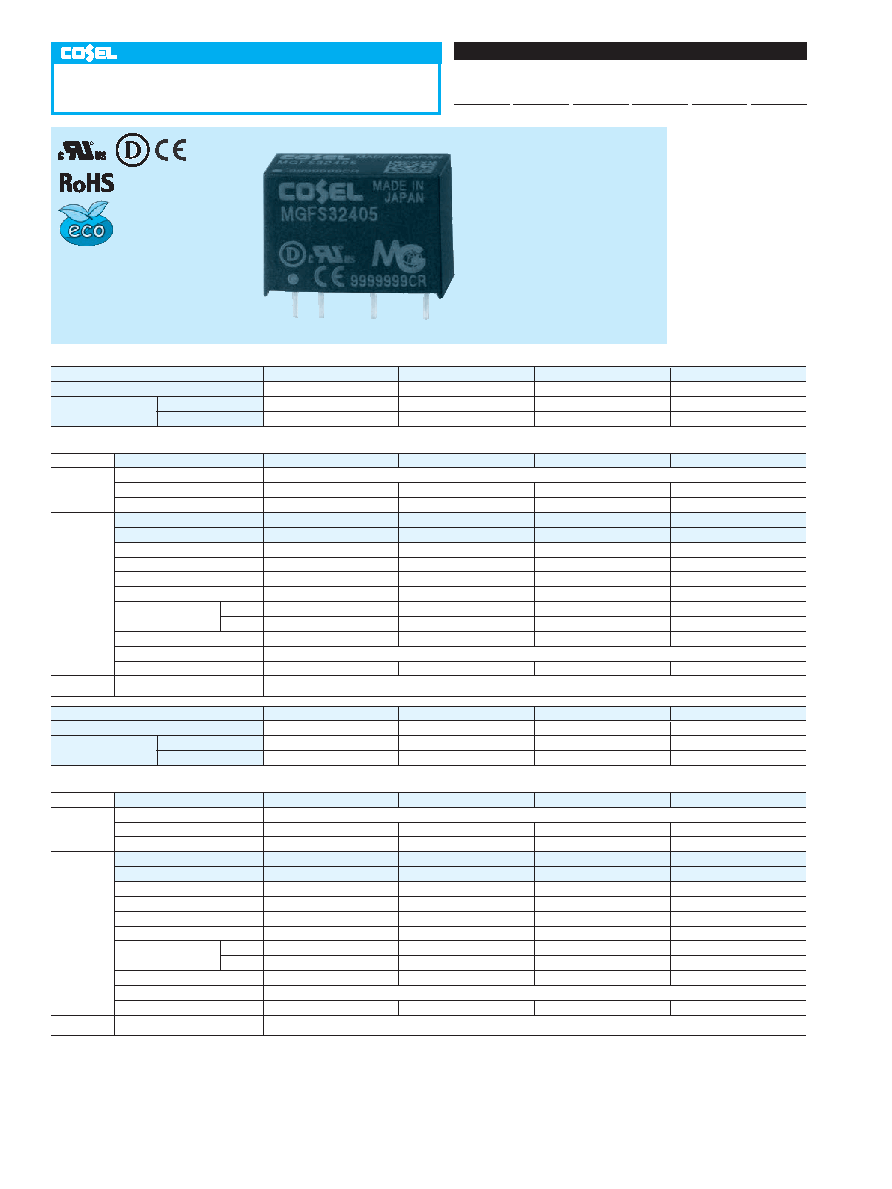

DC-DC Converters PCB Mount Type

MGF

S

3

24

05

-O

Ordering information

1Series name

2Single output

3Output wattage

4Input voltage

5Output voltage

6Optional

Y2: Output voltage

adjustable (+10%, -5%)

R

1

2

3

4

5

6

MODEL

MGFS3243R3

MGFS32405

MGFS32412

MGFS32415

MAX OUTPUT WATTAGE[W]

2.64

3.00

3.00

3.00

DC OUTPUT

VOLTAGE[V]

3.3

5

12

15

CURRENT[A]

0.8

0.6

0.25

0.2

SPECIFICATIONS

MODEL

MGFS3243R3

MGFS32405

MGFS32412

MGFS32415

INPUT

VOLTAGE[V]

DC9 - 36 (Surge voltage 50V,100ms max) (Refer to the instruction manual for input voltage derating.)

CURRENT[A]

*1

0.15typ

0.16typ

0.15typ

0.15typ

EFFICIENCY[%]

*1

78typ

81typ

85typ

84typ

OUTPUT

VOLTAGE[V]

3.3

5

12

15

CURRENT[A]

0.8

0.6

0.25

0.2

LINE REGULATION[mV]

20max

20max

48max

60max

LOAD REGULATION[mV]

20max

20max

48max

60max

RIPPLE[mVp-p]

*2

120max

120max

150max

150max

RIPPLE NOISE[mVp-p]

*2

200max

200max

200max

200max

TEMPERATURE

REGULATION[mV]

-20 to +75C 50max

50max

150max

180max

-40 to +75C 80max

80max

240max

290max

DRIFT[mV]

*3

20max

20max

48max

60max

START-UP TIME[ms]

30max (Minimum input, Io=100%)

OUTPUT VOLTAGE SETTING[V] 3.21 - 3.42

4.90 - 5.21

11.64 - 12.36

14.55 - 15.45

PROTECTION

CIRCUIT

OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically

MODEL

MGFS3483R3

MGFS34805

MGFS34812

MGFS34815

MAX OUTPUT WATTAGE[W]

2.64

3.00

3.00

3.00

DC OUTPUT

VOLTAGE[V]

3.3

5

12

15

CURRENT[A]

0.8

0.6

0.25

0.2

SPECIFICATIONS

MODEL

MGFS3483R3

MGFS34805

MGFS34812

MGFS34815

INPUT

VOLTAGE[V]

DC18 - 76 (Surge voltage 100V,100ms max) (Refer to the instruction manual for input voltage derating.)

CURRENT[A]

*1

0.072typ

0.079typ

0.076typ

0.076typ

EFFICIENCY[%]

*1

77typ

80typ

83typ

83typ

OUTPUT

VOLTAGE[V]

3.3

5

12

15

CURRENT[A]

0.8

0.6

0.25

0.2

LINE REGULATION[mV]

20max

20max

48max

60max

LOAD REGULATION[mV]

20max

20max

48max

60max

RIPPLE[mVp-p]

*2

120max

120max

150max

150max

RIPPLE NOISE[mVp-p]

*2

200max

200max

200max

200max

TEMPERATURE

REGULATION[mV]

-20 to +75C 50max

50max

150max

180max

-40 to +75C 80max

80max

240max

290max

DRIFT[mV]

*3

20max

20max

48max

60max

START-UP TIME[ms]

30max (Minimum input, Io=100%)

OUTPUT VOLTAGE SETTING[V] 3.21 - 3.42

4.90 - 5.21

11.64 - 12.36

14.55 - 15.45

PROTECTION

CIRCUIT

OVERCURRENT PROTECTION Works over 105% of rating and recovers automatically
