SSM2302
Rev. 0 | Page 6 of 20

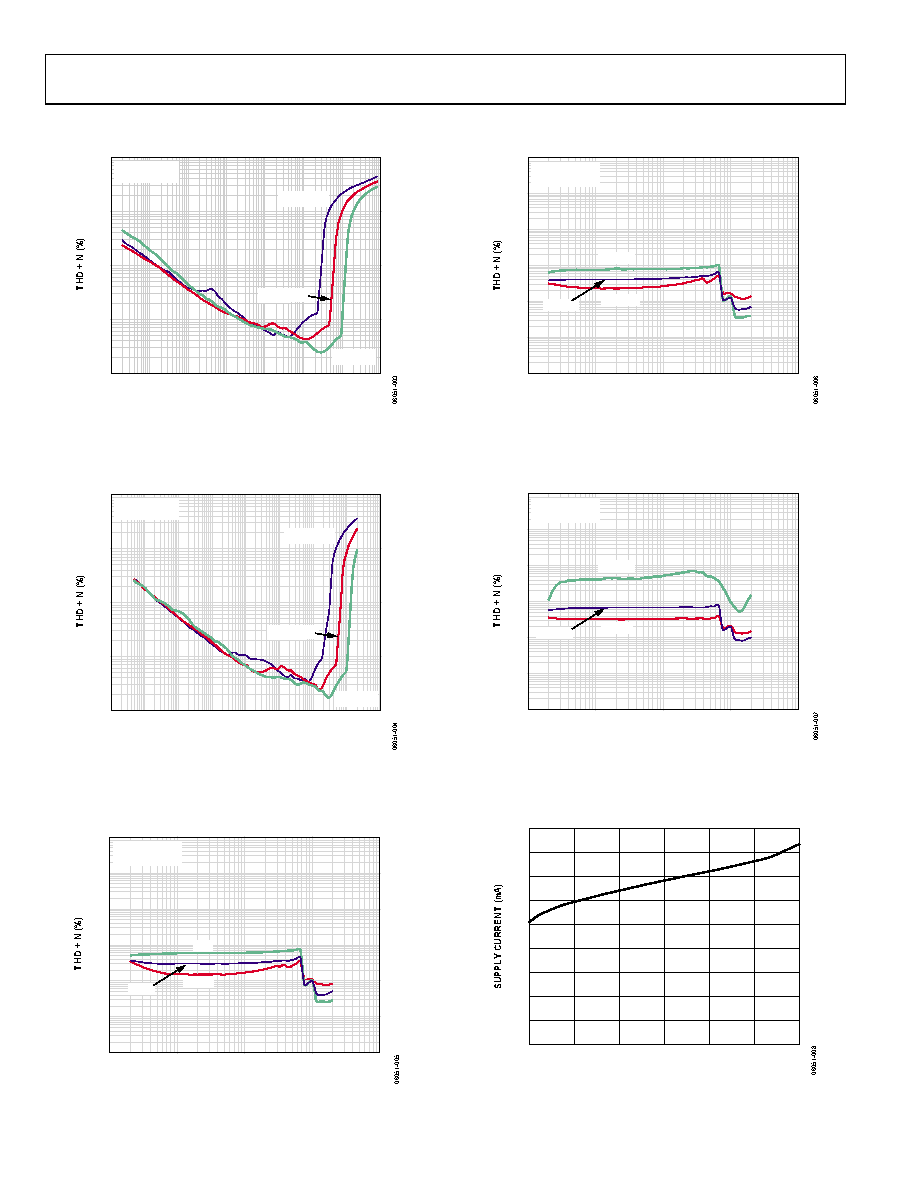

TYPICAL PERFORMANCE CHARACTERISTICS
100
0.01
0.000001
0.0001
0.00001
10
OUTPUT POWER (W)
10
1
0.1
0.001
0.01
0.1
1
RL = 8Ω, 33µH
GAIN = 12dB
VDD = 2.5V
VDD = 3.6V
VDD = 5V
Figure 3. THD + N vs. Output Power into 8 Ω, AV = 12 dB
100
0.01
0.0000001
0.000001
0.0001
0.00001
10
OUTPUT POWER (W)
10
1
0.1
0.001
0.01
0.1
1
RL = 8Ω, 33µH
GAIN = 6dB
VDD = 2.5V
VDD = 3.6V
VDD = 5V
Figure 4. THD + N vs. Output Power into 8 Ω, AV = 6 dB
100
0.0001
10
100k
FREQUENCY (Hz)
VDD = 5V
RL = 8Ω, 33µH
0.5W
0.25W
1W
10
1
0.1
0.01
0.001
100
1k
10k
Figure 5. THD + N vs. Frequency, VDD = 5.0 V
100
0.0001
10
100k
FREQUENCY (Hz)
VDD = 3.6V
RL = 8Ω, 33µH
250mW
125mW
500mW
10
1
0.1
0.01
0.001
100
1k
10k
Figure 6. THD + N vs. Frequency, VDD = 3.6 V
100
0.0001
10
100k
FREQUENCY (Hz)
VDD = 2.5V
RL = 8Ω, 33µH
125mW
75mW
250mW
10
1
0.1
0.01
0.001
100
1k
10k
Figure 7. THD + N vs. Frequency, VDD = 2.5 V
9
0
2.5
5.5
SUPPLY VOLTAGE (V)
8
7
6
5
4
3
2
1
3.0
3.5
4.0
4.5
5.0
Figure 8. Supply Current vs. Supply Voltage, No Load
