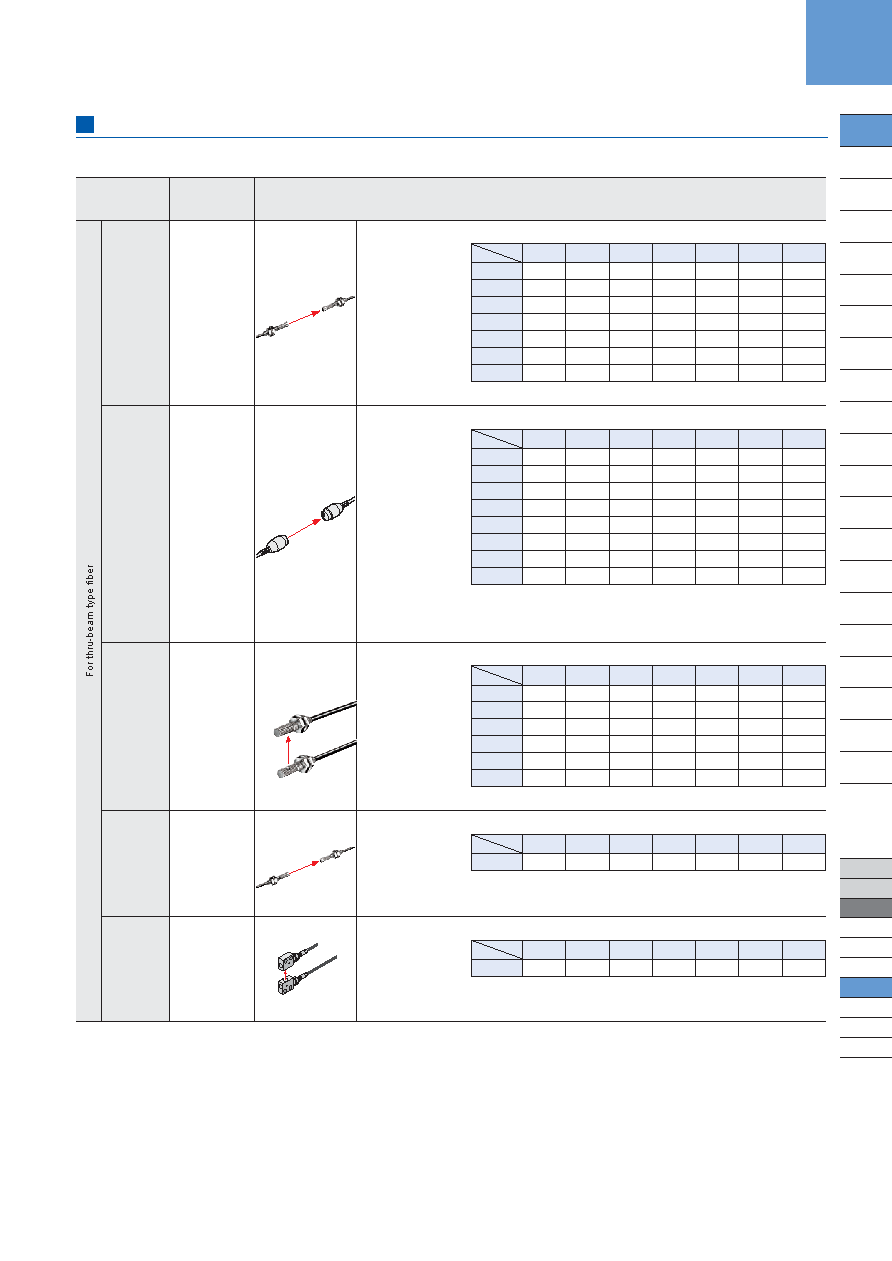

FIBER OPTIONS

Lens (for thru-beam type fiber)

Designation

Model No.

Description

Expansion

lens

(Note 1)

FX-LE1

Increases the sensing

range by 5 times or

more.

• Ambient

temperature:

–60 to +350 °C

–76 to +662 °F

(Note 5)

• Beam dia:

ø3.6 mm

ø0.142 in

Sensing range for red LED type (mm) [Lens on both sides] (Note 2)

Mode

Fiber

U-LG LONG STDF STD

FAST

S-D

H-SP

FT-43

3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 2,900

2,100

1,300

1,200

FT-42

3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 2,800

1,600

1,600

FT-45X 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,500

FT-R40 3,600 (Note 3) 3,600 (Note 3) 3,500

3,400

2,700

1,500

1,500

FT-H35-M2 3,500 (Note 3) 3,500 (Note 3) 2,500

2,000

1,500

750

700

FT-H20W-M1 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,300

900

500

400

FT-H20-M1 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,100

900

600

Super-

expansion

lens

(Note 1)

FX-LE2

Tremendously

increases the sensing

range with large

diameter lenses.

• Ambient

temperature:

–60 to +350 °C

–76 to +662 °F

(Note 5)

• Beam dia:

ø9.8 mm

ø0.386 in

Sensing range for red LED type (mm) [Lens on both sides] (Note 2)

Mode

Fiber

U-LG LONG STDF STD

FAST

S-D

H-SP

FT-43

3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3)

FT-42

3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3)

FT-45X

1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3)

FT-R40 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3) 3,600 (Note 3)

FT-H35-M2 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3)

FT-H20W-M1 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,500 1,600 (Note 3)

FT-H20-M1 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3) 1,600 (Note 3)

FT-H13-FM2 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3) 3,500 (Note 3)

Side-view

lens

FX-SV1

Beam axis is bent by

90°.

• Ambient

temperature:

–60 to +300 °C

–76 to +572 °F

(Note 5)

• Beam dia:

ø2.8 mm

ø0.110 in

Sensing range for red LED type (mm) [Lens on both sides] (Note 2)

Mode

Fiber

U-LG LONG STDF STD

FAST

S-D

H-SP

FT-43

1,900

1,200

840

580

420

250

240

FT-42

2,100

1,400

870

640

440

210

210

FT-45X 1,600 (Note 3) 1,600 (Note 3)

840

650

450

220

220

FT-H35-M2

840

550

370

280

200

90

90

FT-H20W-M1

400

310

180

140

100

50

50

FT-H20-M1

840

550

370

280

200

90

90

Expansion

lens for

vacuum

fiber

(Note 1)

FV-LE1

Sensing range increases

by 4 times or more.

• Ambient temperature:

–60 to +350 °C

–76 to +662 °F (Note 5)

• Beam dia:

ø3.6 mm

ø0.142 in

Sensing range for red LED type (mm) [Lens on both sides] (Note 2, 4)

Mode

Fiber

U-LG LONG STDF STD

FAST

S-D

H-SP

FT-H30-M1V-S 1,600

1,200

650

450

300

150

200

Vacuum

resistant

side-view

lens

(Note 1)

FV-SV2

Beam axis is bent by

90°.

• Ambient temperature:

–60 to +300 °C

–76 to +572 °F (Note 5)

• Beam dia:

ø3.7 mm

ø0.146 in

Sensing range for red LED type (mm) [Lens on both sides] (Note 2, 4)

Mode

Fiber

U-LG LONG STDF STD

FAST

S-D

H-SP

FT-H30-M1V-S 1,600

1,200

650

450

300

150

200

Notes: 1) Be careful sure to use it only after you have adjusted it sufficiently when installing the thru-beam type fiber equipped with the expansion lens, as the

beam envelope becomes narrow and alignment is difficult.

2) The sensing ranges are the values for red LED type amplifier. Please contact our office for details on sensing ranges for other types of amplifiers.

3) The fiber cable length practically limits the sensing range.

4) The fiber cable length for the

FT-H30-M1V-S is 1 m 3.281 ft. The sensing ranges in U-LG and LONG modes take into account the length of the FT-J8

atmospheric side fiber.

5) Refer to p.15, p18, p.33 and p.35 for the ambient temperatures of fibers to be used in combination.

Refer to p. 69~ for details of lens dimensions.
