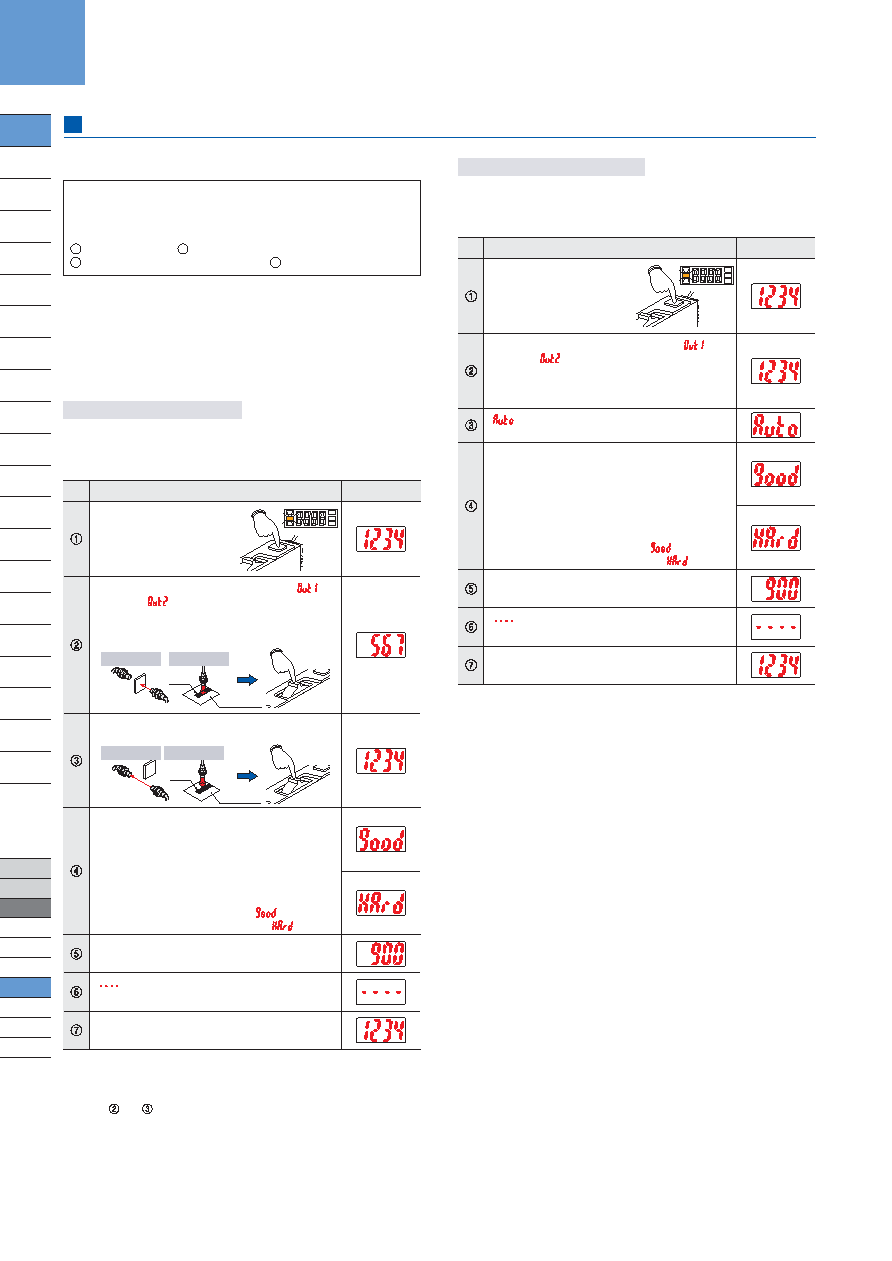

For FX-305(P)

The

FX-305(P) is equipped with two independent outputs, but

the items that can be set in output 1 and output 2 respectively

are only the following.

The items other than those are common.

1

Threshold value 2 Output operation

3

Timer operation and Timer period 4 Sensing mode

Teaching

• The threshold values can be set by 2-point teaching, limit

teaching, full-auto teaching or window comparator mode

(1-point, 2-point, 3-point teaching) [only for

FX-305(P)],

when the MODE indicator / TEACH (yellow) lights up.

• This is the method of setting the threshold value by teaching

two levels, corresponding to the object present and object

absent conditions. Normally, setting is done by this method.

Step

Description

Display

Set the fiber within the

sensing range.

Press MODE key to light

up MODE indicator /

TEACH (yellow).

For

FX-305(P), select either Output 1 “

” or

Output 2 “

” beforehand, press jog switch

in the object present condition.

If the teaching is accepted, the read incident

light intensity blinks in the digital display.

Beam

blocked condition

Thru-beam type

Reflective type

Mark

Background

MODE indicator / TEACH (yellow) blinks.

Press jog switch in the object absent condition.

Beam

incident condition

Mark

Background

Thru-beam type Reflective type

If the teaching is accepted, the read incident

light intensity blinks in the digital display

and the threshold value is set at the mid-

value between the incident light intensities

in the object present and the object absent

conditions. After this, the judgment on the

stability of sensing is displayed.

•

In case stable sensing is possible: “

” is displayed.

•

In case stable sensing is not possible: “

” blinks.

The threshold value is displayed.

“

” blinks in the digital display.

(only

FX-301B/G/H)

The incident light intensity appears in the

digital display and the setting is complete.

Notes: 1) Do not move or bend the fiber cable after the sensitivity setting.

Detection may become unstable.

2) In case a reflective-type fiber is used, maximum sensitivity will be

set if the jog switch is pushed while in no work status in procedure

and .

Step

Description

Display

Set the fiber within the

sensing range.

Press MODE key to light

up MODE indicator /

TEACH (yellow).

For

FX-305(P), select either Output 1 “

” or

Output 2 “

” beforehand, press the jog switch

continuously for 0.5 sec. or more with the object

moving on the assembly line. (The incident light

intensity is displayed during sampling.)

“

” is displayed on the digital display. Release

the jog switch when the object has passed.

If the teaching is accepted, the read incident

light intensity blinks in the digital display

and the threshold value is set at the mid-

value between the incident light intensities

in the object present and the object absent

conditions. After this, the judgment on the

stability of sensing is displayed.

•

In case stable sensing is possible: “

” is displayed.

•

In case stable sensing is not possible: “

” blinks.

The threshold value is displayed.

“

” blinks in the digital display.

(only

FX-301B/G/H)

The incident light intensity appears in the

digital display and the setting is complete.

Notes: 1) The threshold value’s shift amount can be selected in PRO mode.

Refer to the “PRO Mode Operation Guide” for more details

pertaining to setting instructions. (Increments of 5 % between –45

and 45 % for setting possible. 0 % default.)

2) Do not move or bend the fiber cable after the sensitivity setting.

Detection may become unstable.

In case of 2-point teaching

• Full auto-teaching is used when it is desired to set the

threshold value without stopping the assembly line, with

the object in the moving condition.

In case of full auto-teaching

Refer to p.1458~ for general precautions and to the “PRO mode operation guide”

on our website for details pertaining to operating instructions for the amplifier.

PRECAUTIONS FOR PROPER USE
