SC-604

Data sheet

P/N 80-0208-B

The data memory is internal static RAM. The RAM is configured in 640 17-bit words. All memories are designed

to consume minimum power at a given system clock and algorithm acquisition frequency.

A flexible clock generation system enables the software to control the clock over a wide frequency range. The

implementation uses a phase-locked loop (PLL) circuit that drives the processor clock at a selectable frequency

between the minimum and maximum achievable. Selectable frequencies for the processor clock are spaced

apart in 65.536-kHz steps. The PLL clock-reference is also selectable; either a resistor-trimmed oscillator or a

crystal-referenced oscillator may be used. Internal and external clock sources are controlled separately to

provide different levels of power management.

The periphery consists of two 8-bit-wide general-purpose I/O ports when operating in master mode, or four

general-purpose I/O pins in slave mode. In the master mode, the bidirectional I/O can be configured under

software control as either high-impedance inputs or as totem-pole output. They are controlled via addressable

I/O registers. These features make the input port especially useful as a key-scan interface. Slave mode consists

of four general-purpose I/O, four control pins, and eight bidirectional data pins.

A simple one-bit comparator is also included in the periphery. The comparator is enabled by a control register,

and its access is shared with two pins in one general-purpose I/O port. Rounding out the SC-604 periphery is a

built-in pulse-density-modulated DAC (digital-to-analog converter) with direct speaker-drive capability. The

following block diagram gives an overview of the SC-604functionality.

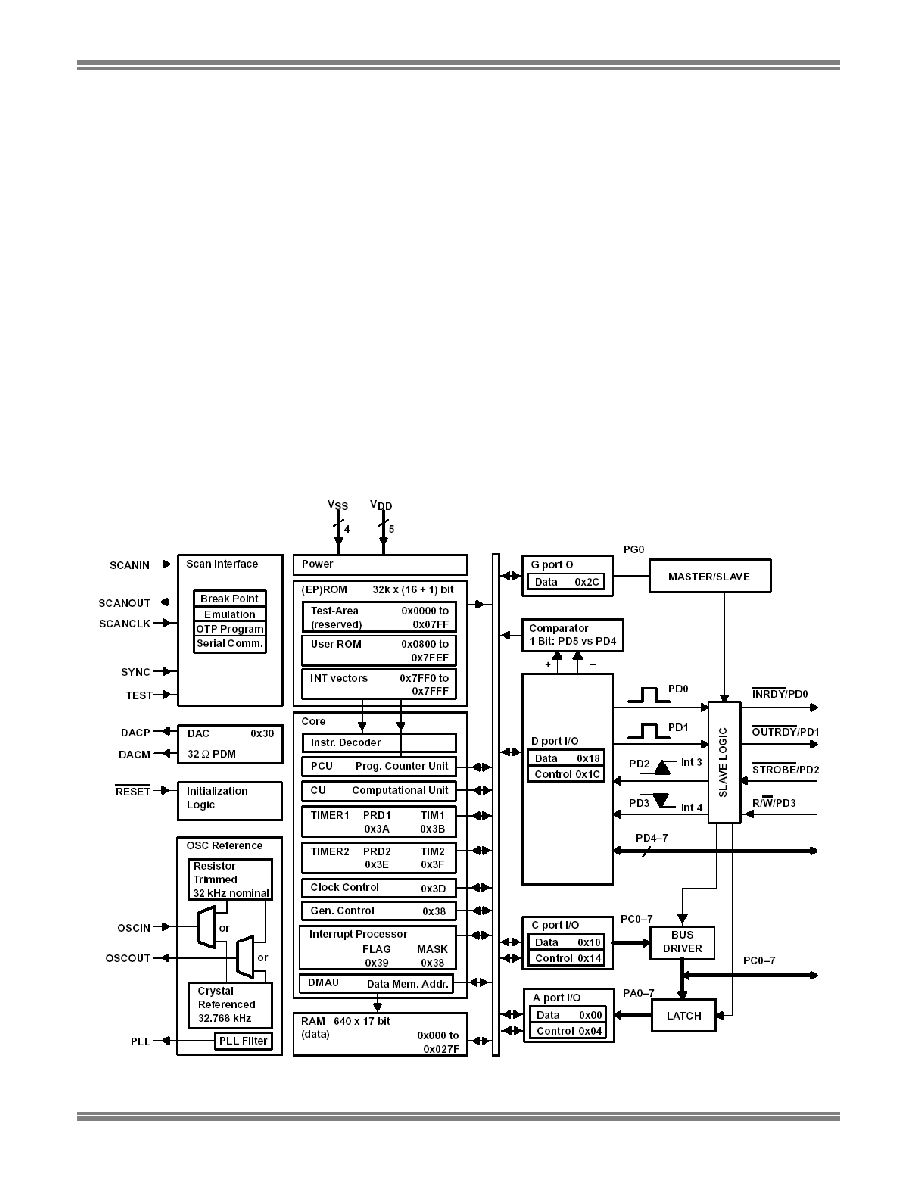

Functional block diagram
