ADCMP604/ADCMP605

Rev. 0 | Page 8 of 16

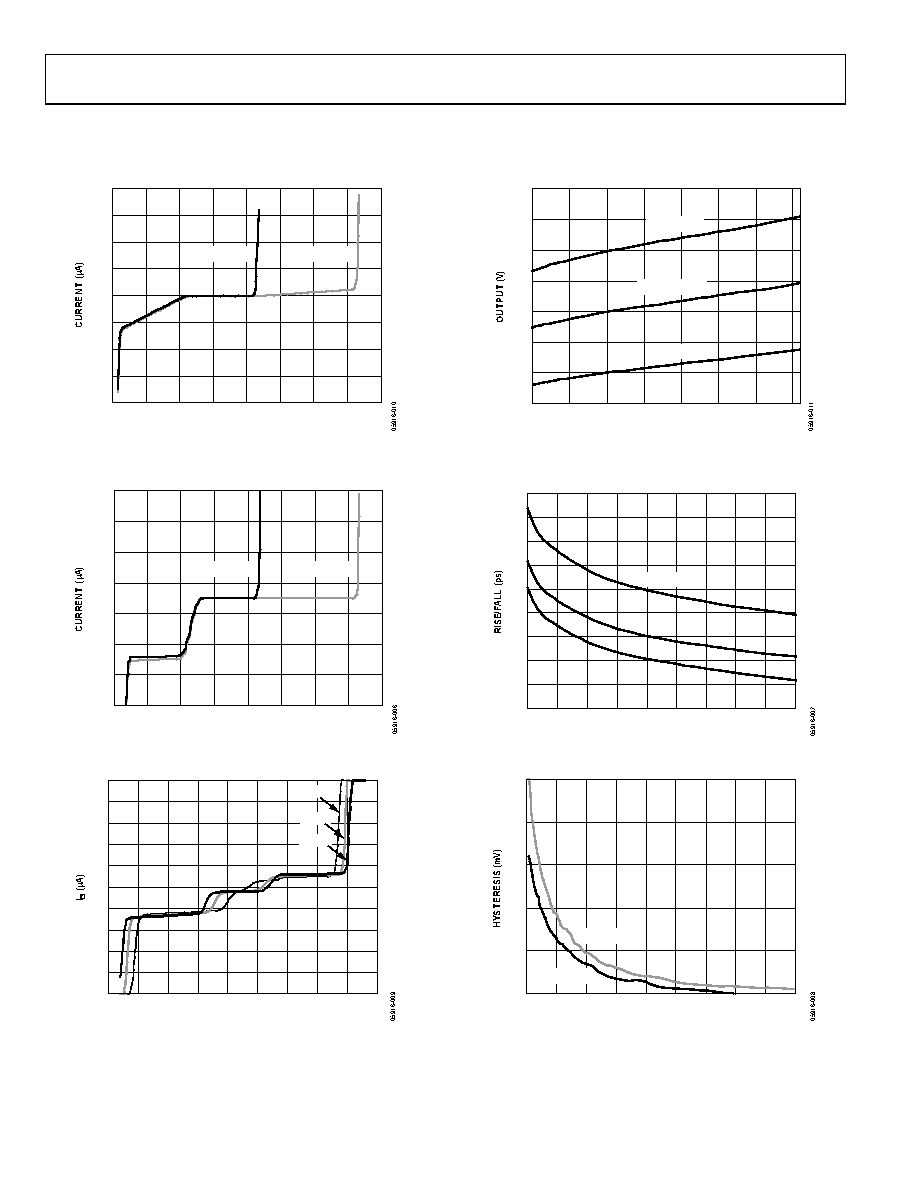

TYPICAL PERFORMANCE CHARACTERISTICS

VCCI = VCCO = 2.5 V, TA = 25°C, unless otherwise noted.

LE/HYS PIN (V)

–800

–600

–400

–200

200

400

600

800

–1

VCC = 5.5V

VCC = 2.5V

Figure 5. LE/HYS I/V Curve

SDN PIN (V)

–150

–100

–50

100

150

200

–1

VCC = 5.5V

VCC = 2.5V

Figure 6. SDN I/V Curve

–10

–8

–6

–4

–2

–1.0

–0.5

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

VCM AT VCC = 2.5V

+125°C

–40°C

+25°C

Figure 7. Input Bias Current vs. Input Common-Mode Voltage

0.90

1.00

1.10

1.20

1.30

1.40

1.50

1.60

2.4

3.4

4.4

5.4

2.9

3.9

4.9

5.9

VCC (V)

OUTPUT HI

OUTPUT LO

OUTPUT VCM

Figure 8. Output Level vs. VCC

400

450

500

550

600

650

700

750

800

850

2.40

2.80

3.20

3.60

4.00

4.40

4.80

5.20

5.60

6.00

VCCO (Volts)

+125°C

+25°C

–40°C

Figure 9. Output Rise/Fall Time vs. VCCO

100

150

200

250

100

150

200

250

300

350

400

450

500

HYSTERESIS RESISTOR (kΩ)

VCC = 2.5V

VCC = 5.5V

Figure 10. Hysteresis vs. RHYS
