SSM2306CPZ-R2 datasheet(9/16 Pages) AD

9 / 16 page

SSM2306

Rev. 0 | Page 9 of 16

0.2

0.4

0.6

0.8

1.0

1.2

1.4

OUTPUT POWER (W)

VDD = 5V

RL= 8Ω, 33µH

FOR BOTH CHANNELS

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

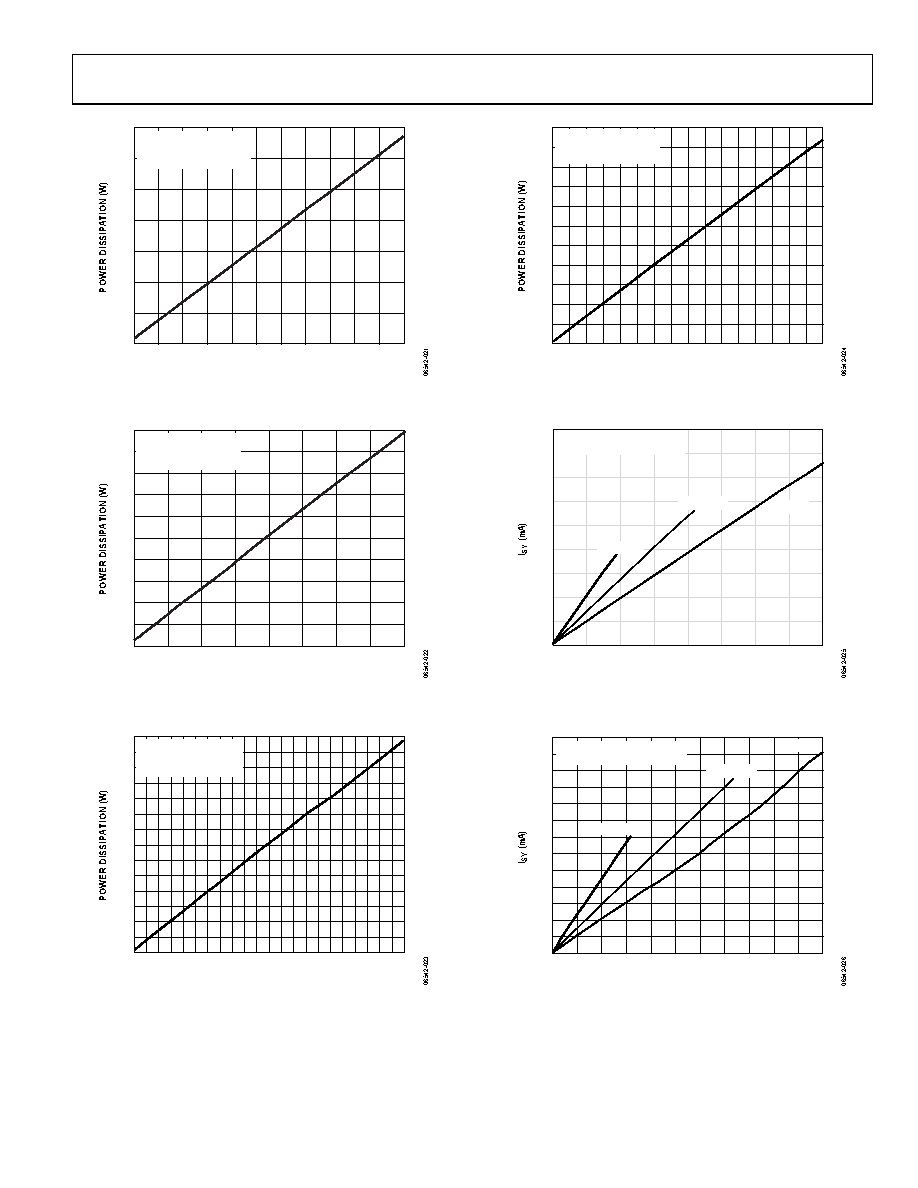

Figure 21. Power Dissipation vs. Output Power at VDD = 5 V, RL = 8 Ω

0.10.20.3

0.40.50.60.70.8

OUTPUT POWER (W)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

VDD = 3.6V

RL = 8Ω, 33µH

FOR BOTH CHANNELS

Figure 22. Power Dissipation vs. Output Power at VDD = 3.6 V, RL = 8 Ω

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

2.4

2.6

2.8

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

OUTPUT POWER (W)

VDD = 5V

RL = 4Ω, 33µH

FOR BOTH CHANNELS

Figure 23. Power Dissipation vs. Output Power at VDD = 5 V, RL = 4 Ω

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

0 0.10.20.30.40.50.60.70.80.91.01.11.21.31.41.51.6

OUTPUT POWER (W)

VDD = 3.6V

RL = 4Ω, 33µH

FOR BOTH CHANNELS

Figure 24. Power Dissipation vs. Output Power at VDD = 3.6 V, RL = 4 Ω

100

200

300

400

500

600

700

800

900

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

PO (W)

VDD = 5V

VDD = 3.6V

VDD = 2.5V

RL = 8Ω, 33µH

ISY IS FOR BOTH CHANNELS

Figure 25. Supply Current vs. Output Power into 8 Ω

100

200

300

400

500

600

700

800

900

1000

1100

1200

1300

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.2

PO (W)

VDD = 5V

VDD = 3.6V

VDD = 2.5V

RL = 4Ω, 33µH

ISY IS FOR BOTH CHANNELS

Figure 26. Supply Current vs. Output Power into 4 Ω
