SE2425U
RangeCharger
TM 2.4 GHz Bluetooth Power Amplifier IC
Preliminary Information
165-DST-01 Rev 1.3 Apr-05-2006
Confidential
2 of 10
QA040506

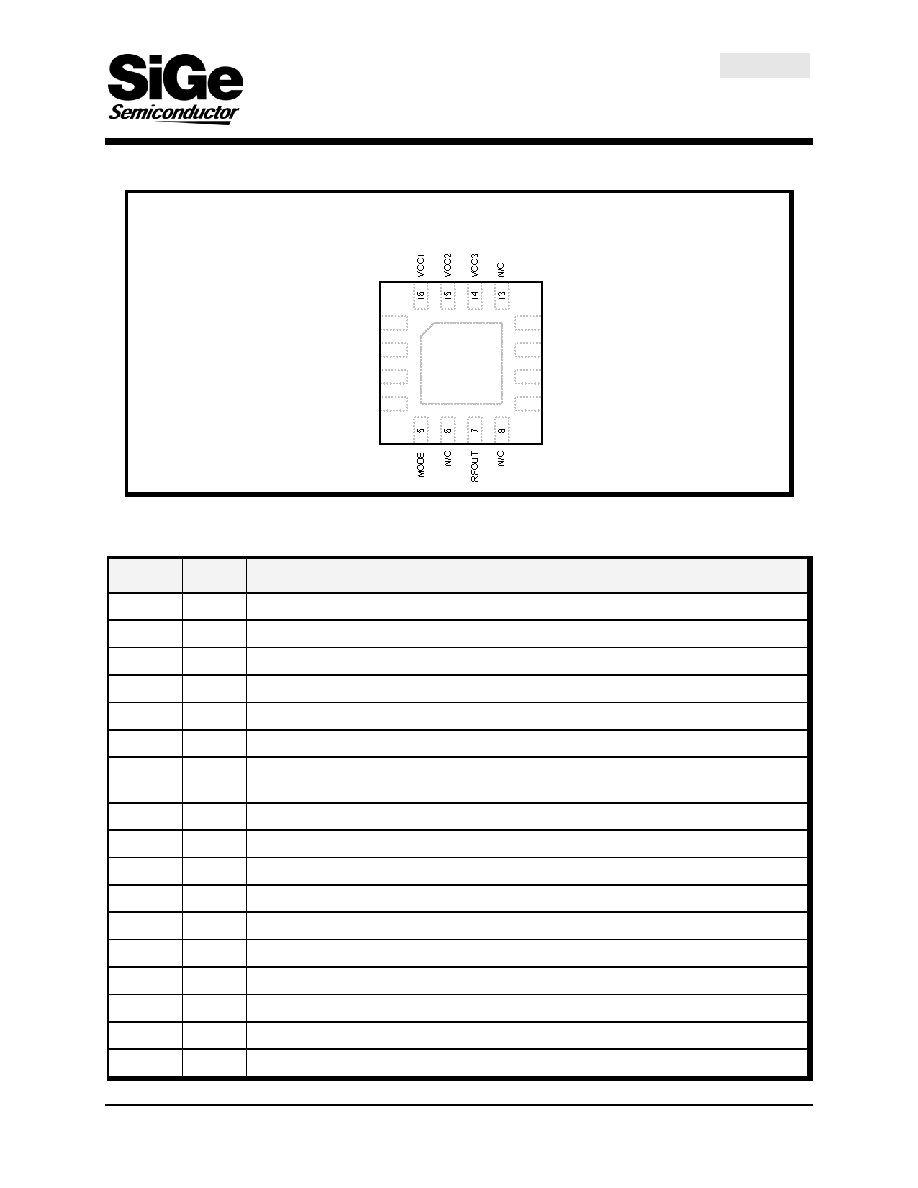

Pin-Out Diagram
4
1
2
3
12
11
10
9
SE2425U
Top View
VCC0
N/C
EN
RFIN
N/C
CAP
N/C
N/C
GND Pad
Figure 2: SE2425U Pin-Out
Pin Out Description
Pin No.
Name
Description
1
RFIN
Power amplifier RF input, DC blocking is required
2
VCCO
Bias Power Supply
3
N/C
Do Not Connect
4
EN
PA Enable
5
MODE
Mode switch
6
N/C
Do Not Connect
7
RFOUT
RF output
Note: Requires external DC blocking and optional shunt capacitor (typically 0p75 0402)
8
N/C
Do Not Connect
9
N/C
Do Not Connect
10
CAP
Matching capacitor (typically 1p3 0402)
11
N/C
Do Not Connect
12
N/C
Do Not Connect
13
N/C
Do Not Connect
14
VCC3
Stage 3 collector supply voltage
15
VCC2
Stage 2 collector supply voltage
16
VCC1
Stage 1 collector supply voltage
GND Pad
GND
Heat slug Ground Pad
