SE2425U
RangeCharger
TM 2.4 GHz Bluetooth Power Amplifier IC
Preliminary Information
165-DST-01 Rev 1.3 Apr-05-2006
Confidential
6 of 10
QA040506

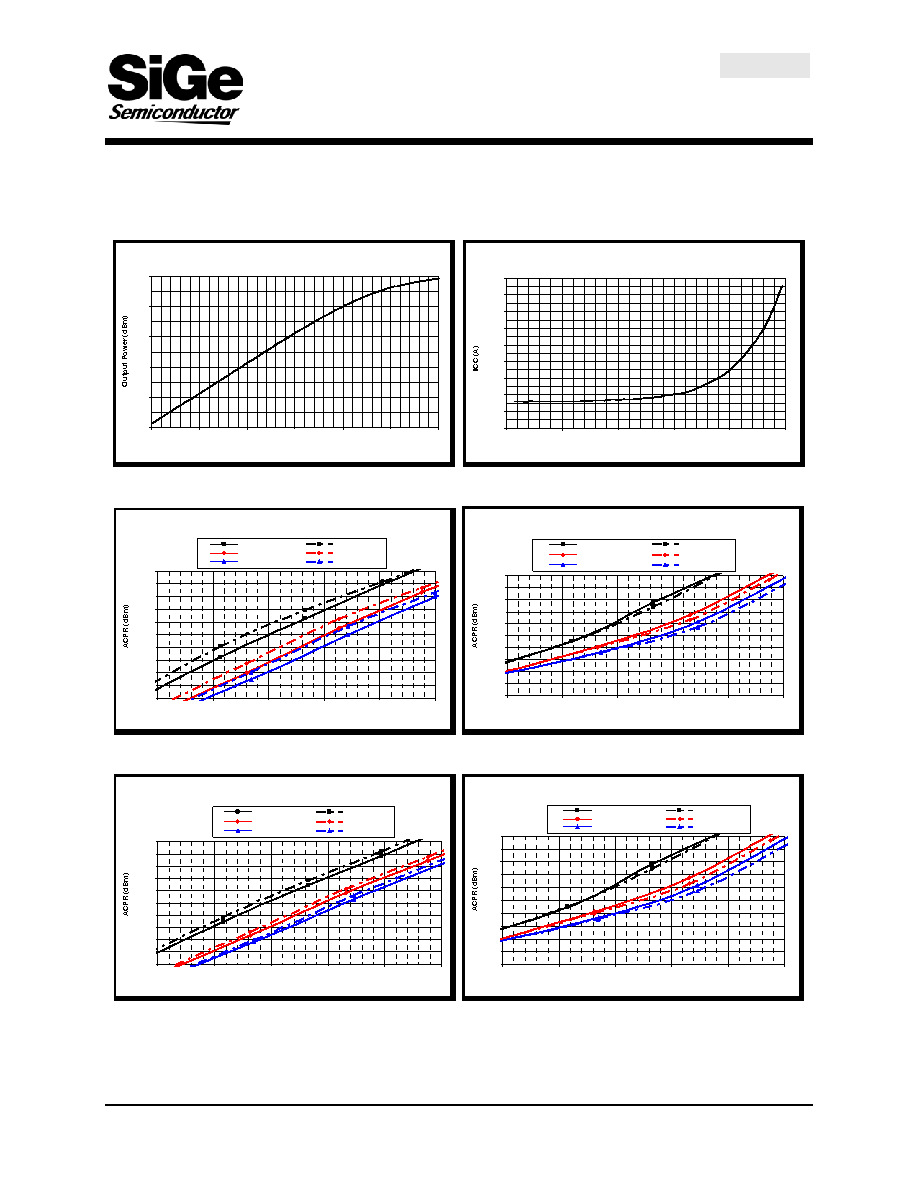

High Mode
Test Conditions: VEN = VCC0 = VCC1 = VCC2 = VCC3 = 3.3 V, MODE = High, TC = 25
°C, f = 2.45 GHz, as measured on
SiGe’s SE2425U-EV1 evaluation board otherwise noted
Output Power vs. Input Power
(25 C, 3.3 V, 2.45 GHz, High Mode)
0
5
10
15
20
25
-30-25
-20-15
-10
-5
0
Input Pow er (dBm )
Icc vs. Output Power
(25 C, 3.3 V, 2.45 GHz, High Mode)
0.05
0.07
0.09
0.11
0.13
0.15
0.17
0.19
0.21
0.23
0
5
10
15
20
25
Output Pow er (dBm )
Figure 6: Typical Performance Data in High Mode (a) Output Power vs. Input Power , (b) Current vs. Output
Power
2MBit ACPR 2MHz Offset vs. Output Power over Voltage
(25 C, 2.45 GHz, High Mode)
-34
-32
-30
-28
-26
-24
-22
-20
-18
-16
-14
16
17
18
19
20
21
Output Pow er (dBm )
2.7V, -2MHz
2.7V, +2MHz
3.3V, -2MHz
3.3V, +2MHz
3.6V, -2MHz
3.6V, +2MHz
3MBit ACPR 3MHz Offset vs. Output Power over Voltage
(25 C, 2.45 GHz, High Mode)
-56
-54
-52
-50
-48
-46
-44
-42
-40
-38
-36
16
17
18
19
20
21
Output Pow er (dBm )
2.7V, -3MHz
2.7V, +3MHz
3.3V, -3MHz
3.3V, +3MHz
3.6V, -3MHz
3.6V, +3MHz
Figure 7: Typical 2 Mbps Enhanced Data Rate (EDR) Performance Data in High Mode (a) ACPR @ 2 MHz
Offset vs. Output Power over Voltage (b) ACPR @ 3 MHz Offset vs. Output Power over Voltage
3MBit ACPR 2MHz Offset vs. Output Power over Voltage
(25 C, 2.45 GHz, High Mode)
-34
-32
-30
-28
-26
-24
-22
-20
-18
-16
-14
16
17
18
19
20
21
Output Pow er (dBm )
2.7V, -2MHz
2.7V, +2MHz
3.3V, -2MHz
3.3V, +2MHz
3.6V, -2MHz
3.6V, +2MHz
3MBit ACPR 3MHz Offset vs. Output Power over Voltage
(25 C, 2.45 GHz, High Mode)
-56
-54
-52
-50
-48
-46
-44
-42
-40
-38
-36
16
17
18
19
20
21
Output Pow er (dBm )
2.7V, -2MHz
2.7V, +2MHz
3.3V, -2MHz
3.3V, +2MHz
3.6V, -2MHz
3.6V, +2MHz
Figure 8: Typical 3 Mbps Enhanced Data Rate (EDR) Performance Data in High Mode (a) ACPR @ 2 MHz
Offset vs. Output Power over Voltage (b) ACPR @ 3 MHz Offset vs. Output Power over Voltage
