CLM2D-RCC/ACC: PLCC4 RED & AMBER SMD LEDs

© 2021-2024 Cree LED. The information in this document is subject to change without notice. Cree®, the Cree logo and the Cree LED logo are registered

trademarks of Cree LED.

CLD-CT1409

REV 6

8

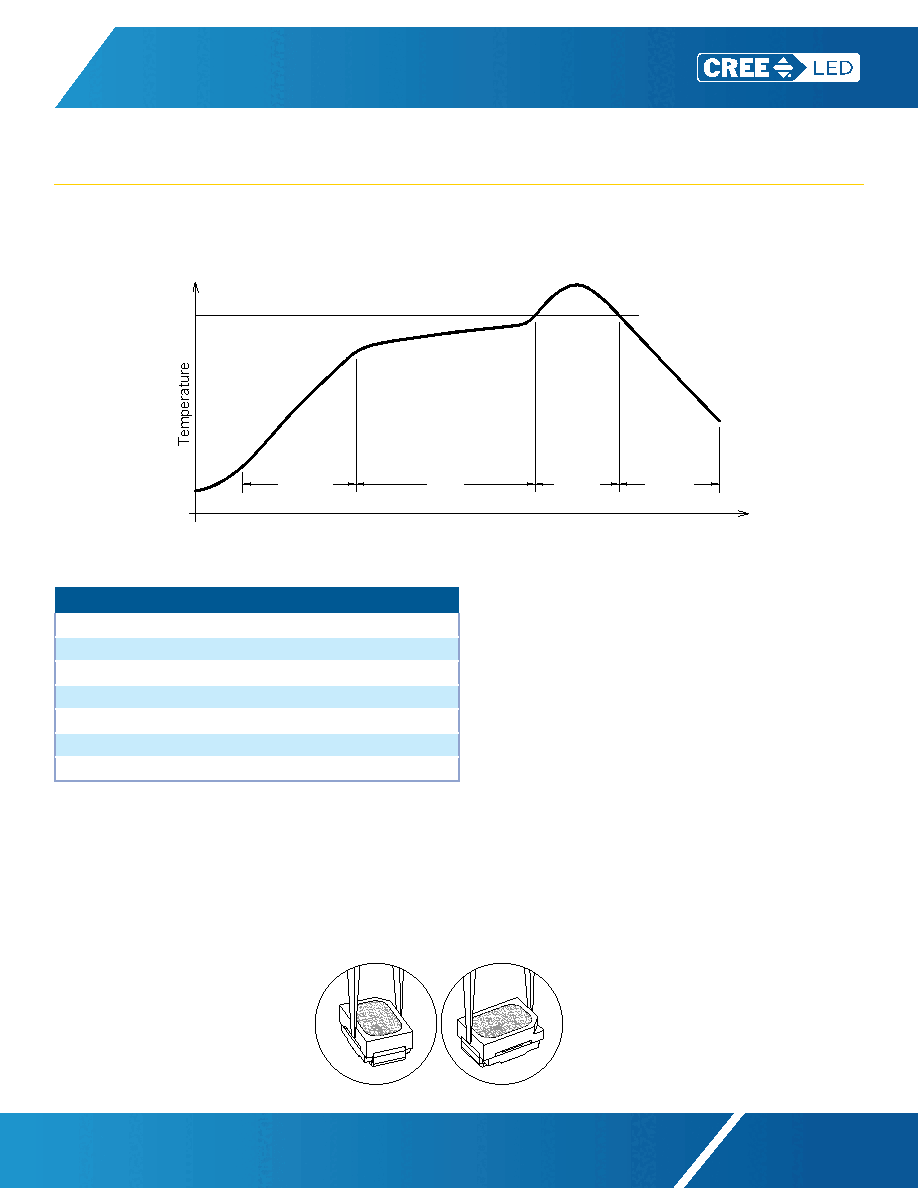

REFLOW SOLDERING

• The CLM2D-RPC/APC is rated as a MSL 5a product.

• The recommended floor life out of bag is 24hrs.

• The temperature profile is as below.

Use only with CLM2D-RPC/APC

Solder

Average ramp-up rate = 4 ºC/second max.

Soak temperature = 150ºC-200ºC

Soak time = 120 seconds max.

Duration above 217 ºC = 60 seconds max.

Peak temperature = 250ºC max

Time within 5 ºC of peak temperature = 10 seconds max.

Ramp-down rate = 6 ºC/second max.

• The packaging sizes of these SMD products are very small and the resin is still soft after solidification. Users are required to handle

with care. Never touch the resin surface of SMD products.

• To avoid damaging the product’s surface and interior device, it is recommended to choose a special nozzle to pick up the SMD

products during the process of SMT production. If handling is necessary, take special care when picking up these products. The

following method is necessary:

• Please refer to the HB LED Lamp Soldering & Handling document for information about how to use this LED product safely.

Document No.: COTCO-05-0057

Rev. NO.

:

13

6/9

Melting-point

Pre-heat

Soak

Reflow

Cooling

Time

Use all SMD besides LP6-NPP1-01-N1

Solder = Sn63-Pb37

Solder = Lead-free

Average ramp-up rate = 4ºC/s max.

Average ramp-up rate = 4ºC/s max

Preheat temperature = 100ºC ~150ºC

Preheat temperature = 150ºC ~200ºC

Preheat time = 100s max.

Preheat time = 100s max.

Ramp-down rate = 6ºC/s max.

Ramp-down rate = 6ºC/s max.

Peak temperature = 230ºC max.

Peak temperature = 250ºC max.

Time within 5ºC of actual Peak Temperature = 10s max.

Time within 5ºC of actual Peak Temperature = 10s max.

Duration above 183ºC is 80s max.

Duration above 217ºC is 80s max.

Only use LP6-NPP1-01-N1

[13]

Solder = Low Lead-free

Average ramp-up rate = 3ºC/s max.

Preheat temperature = 130ºC ~170ºC

Preheat time = 120s max.

Ramp-down rate = 6ºC/s max.

Peak temperature = 213ºC max.

Time within 3ºC of actual Peak Temperature = 25s max.

Duration above 200ºC is 40s max.

Recommended solder pad design for heat dissipation (2-pin SMD LED):

7.0

2.6



Recommended solder pad design for heat dissipation (4-pin SMD LED)

Document No.: CREE-05-0057

Rev. NO.

:

16

9/9

pick up SMD products during the process of SMT production . If handling is necessary, it should take more

careful to pick up these products. The following two methods are necessary :

Fig. 1a: For Small Top SMD

Fig. 1b: For Mini side 0.8mm SMD



For Small Top SMD series , it is recommended to use rubber material Nozzle to pick up SMD products .Two

figure size for reference :

a.) Circular Nozzle: inner diameter: Ø1.8mm+/-0.05mm, outer diameter: Ø2.3mm+/-0.05mm.

b.) Rectangle Nozzle: inner size: 1.3mm x 2.3mm, outer size > SMD size.

6. Electrostatic Discharge and Surge current



Electrostatic discharge (ESD) or surge current (EOS) may damage SMD LED.



Precautions such as ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling of SMD LED.



All devices, equipment and machinery must be properly grounded.



It is recommended to perform electrical test to screen out ESD failures at final inspection.



It is important to eliminate the possibility of surge current during circuitry design

7. Heat Management

Heat management of SMD LED must be taken into consideration during the design stage of SMD LED application. The

current should be de-rated appropriately by referring to the de-rating curve attached on each product specification.
