ADA4938-1/ADA4938-2
Data Sheet
Rev. B | Page 12 of 26
1
10
100
–40
–120
–110
–100
–90
–80
–70
–60
–50
FREQUENCY (MHz)
HD2, VS = +5V
HD3, VS = +5V
HD2, VS = ±5V
HD3, VS = ±5V

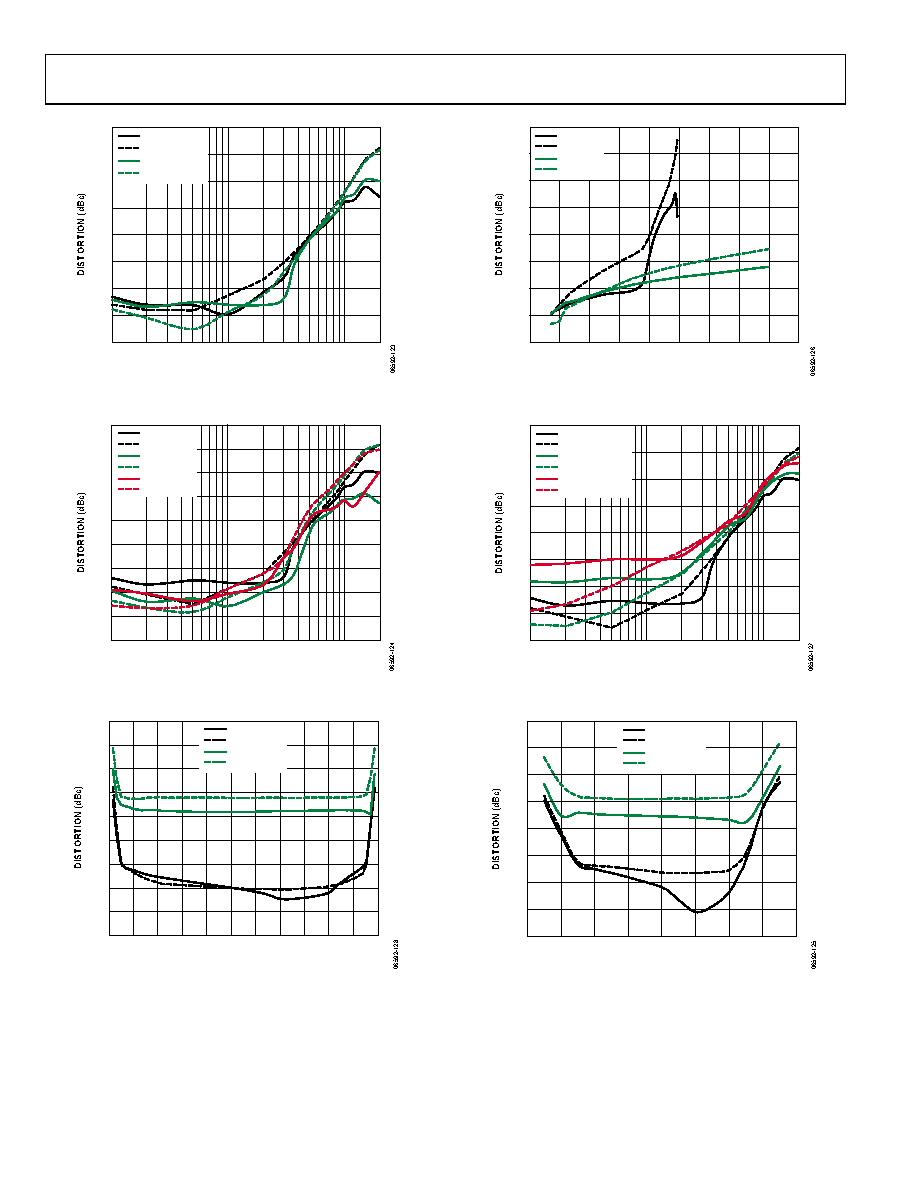

Figure 25. Harmonic Distortion vs. Frequency and Supply Voltage
1
10
100
–40
–130
–120
–100
–110
–90
–80
–70
–60
–50
FREQUENCY (MHz)
HD2, G = +1
HD3, G = +1
HD2, G = +2
HD3, G = +2
HD2, G = +5
HD3, G = +5
Figure 26. Harmonic Distortion vs. Frequency and Gain
–3.3 –2.7 –2.1 –1.5 –0.9 –0.3 0.3
0.9
1.5
2.1
2.7
3.3
–40
–130
–120
–110
–100
–90
–80
–70
–60
–50
VOCM (V)
HD2, 10MHz
HD3, 10MHz
HD2, 70MHz
HD3, 70MHz
Figure 27. Harmonic Distortion vs. VOCM and Frequency
09
8
7
6
5
4
3
12
–40
–120
–110
–100
–90
–80
–70
–60
–50
VOUT, dm (V)
HD2, +5V
HD3, +5V
HD2, ±5V
HD3, ±5V
Figure 28. Harmonic Distortion vs. VOUT and Supply Voltage
1
10
100
–40
–120
–110
–100
–90
–80
–70
–60
–50
FREQUENCY (MHz)
HD2, RL = 1kΩ
HD3, RL = 1kΩ
HD2, RL = 200Ω
HD3, RL = 200Ω
HD2, RL = 100Ω
HD3, RL = 100Ω
Figure 29. Harmonic Distortion vs. Frequency for Various Loads
1.7
3.3
3.1
2.9
2.7
2.5
2.3
2.1
1.9
–40
–120
–110
–100
–90
–80
–70
–60
–50
VOCM (V)
HD2, 10MHz
HD3, 10MHz
HD2, 70MHz
HD3, 70MHz
Figure 30. Harmonic Distortion vs. VOCM and Frequency, VS = 5 V
