AP8012H
13/F, Building C, Wangzhuang Technology Innovation Center, Longshan Road,New District, Wuxi Tel: +86(510)85217718 http://www.chipown.com Rev.A 1801 8 / 10

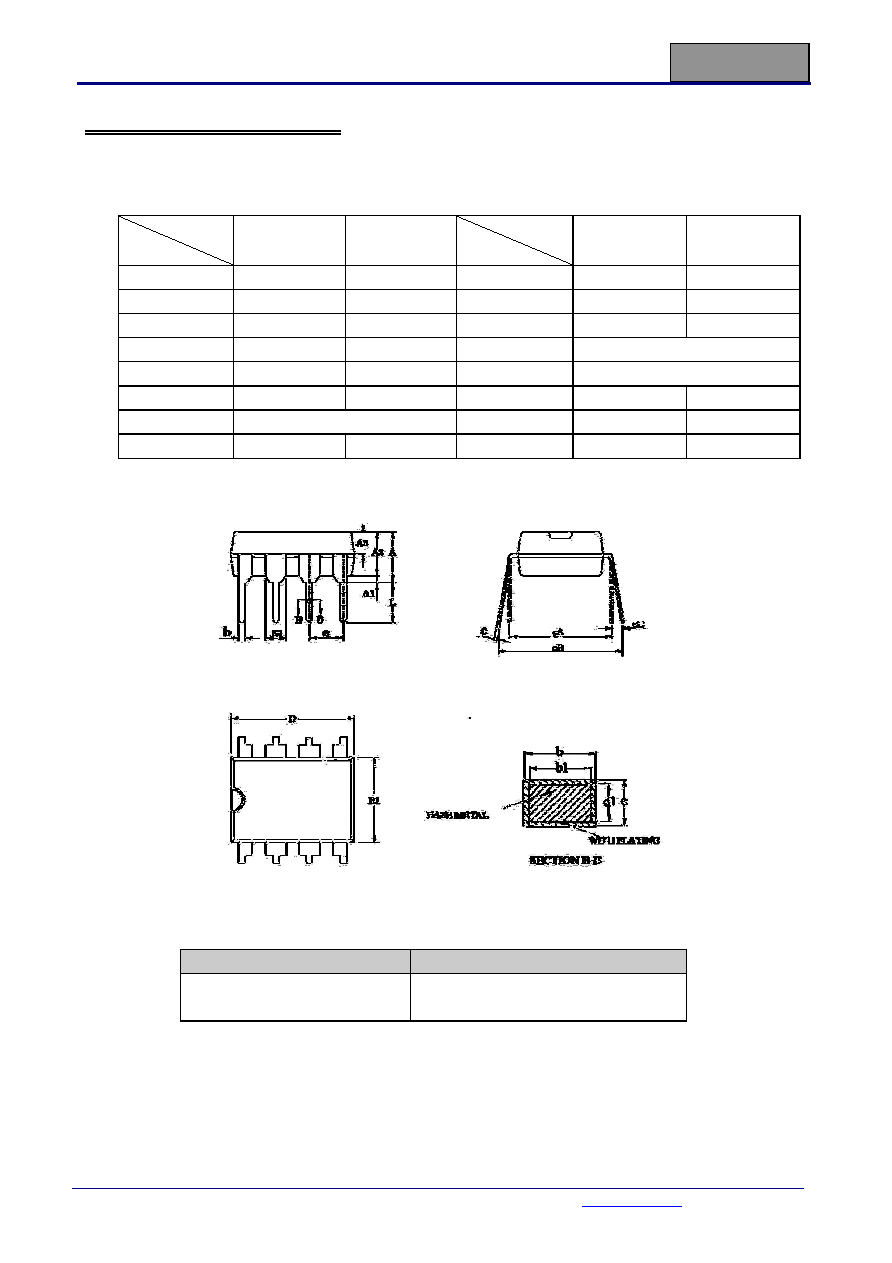

Package Dimensions (DIP-8)
Table 5.
DIP-8 mechanical data
Size
symbol
Min.(mm)
Max.(mm)
Size
symbol
Min.(mm)
Max.(mm)
A
3.60
4.00
c1
0.23
0.27
A1
0.51
——
D
9.05
9.45
A2
3.00
3.40
E1
6.15
6.55
A3
1.55
1.65
e
2.54BSC
b
0.44
0.53
e A
7.62BSC
b1
0.43
0.48
e B
7.62
9.30
B1
1.52BSC
e C
0.00
0.84
c
0.24
0.32
L
3.00
——
Figure 4. Package dimensions
TOP MARK
Package
AP8012H
YWWXXXXX
DIP-8
Note: Y: Year Code; WW: Week Code; XXXXX: Internal Code
