Digital Fiber Sensor

FX-410 SERIES

168

Selection

Guide

Fibers

Fiber

Amplifiers

FX-500

FX-100

FX-300

FX-410

FX-311

FX-301-F7/

FX-301-F

FIBER

SENSORS

LASER

SENSORS

PHOTOELECTRIC

SENSORS

MICRO

PHOTOELECTRIC

SENSORS

AREA

SENSORS

LIGHT CURTAINS /

SAFETY

COMPONENTS

PRESSURE /

FLOW

SENSORS

INDUCTIVE

PROXIMITY

SENSORS

PARTICULAR

USE SENSORS

SENSOR

OPTIONS

SIMPLE

WIRE-SAVING

UNITS

WIRE-SAVING

SYSTEMS

MEASUREMENT

SENSORS

STATIC ELECTRICITY

PREVENTION

DEVICES

LASER

MARKERS

PLC

HUMAN MACHINE

INTERFACES

ENERGY CONSUMPTION

VISUALIZATION

COMPONENTS

FA COMPONENTS

MACHINE VISION

SYSTEMS

UV CURING

SYSTEMS

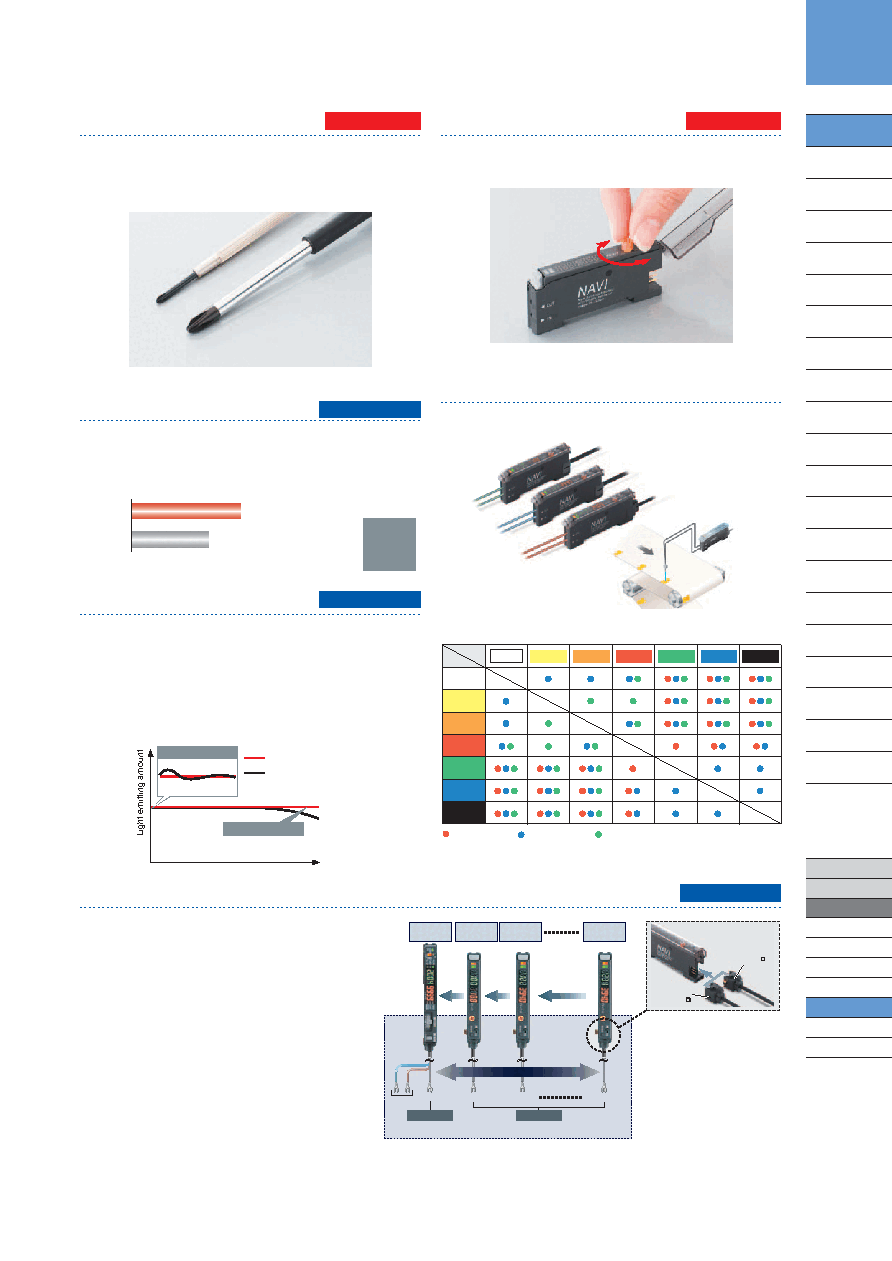

Excellent workability and ease of maintenance

Connector type

Large endless adjuster

New concept

Standard screwdrivers can be used to turn the adjuster as well

as precision screwdrivers. In addition, an “endless” mechanism

is used which eliminates the possibility of any damage being

caused by turning the adjuster too far.

FX-412 can be turned by finger! New concept

The adjuster can be turned directly by finger, without the

need for a screwdriver.

Everyday-use

screwdriver is OK

Beam power greatly increased to give strong performance

under adverse environments

Red LED type

The beam power has been greatly increased. This

means a longer sensing distance and less trouble from

problems such as dust. These sensors have ample

performance for workplace needs.

(for U-LG mode)

1,550 mm

61.024 in

1,100 mm

43.307 in

FX-411

Previous

models

* For

FT-42 thru-beam type fiber

1.4 times

previous

models

Improved stability over both long and short terms Red LED type

The red LED type sensors have a “four-chemical emitting

element” which maintains stability of light emissions for

long-term operation. Furthermore, all models have an “APC

(Auto Power Control) circuit” which improves stability at

times such as when the power is turned on. These features

improve overall stability compared to previous models.

Stable sensing comparison

Three-chemical

emitting element,

Without APC

FX-411 (Red LED type)

Time

Long-term stability

Short-term stability

Deviation

Three types are available, with red, blue and green light

Different sensors can be selected to suit the application.

:Red LED type

:Blue LED type

:Green LED type

Back-

ground color

Mark

color

White

Yellow

Orange

Red

Green

Blue

Black

Yellow Orange

Red

Green

Blue

Black

White

Color combinations that can be discerned during mark sensing

The same quick-connection cable that is

used for sensors such as the

FX-300 series

of digital fiber sensors is used. This means

that they can be used together with other

types of sensors such as laser sensors, and

the number of power supply cables can be

reduced.

Asingle output line is used, so that wiring can be greatly reduced and space savings can be obtained.

Main cable

Sub cable

Laser sensor

LS-401

Fiber sensor

FX-411B

Fiber sensor

FX-411G

Fiber sensor

FX-411

Power

supply

cable

Output line 1 Output line 2

Output line 3

Output line 16

Sub cable

CN-71-C

Main cable

CN-73-C

Quick-connection cables can

be used for power supply

cascade wiring.

Both main and sub units utilize

the same amplifier body.

Up to a maximum 16 sensors can be connected together

The sensors can be connected together with other

sensors such as the

FX-300 series of digital fiber

sensors and the

GA-311 of inductive proximity

sensors. In addition, the

SC series of sensor PLC

connection units with MIL connector compatibility can

also be used to further reduce the amount of wiring.
