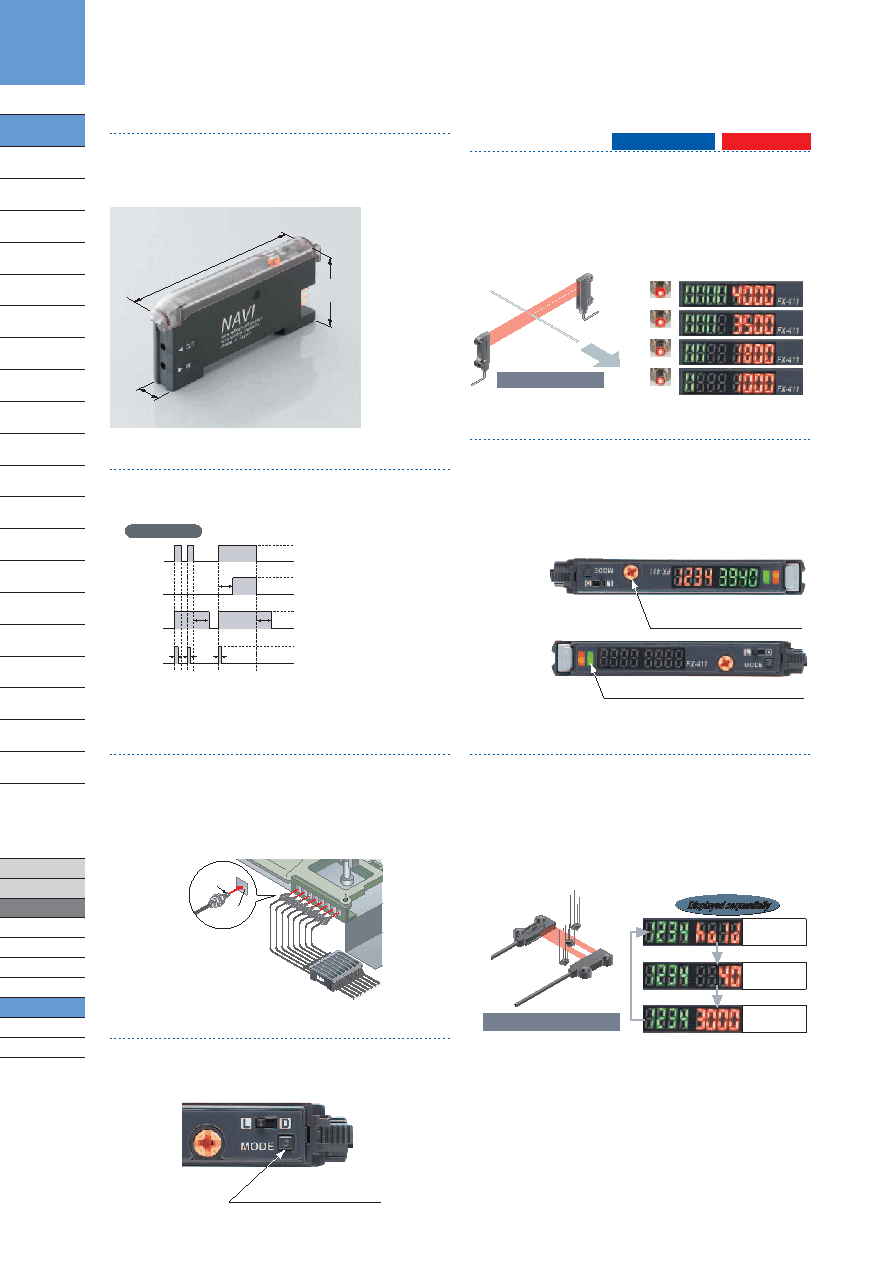

Contributing to device miniaturization

This fiber sensor is the smallest among the dual digital

display types, contributing to device miniaturization.

64.5 mm

2.539 in

30.5 mm

1.201 in

10 mm

0.394 in

Equipped with 3 types timers

Equipped with OFF-delay / ON-delay / ONE SHOT timer.

(Timer period: 1 ms to 3 sec. approx.)

ON-delay

OFF

ON

OFF

ON

OFF

ON

T1

Time chart

For L-ON

Sensing

condition

ONE SHOT

Beam-interrupted

Beam-received

OFF-delay

T1

T1

T1

T1

Ideal for dealing with saturation / Light-emitting amount

selection function

Red LED type New concept

In cases where the incoming light level can become

saturated, such as during close-range sensing or when

sensing transparent or minute objects, the sensor’s light-

emitting amount can be adjusted to provide more stable

sensing without changing the response time.

Level 3

Level 1

Level 4

Level 2

FT-A11

Light-emitting amount can be changed

without changing response time.

Wire breakage detection

Digital display upside-down / off function

The digital display can be turned upside-down if required

to suit the setup location. In addition, a stability indicator

is also provided, so that the amount of light-receiving

excess can be checked even when the display is turned

off.

When digital

display is

upside-down

(turned ON)

When digital

display is off

(Eco ON)

Stability indicator

Excess amount can be seen even when display is off

Adjuster is used so that operation can be

carried out confidently even when upside down.

Interference prevention for up to 8 sets fiber heads (for U-LG)

The optical communication function allows up to a

maximum of eight sets of fiber heads (four sets for

FAST and STD settings) to be installed in contact with

each other without mutual interference occurring. (Set

automatically when power is turned on.)

Dog

FD-61

Hold function

Peak and bottom hold values for the incident light

intensity can be displayed. This is useful for checking

the incident light intensity during tasks such as drop

detection.

In addition, the peak and bottom values can be checked

while looking at the threshold value, which makes

adjustment much easier.

Displayed sequentially

Hold function

setting display

Bottom hold

amount display

Peak hold

amount display

FT-A11

Drop detection of minute objects

Displayed sequentially

Key lock function prevents wrong operation

This prevents the operator from changing the threshold

value by mistake.

Press and hold setting

switch for 5 seconds
