Threshold value adjuster

Threshold

value

Incident light

intensity

Operation

mode

switch

Setting switch

Conforming to

EMC Directive

PNP output

type available

Timer

Light intensity

monitor

Interference

prevention

Incident light intensity and threshold value

are displayed simultaneously

The incident light intensity and threshold value can be

checked at the same time with no operations needed. In

addition, no complex mode settings are needed when

the values are adjusted.

Easy-to-understand operating panel layout

The threshold value adjuster and operation mode switch

are large and easy to see, and they can be operated with

the same sensitivity as general-purpose photoelectric

sensors. Functions which are not commonly used can be

operated using a non-obtrusive setting switch.

Threshold values can be changed smoothly

This sensor uses the R.S.S.* adjuster with a compact encoder inside.

The sensitivity amount changes depending on the rotation speed of the adjuster, so that

adjustment can be carried out speedily.

* Rotation Speed Sensitivity

•

•

•

Slower [Turn]

Faster [Turn]

1 dig

it equals

30°

Adjustment in units of 1 digit is also easy

100

10

1

Amount of change

(digit)

Adjuster rotation speed

Slower

Faster

No need for the fine changes in force required

for photoelectric sensors.

Certified

Recognition

(Excluding

FX-412□ and PNPoutput type)

(Excluding

FX-412□)

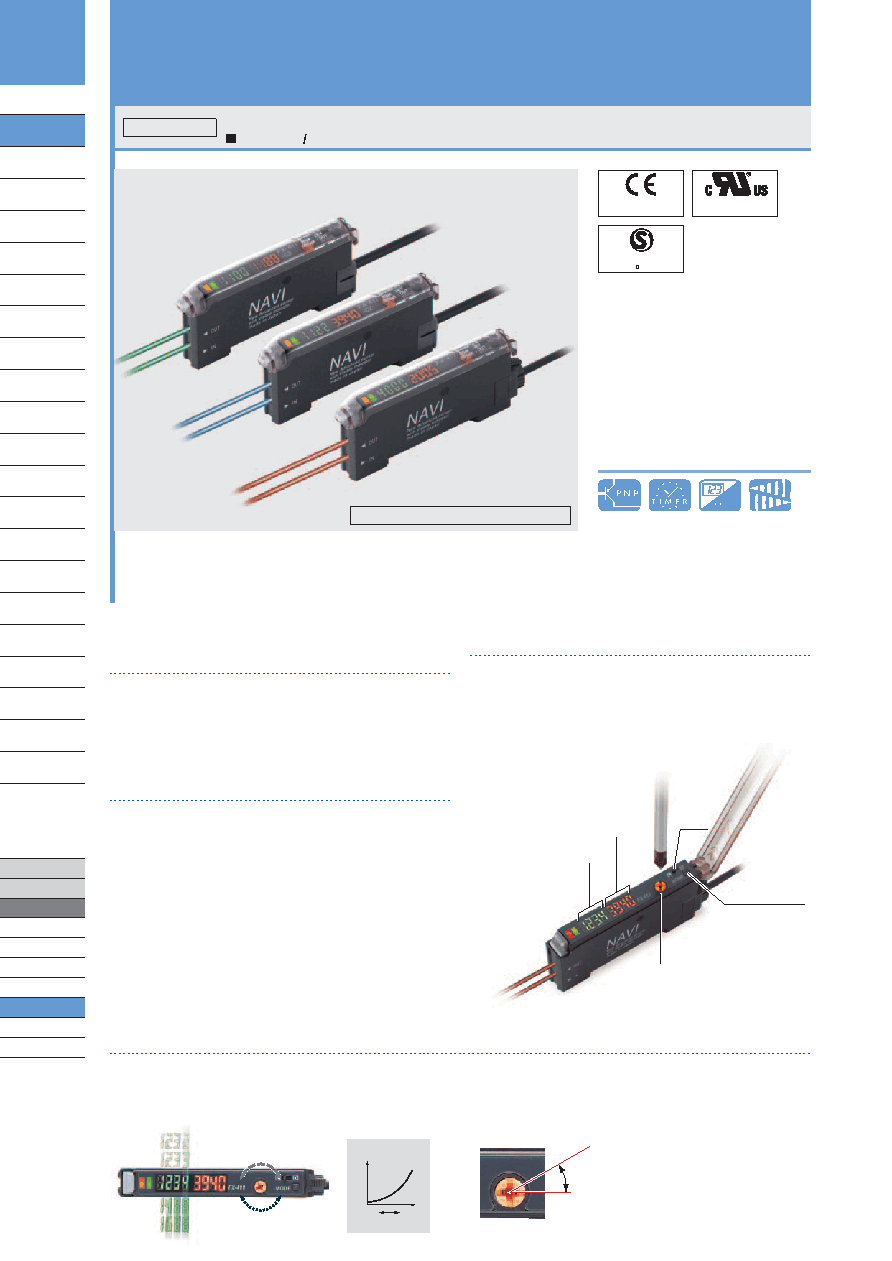

Digital Fiber Sensor

FX-410 SERIES

Just “Look” and “Turn”,

Simple, easy-to-use fiber sensor

■General terms and conditions.............F-7 ■Sensor selection guide …………… P.3~

Glossary of terms / General precautions....P.1455~ / P.1458~

■Korea’s S-mark.............................P.1506

Adjustment variations according to the

individual have been eliminated

Accurate control of the adjuster threshold values by

using numerical values is possible due to the digital

display. This allows anybody to perform the same

settings.
