X24C01A

12

0.150 (3.80)

0.158 (4.00)

0.228 (5.80)

0.244 (6.20)

0.014 (0.35)

0.019 (0.49)

PIN 1

PIN 1 INDEX

0.010 (0.25)

0.020 (0.50)

0.050 (1.27)

0.188 (4.78)

0.197 (5.00)

0.004 (0.19)

0.010 (0.25)

0.053 (1.35)

0.069 (1.75)

(4X) 7°

0.016 (0.41)

0.037 (0.937)

0.0075 (0.19)

0.010 (0.25)

0° – 8°

X 45°

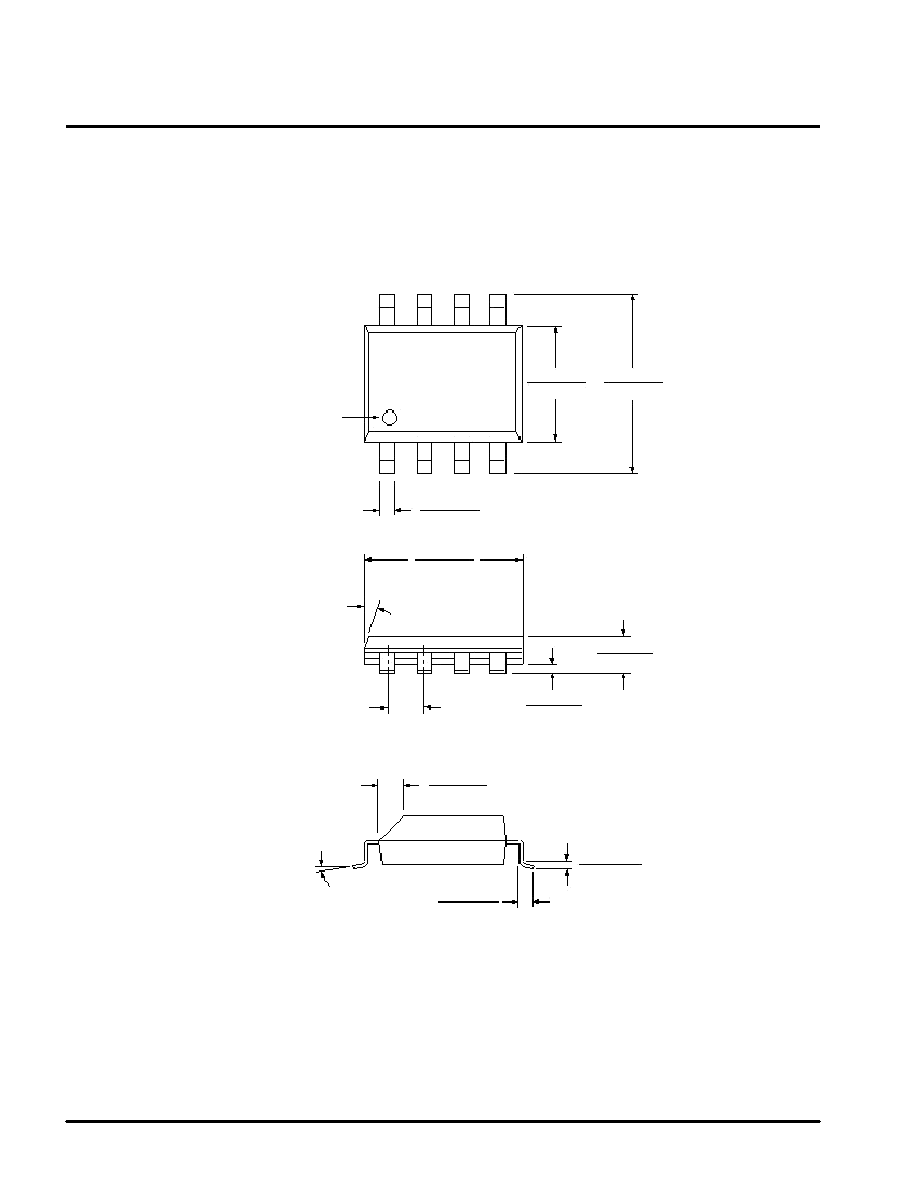

8-LEAD PLASTIC SMALL OUTLINE GULL WING PACKAGE TYPE S

NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESIS IN MILLIMETERS)

PACKAGING INFORMATION
