Features

•

Operating voltage from 5.5 to 75 V

•

600 mA sink/source current capability

•

3.3 V and 5 V control logic

•

Two input strategies:

–

ENx/INx with adjustable deadtime generation

–

INHx/INLx with interlocking

•

Matched propagation delay for all channels

•

Very short propagation delay: 40 ns

•

Integrated bootstrap diodes

•

12 V LDO linear regulator (50 mA max.)

•

Embedded VDS monitor for each external MOSFET

•

Overcurrent comparator

•

UVLO and thermal shutdown protection

•

Standby mode for low current consumption operation

Application

•

Home automation and appliances

•

e-bikes

•

Power tools

•

Fans and pumps

•

Industrial automation

•

Textile machines

•

Gaming and consoles

Description

The STDRIVE101 is a low voltage gate driver suitable for driving three-phase

brushless motors.

It is a single-chip with three half-bridge gate drivers for N-channel power MOSFETs.

Each driver has a current capability of 600 mA (sink/source). It integrates a low drop

linear regulator generating the supply voltage for both low-side and high-side gate

drivers through a bootstrap circuitry.

The device provides Under Voltage Lock Out (UVLO) on both the low-side and high-

side sections, preventing the power switches from operating in low efficiency or

dangerous conditions.

The control logic integrated into the STDRIVE101 allows two input strategies (high-

side and low-side or enable and PWM driving signals). The driving method is

selected according to DT/MODE pin. In both cases, prevention from cross conduction

is ensured by interlocking or internally generated deadtime.

The STDRIVE101 also features a VDS monitoring protection for each external

MOSFET, thermal shutdown and can be put in the standby mode to reduce the

power consumption.

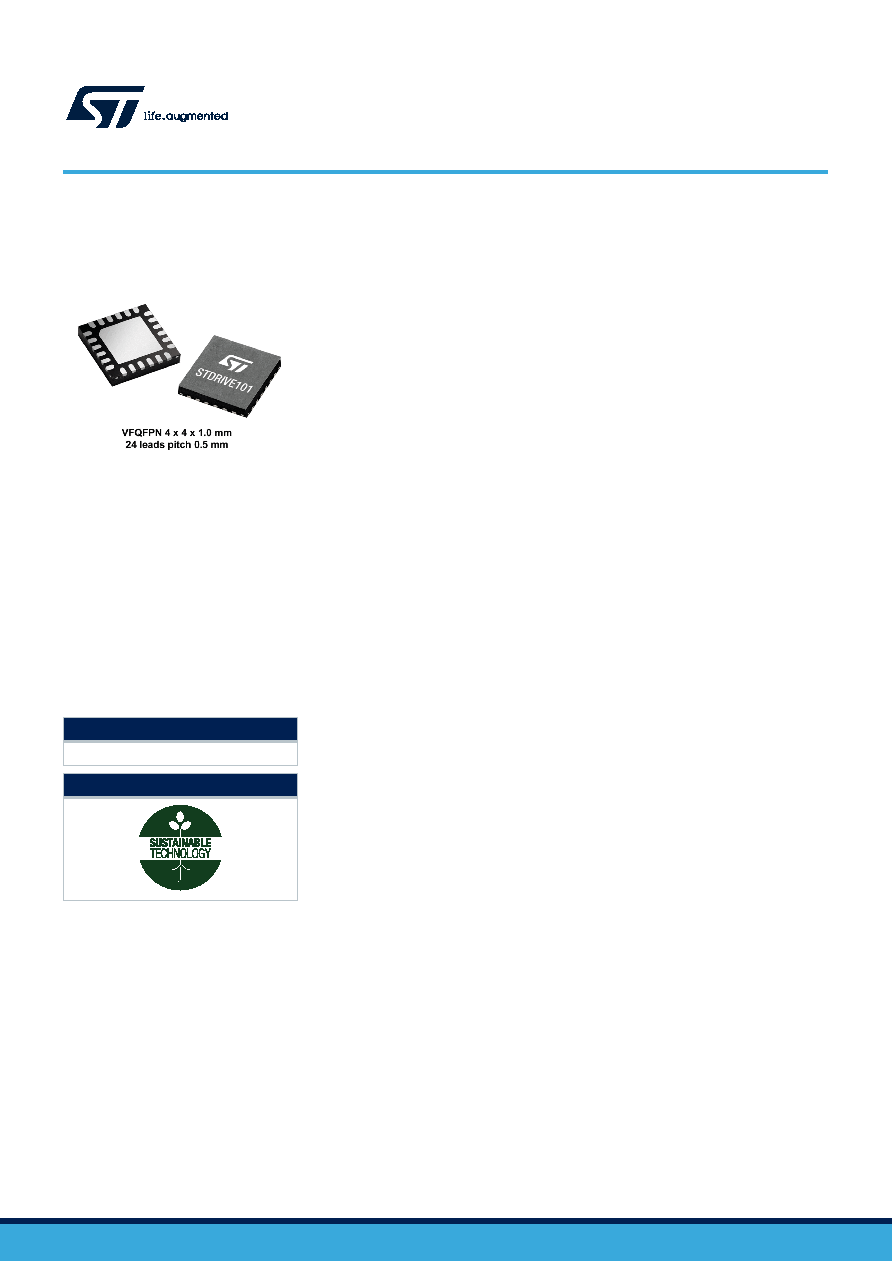

The device is available in a VFQFPN 4x4 24 leads package option.

Product status link

STDRIVE101

Product label

Triple half-bridge gate driver

STDRIVE101

Datasheet

DS13472 - Rev 1 - October 2020
