AD8139ACP-R2 数据表(PDF) 14 Page - Analog Devices

部件名 AD8139ACP-R2
功能描述  Low Noise, Rail-to-Rail, Differential ADC Driver
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

AD8139ACP-R2 数据表(HTML) 14 Page - Analog Devices

Back Button AD8139ACP-R2 Datasheet HTML 10Page - Analog Devices AD8139ACP-R2 Datasheet HTML 11Page - Analog Devices AD8139ACP-R2 Datasheet HTML 12Page - Analog Devices AD8139ACP-R2 Datasheet HTML 13Page - Analog Devices AD8139ACP-R2 Datasheet HTML 14Page - Analog Devices AD8139ACP-R2 Datasheet HTML 15Page - Analog Devices AD8139ACP-R2 Datasheet HTML 16Page - Analog Devices AD8139ACP-R2 Datasheet HTML 17Page - Analog Devices AD8139ACP-R2 Datasheet HTML 18Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 14 / 24 page
background image
AD8139
Rev. B | Page 14 of 24
–1.5
–1.0
–0.5
1.0
0.5
0
1.5
TIME (ns)
10ns/DIV
VO, cm = 2V p-p
VIN, dm = 0V
±5V
+5V

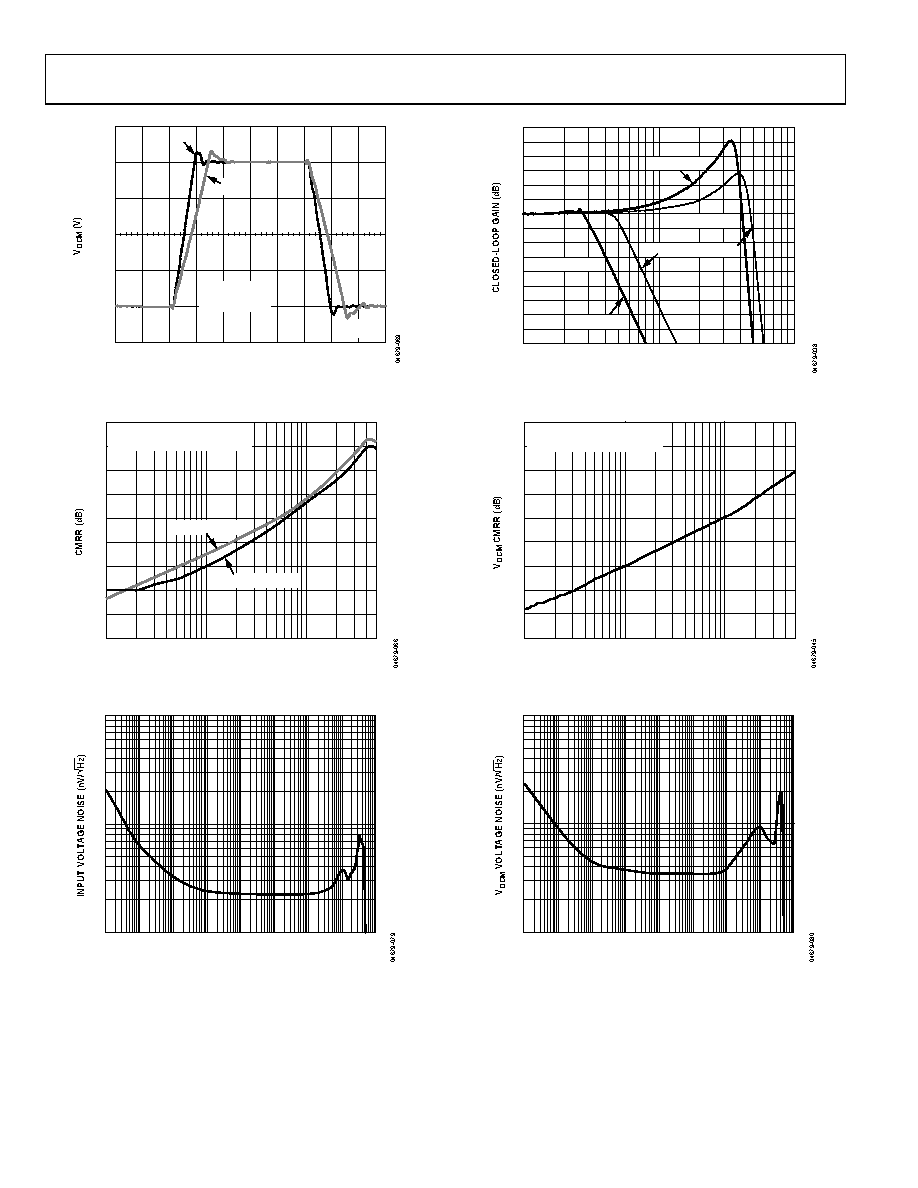

Figure 37. VOCM Large Signal Transient Response
0
–90
–80
–70
–60
–50
–40
–30
–20
–10
1
10
100
500
FREQUENCY (MHz)
VIN, cm = 0.2V p-p
INPUT CMRR = ΔVO, cm/ΔVIN, cm
RF = RG = 200Ω
RF = RG = 10kΩ
Figure 38. CMRR vs. Frequency
1
10
100
1k
10k
100k
1M
10M
1G
100M
10
100
FREQUENCY (Hz)
Figure 39. Input Voltage Noise vs. Frequency
6
–9
–7
–8
–6
–5
–4
–3
–2
–1
0
1
2
3
4
5
10
100
1000
FREQUENCY (MHz)
VO, cm = 0.1V p-p
VO, cm = 2.0V p-p
VS = +5V
VS = +5V
VS = ±5V
VS = ±5V
Figure 40. VOCM Frequency Response for Various Supplies
0
–90
–80
–70
–60
–50
–40
–30
–20
–10
1
10
100
500
FREQUENCY (MHz)
VO, cm = 0.2V p-p
VOCM CMRR = ΔVO, dm/ΔVO, cm
Figure 41. VOCM CMRR vs. Frequency
1
10
100
1k
10k
100k
1M
10M
1G
100M
10
100
FREQUENCY (Hz)
Figure 42. VOCM Voltage Noise vs. Frequency
