ADMV1455BBCZ-R7 数据表(PDF) 21 Page - Analog Devices

部件名 ADMV1455BBCZ-R7
功能描述  17.7GHz to 55GHz, Wideband, Microwave Downconverter
PDF  141 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

ADMV1455BBCZ-R7 数据表(HTML) 21 Page - Analog Devices

Back Button ADMV1455BBCZ-R7 Datasheet HTML 17Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 18Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 19Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 20Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 21Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 22Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 23Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 24Page - Analog Devices ADMV1455BBCZ-R7 Datasheet HTML 25Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 141 page
background image
Data Sheet
ADMV1455
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 141

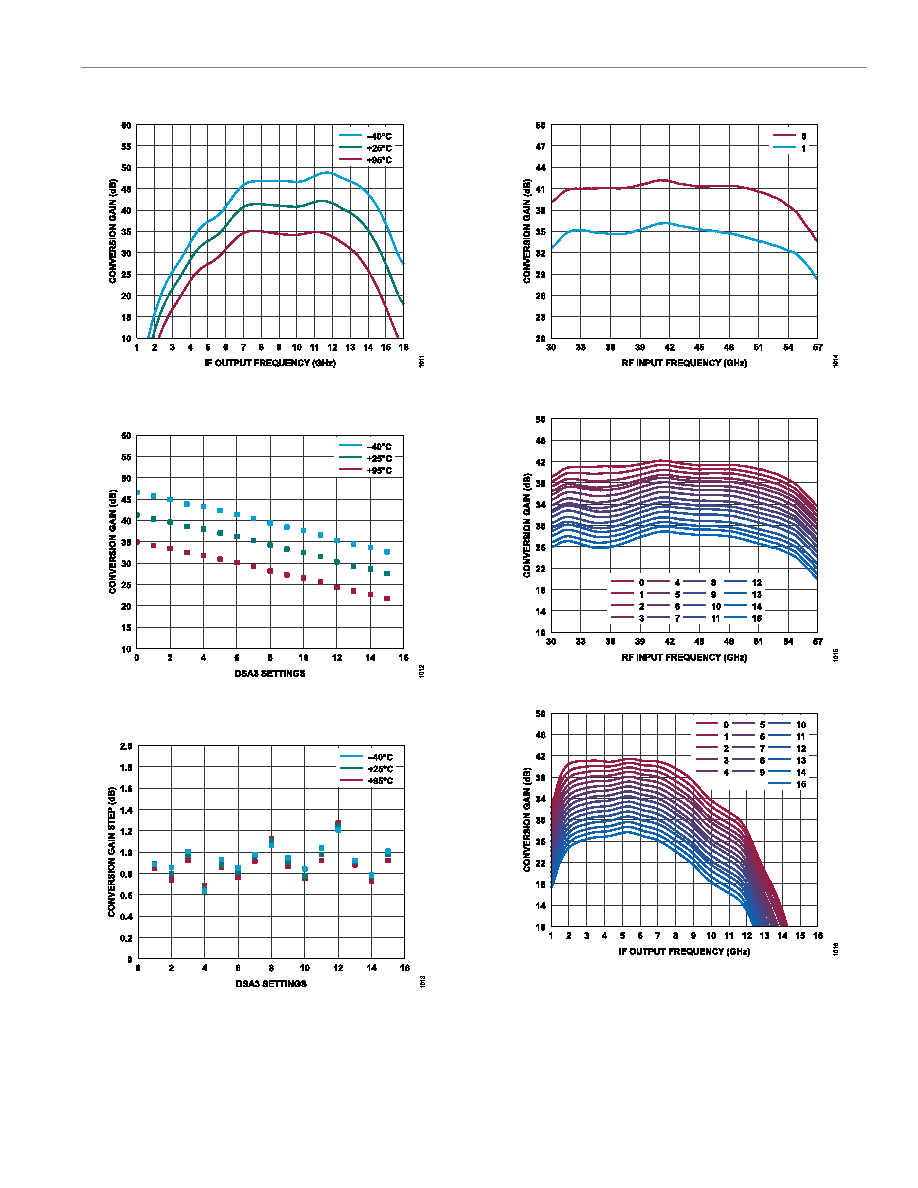

Figure 14. Conversion Gain vs. IF Output Frequency at Various
Temperatures, 10GHz IF Filter
Figure 15. Conversion Gain vs. DSA3 Settings at Various Temperatures,
Single fRF = 49GHz
Figure 16. Conversion Gain Step vs. DSA3 Settings at Various Temperatures,
Single fRF = 49GHz
Figure 17. Conversion Gain vs. RF Input Frequency at Various DSA2 Settings
Figure 18. Conversion Gain vs. RF Input Frequency at Various DSA3 Settings
Figure 19. Conversion Gain vs. IF Output Frequency at Various DSA4
Settings, 4GHz IF Filter
