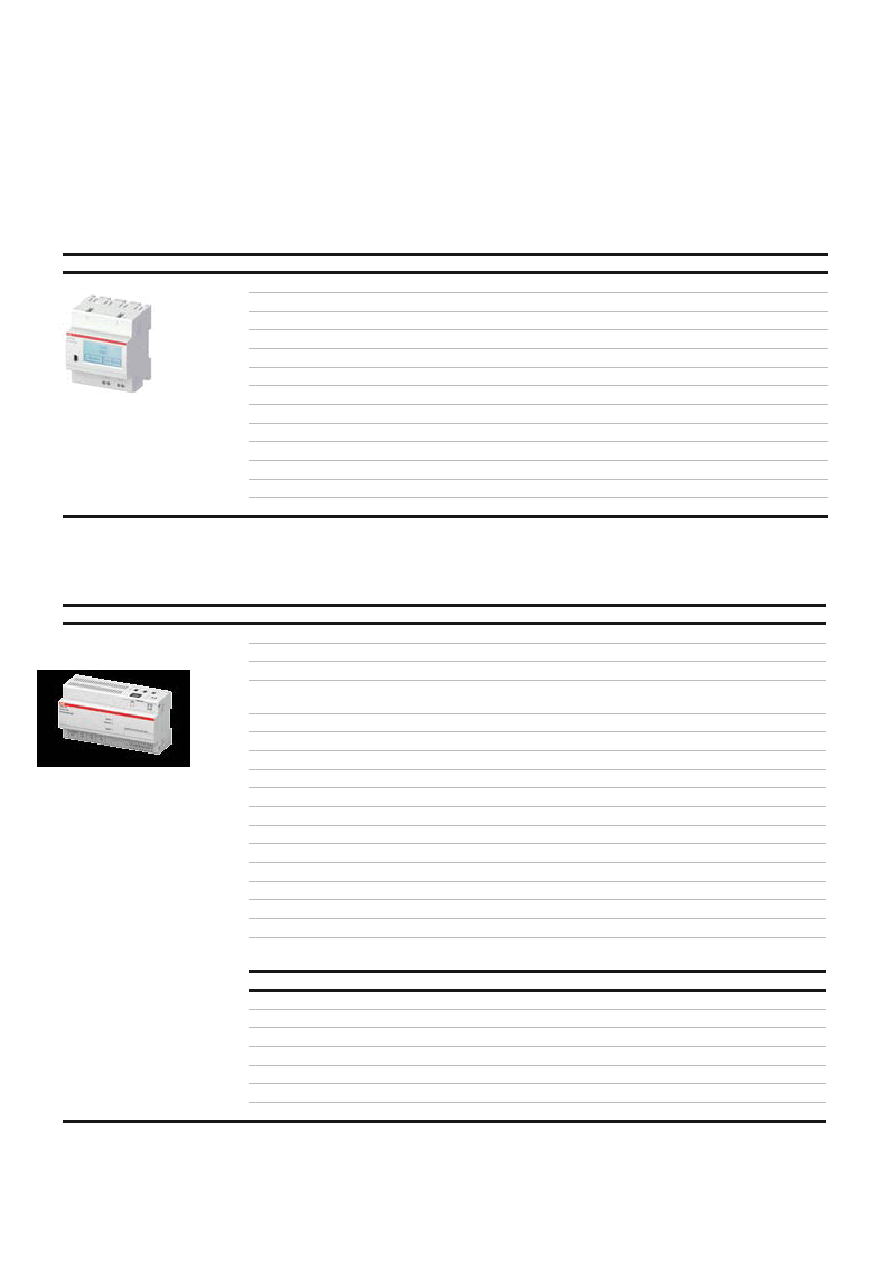

PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A

Control Unit CMS-700

Supply voltage

[V AC]

80 – 277 (L1-N, +5%)

Frequency

[Hz]

50 / 60

Power input (L1-N)

[W]

5 ... 40 (dep. on number of sensors)

Power input, current transformer,

secondary side

[VA]

Current circuit <2 (per phase)

Voltage measurement range

[V AC]

80 – 277 (L1, L2, L3-N)

Measurement range, current transformer,

[A]

nominal: 5, max.: 6

Harmonic component

[Hz]

up to 2000

Data rate of Modbus RTU

[Baud]

RS485 2-wire, 2400 ... 115 200

Refresh time

≤1 sec with max. 96 sensors

LAN

[Mbit/s]

100

Conductor cross-section

[mm 2]

0.5 ... 2.5

Mounting method

35 mm DIN rail (DIN 50022)

Degree of protection

IP20

Dimensions

[mm]

160.0 x 87.0 x 64.9 (9 WM)

Operating temperature

[°C]

− 25 ... +60

Bearing temperature

[°C]

− 40 ... +85

Standards

IEC61010-1

UL 508/ CSA C22.2 No. 14

Main circuit accuracy

Voltage

± 1 %

Current

± 1 %

Harmonic component

1 %

Active power

± 2 %

Apparent power

± 2 %

Reactive power

± 2 %

Power factor

± 0.2 %

Control Unit CMS-600 – «Modbus RTU»Unit 600

Supply voltage

[V DC]

24 (± 10 %)

Power input

[W]

4 – 24 (dep. on number of sensors)

Interface

RS485 2-wire

Protocol

Modbus RTU

Data rate

[Baud]

2400 ... 115200

Refresh time

≤1 sec with max. 64 sensors

Insulation strength

[V AC]

400

Screw-type terminals

0.5 ... 2.5 mm2, max. 0.6 Nm

Mounting method

35 mm DIN rail (DIN 50022) or SMISSLINE TP plug base

Dimensions

[mm]

71.8 x 87.0 x 64.9 (4 WM)

Operating temperature

[°C]

− 25 ... +70

Bearing temperature

[°C]

− 40 ... +85

Standards

IEC 61010-1 UL 508/ CSA C22.2 No. 14

—

Control unit CMS 600

—

Control unit CMS 700

—

Circuit Monitoring System - CMS

Technical features
