With its breaking capacity of 10/15kA in only one module width

and 115 mm height, DSE201 M series is the perfect solution for a

complete protection in commercial and industrial applications,

where space optimization is required.

K E Y M O D U L A R CO M P O N EN T S - DSE 2 01 M - CO M PAC T D E S I G N , EN H A N C ED P R OT EC T I O N

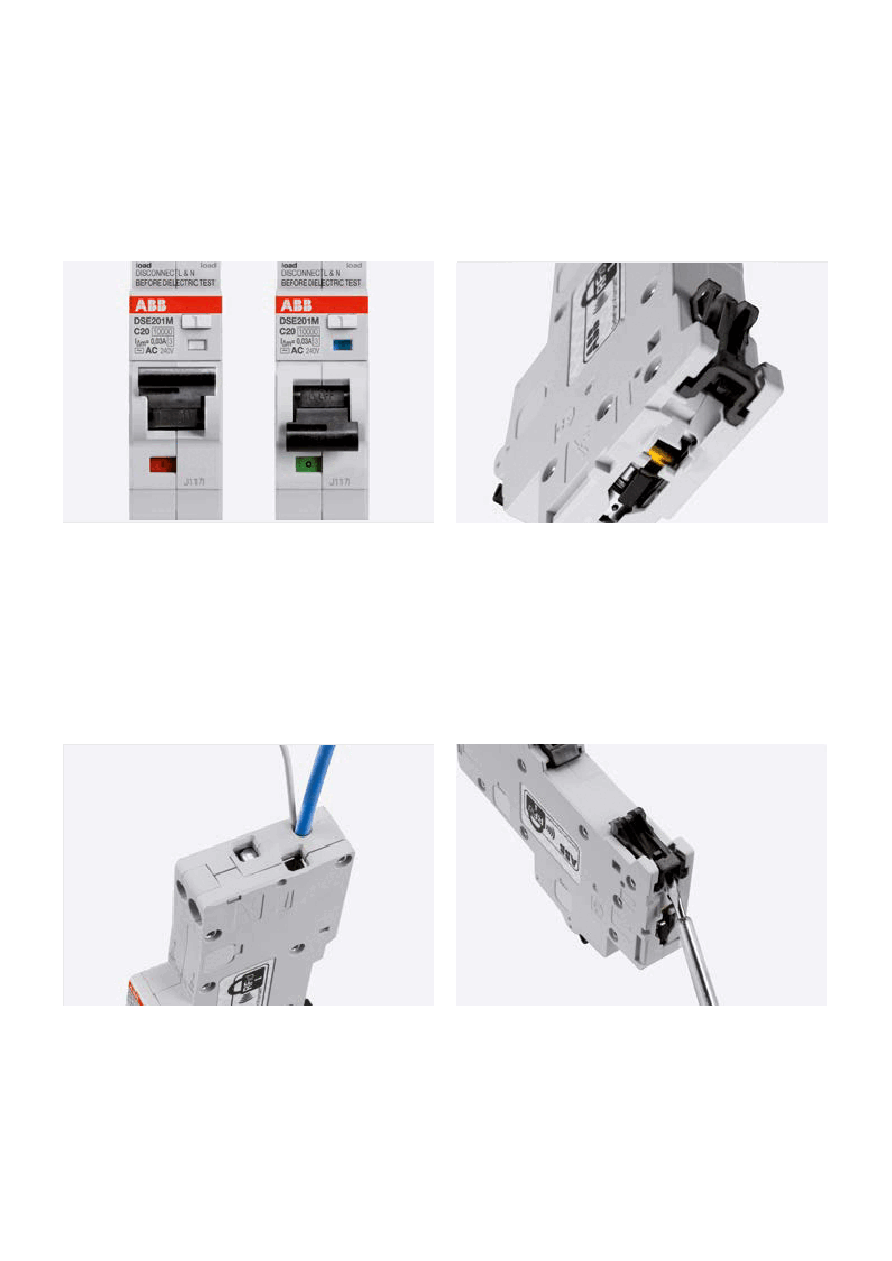

Device status at a glance

Earth fault indicator: blue window above the toggle to

immediately detect and identify any earth fault trip,

reducing downtime for maintenance. Contact position

indicator (CPI): green/red window below the toggle to

identify the real position of the contacts independently on

the toggle position.

Load side

The load side terminal accepts cables, both rigid and flexible

up to 16 mm2. Flying leads are straight instead of pigtail

ones to reduce the space required for wiring operations.

Double slot terminal

Easy to install, , fail-safe line side, terminal to avoid

improper connection. Two slots of different dimensions

(35 mm2 and 10 mm2) available to allow the connection both

with cables and busbars.

Easy and flexible

Double and bistable clips with a new design for a secure

fixing in any type of consumer unit or distribution board.

Easy removal from a cluster of RCBOs/MCBs supplied

with busbars.
