PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A

—

01 CMS-600

—

02 Connection

technology

—

03 Double slot terminal

—

04 CMS sensors

—

Key modular components - CMS

Circuit monitoring systems

CMS bus interface

A bus interface allows up to 96

sensors to be connected to the

Control Unit.

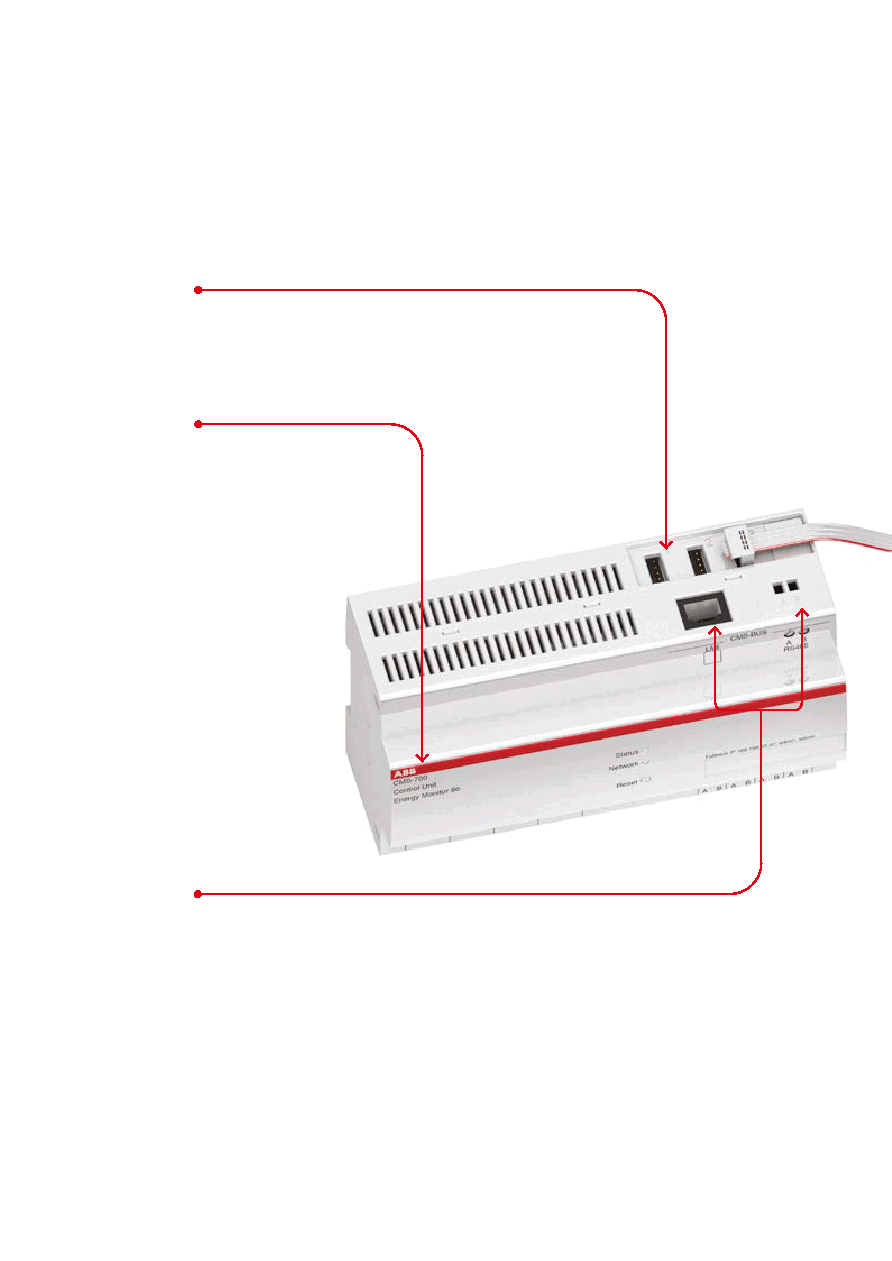

Control Units

The Control Unit is a kind of

computing and

communication center that,

depending on the equipment

connected to it, evaluates the

different data picked up by

the sensors and makes it

available via the built-in

interfaces.

Serial interfaces

Depending on the unit,

numerous interfaces and

protocols are available to

ensure smooth network

implementation: RS485

(Modbus RTU), LAN (TCP/IP and

Modbus TCP).

Thanks to the built-in web

server, an internet browser or a

free Android or iOS app can be

used to visualize the values

measured. What’s more, the

measured values can also be

exported to CSV files.
