Versions

Type

Order codes

Programming key

D KEY

2CSM277143R0621

Programming software

D SW

2CSM299973R0621

DCF77 antenna

D DCF77

2CSM299983R0621

GPS antenna

D GPS

2CSM299993R0621

—

Accessories

D/ T L I N E D I G I TA L T I M E S W I TC H E S – O R D ER CO D E S

Brightness range

lux

Order codes

Type

2:200

2CSM295563R1341

2:15000

T1 PLUS

2CSM295793R1341

Brightness range

lux

Order codes

Type

External sensor

LS-D

2CSM295723R1341

—

T Line modular twilight switches

Order Codes

T Line modular twilight switches

These twilight switches allow to switch ON and

switch OFF lighting devices according to a

scheduled level of the ambient light. They are

used in combination with an external sensor to

detect if the ambient light is higher or lower than

the set level.

A switching delay prevents them from operating

unnecessarily when the light intensity suddenly

changes (e.g. lightning, moving vehicles, etc.). The

T1 twilight switch in 1 channel is preset at 10 lux.

Accessories for T Line modular twilight switches

The external sensor is supplied in the same

package of the switch, but it’s also available

separately as spare part. The upper part of the

external case (with screw locking), is made up of

from factory and is equipped with 2 signalling

LEDs that indicate the setpoint value and display

the status of the contact . The operating

instructions are printed on the side of the

product. T1 PLUS switches feature a setpoint that

can be adjusted for 4 different scale values (2:40,

20:200, 200:2000, 2000:15000).This makes them

ideal for daytime applications where the lux

values are very high. With a 10 lux preset factory

setting, they are equipped with 2 signalling LEDs

that indicate the setpoint value and display the

status of the contact.

thermoplastic materials and bears up against

ultraviolet rays to guarantee a homogeneous

diffusion of the daylight internally. LS-D is also

equipped with a cable gland.

—

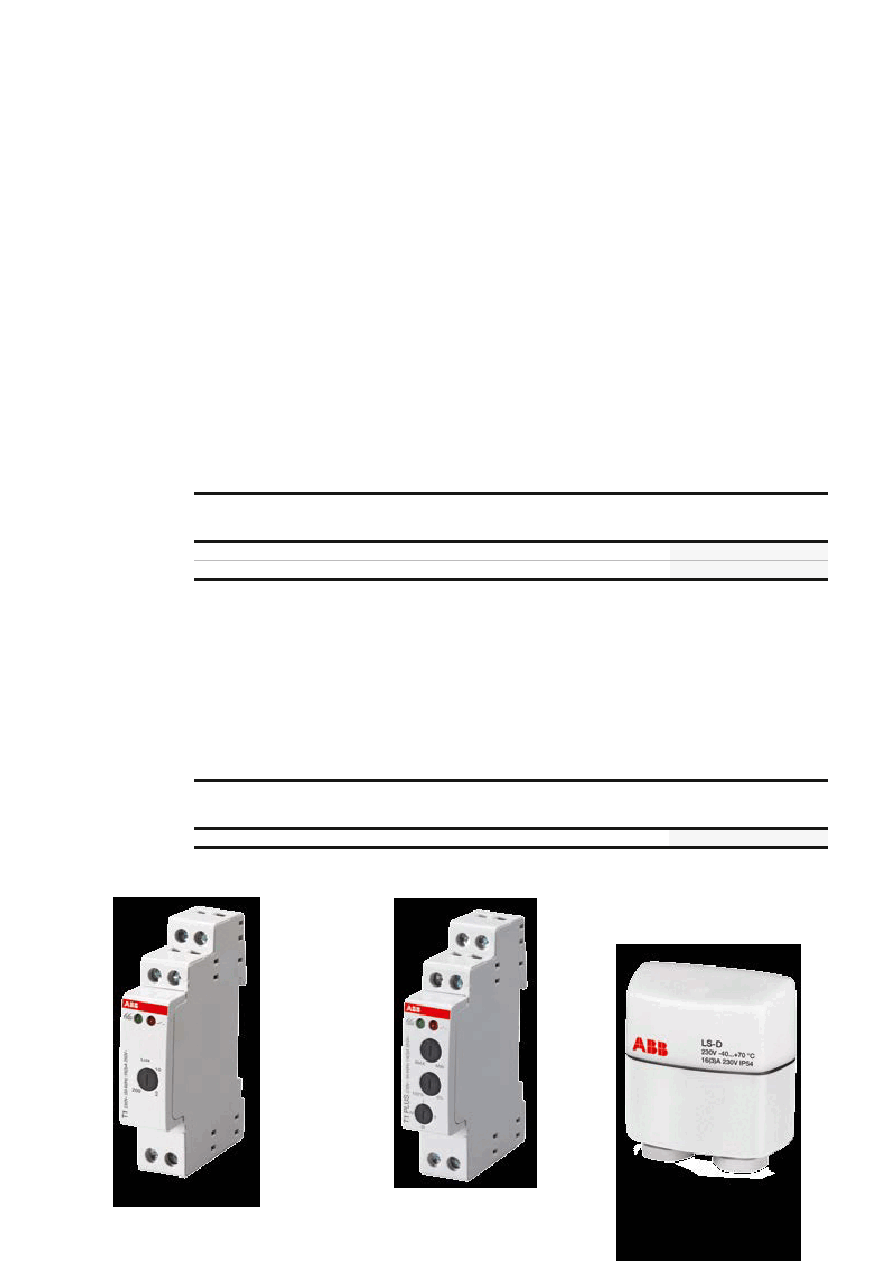

01 T1

—

02 T1 PLUS

—

03 LS-D

—

T Line modular twilight switches

—

Accessories
