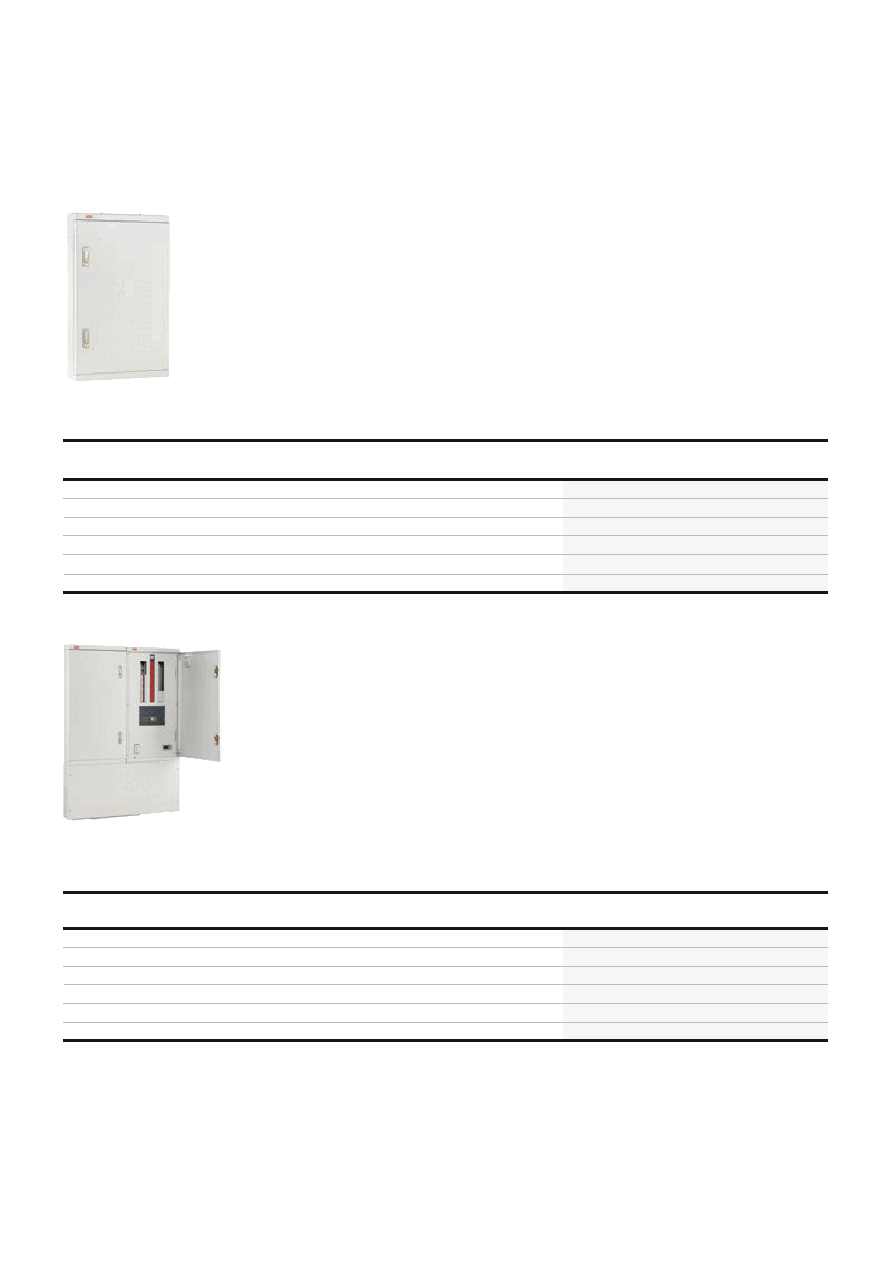

PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A

Pack contents: Horizontal split load kit

• 2 x MID, Modbus ( RS485 ) & Pulse Meters

• Associated CTs

• Incoming isolators

• Internal cables

• Requires 2 x MCB distribution board - Type B

Please note as these kits allow for 4 to 24way

boards cutting and crimping of cables is required.

Pack contents: Standard distribution board

• 250A distribution bar

• RAL7035 textured finish

• Door closing latch

Description

Order codes

Protecta Plus DB 4 Way 250A

EPP-W304

Protecta Plus DB 8 Way 250A

EPP-W308

Protecta Plus DB 12 Way 250A

EPP-W312

Protecta Plus DB 16 Way 250A

EPP-W316

Protecta Plus DB 20 Way 250A

EPP-W320

Protecta Plus DB 24 Way 250A

EPP-W324

—

MCB distribution board - Type B

Description

Order codes

125A 3P Horizontal split load kit - 2 x Meters

EPP-HSL-1253P

125A 4P Horizontal split load kit - 2 x Meters

EPP-HSL-1254P

160A 3P Horizontal split load kit - 2 x Meters

EPP-HSL-1603P

160A 4P Horizontal split load kit - 2 x Meters

EPP-HSL-1604P

250A 3P Horizontal split load kit - 2 x Meters

EPP-HSL-2503P

250A 4P Horizontal split load kit - 2 x Meters

EPP-HSL-2504P

—

Horizontal split load kit

—

Protecta Plus

Order Codes
