6mm Process Sealed SMT Tactiles

Series CB3

Distinctive Characteristics

Sealed construction prevents contact contamination and allows automated

soldering and cleaning.

.244” (6.2mm) square body allows compact mounting.

Heat tolerant resin used for actuator and base

meets UL flammability rating of 94V-0 and

maintains switch reliability through vapor

phase and infrared convection reflow

soldering.

Dome contact gives crisp tactile feedback

to positively indicate circuit transfer and

assures high reliability and long life –

more than 100,000 operations.

Gull-winged terminals ensure mechanical stability

during soldering and simplify solder joint inspection.

Insert molded terminals lock out flux, solvents, and other contaminants.

Packaged in tape-reel or partitioned tray. Tape-reel packaging meets EIA-481-2

Standard.

Coplanarity: all considered surfaces must lie between two parallel planes that are

a maximum distance apart of .0059” (0.15mm). (Additional coplanarity details in

Terms and Acronyms in the Supplement section.)

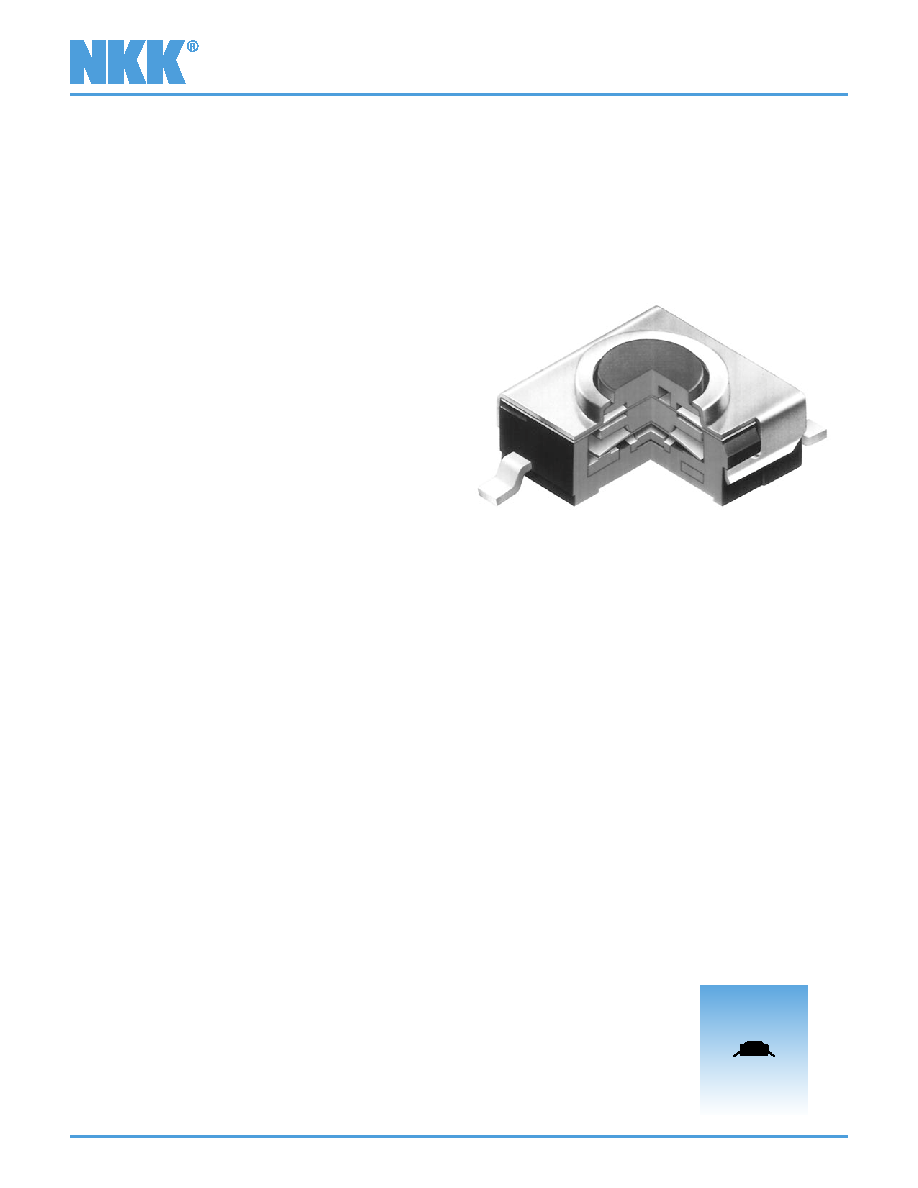

Actual Size
