3

Unit：mm

CM10 Series

http://www.ddknet.co.jp

◎ Specifications and/or dimensions in this catalog are subject to change without notice.

  Your checking the latest specifications with our drawings would be highly appreciated.

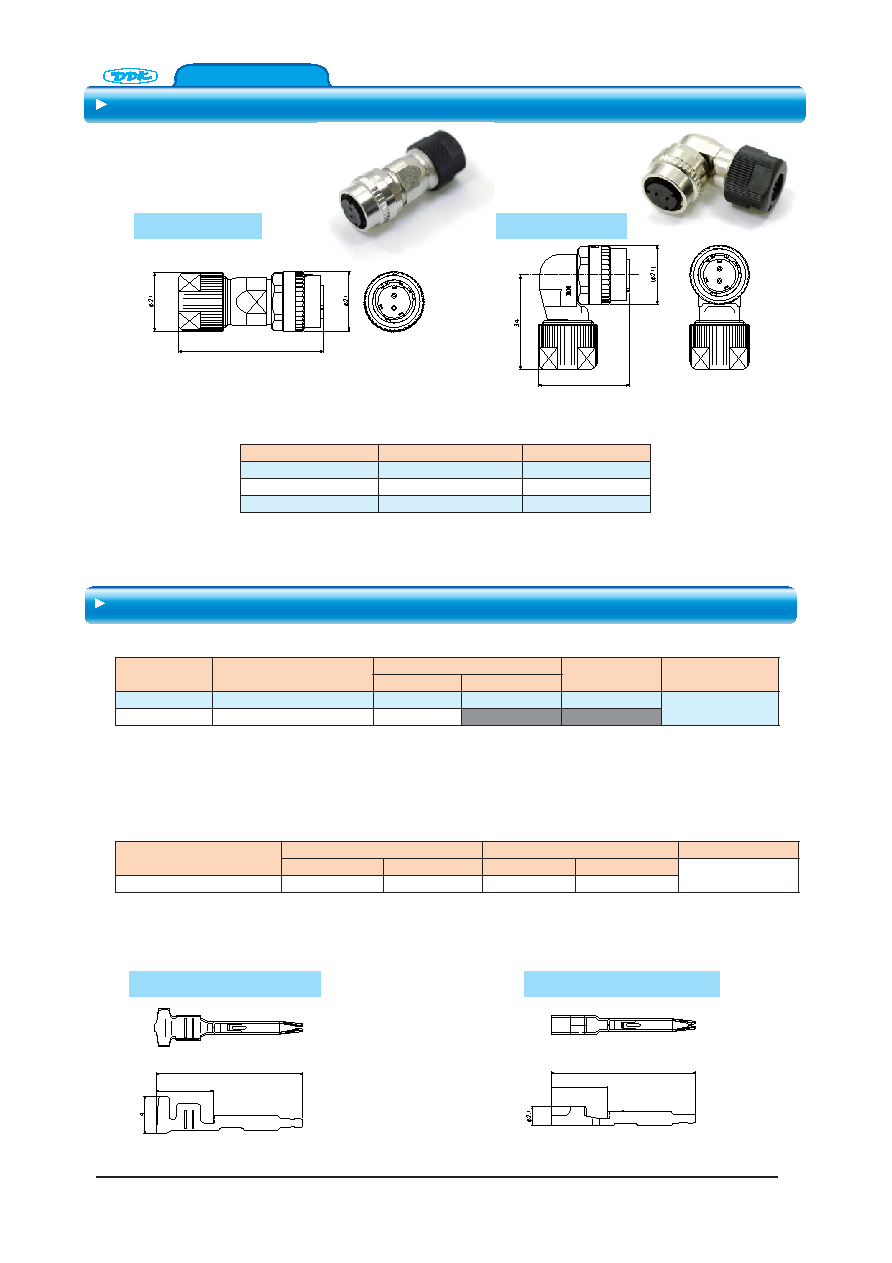

○ 2-Contact Plug

Straight Plug P/N

Right Angle Plug P/N

Cable Outside Dia.

CM10-SP2S-S(D6)

CM10-AP2S-S(D6)

φ 4.0 ∼φ 6.0

CM10-SP2S-M(D6)

CM10-AP2S-M(D6)

φ 6.0 ∼φ 9.0

CM10-SP2S-L(D6)

CM10-AP2S-L(D6)

φ 9.0 ∼φ 11.6

○ Contact of 2-Contact Plug

CM10-#22SC(C3)(D8)- □□□□

CM10-#22SC(S2)(D8)- □□□□

Reel Contact for Semi-Automatic Crimping Machine (Crimping Style Only)

 

Contact P/N

( 4,000 pcs on 1 reel )

Applicable Wire

Semi-Automatic Crimping Machine

Extraction Tool P/N

Conductor Size

Insulation Dia.

1set P/N

Applicator P/N

357J-50548T

CM10-#22SC(C3)(D8)-4000

16 ∼ 20AWG

φ 1.87 ∼φ 2.45

AP-A50541T

AP-A50541T-1

Loose Piece Contact

1. The packaging specification is 100 pcs of contacts per bag for sale.

２．Both of the solder contacts and the crimp contacts shall be inserted into the inserts of the connectors after soldering the contacts to

the cable or crimping the contacts with the cable.

1. Due to the construction of CM10-#22SC-(C3)(D8)-4000 you can only make the crimping process by AP50541T.

So the process of striping cable shall be made in advance.

  2. AP50541T is a set part number which includes both of the semi-automatic crimping machine and the applicator (crimper).

The semi-automatic crimping machine is required

when you terminate the reel contacts.

Item

   

Contact P/N

( 100 pcs in 1 bag )

 

Applicable Wire

Hand Tool P/N

Extraction Tool P/N

Conductor Size

Insulation Dia.

Crimping Type

CM10-#22SC(C3)(D8)-100

16 ∼ 20AWG

φ 1.87 ∼φ 2.45

357J-50448T

357J-50548T

Soldering Type

CM10-#22SC(S2)(D8)-100

16AWG Max.

15.6

6

15.6

6

・Contact Style : Socket

・Termination：Solder or Crimp

・The contact is sold separately.

Straight Plug

Right Angle Plug

Note: The applicable cable outside diameter is in the case of cabtyre cable.

Please contact the nearest sales office when you use a different cable.

Regarding the wiring tools, please refer to the instruction manuals attached on the top-page of this connector catalogue.

２

１

(32.5)

２

１

(51.4)
