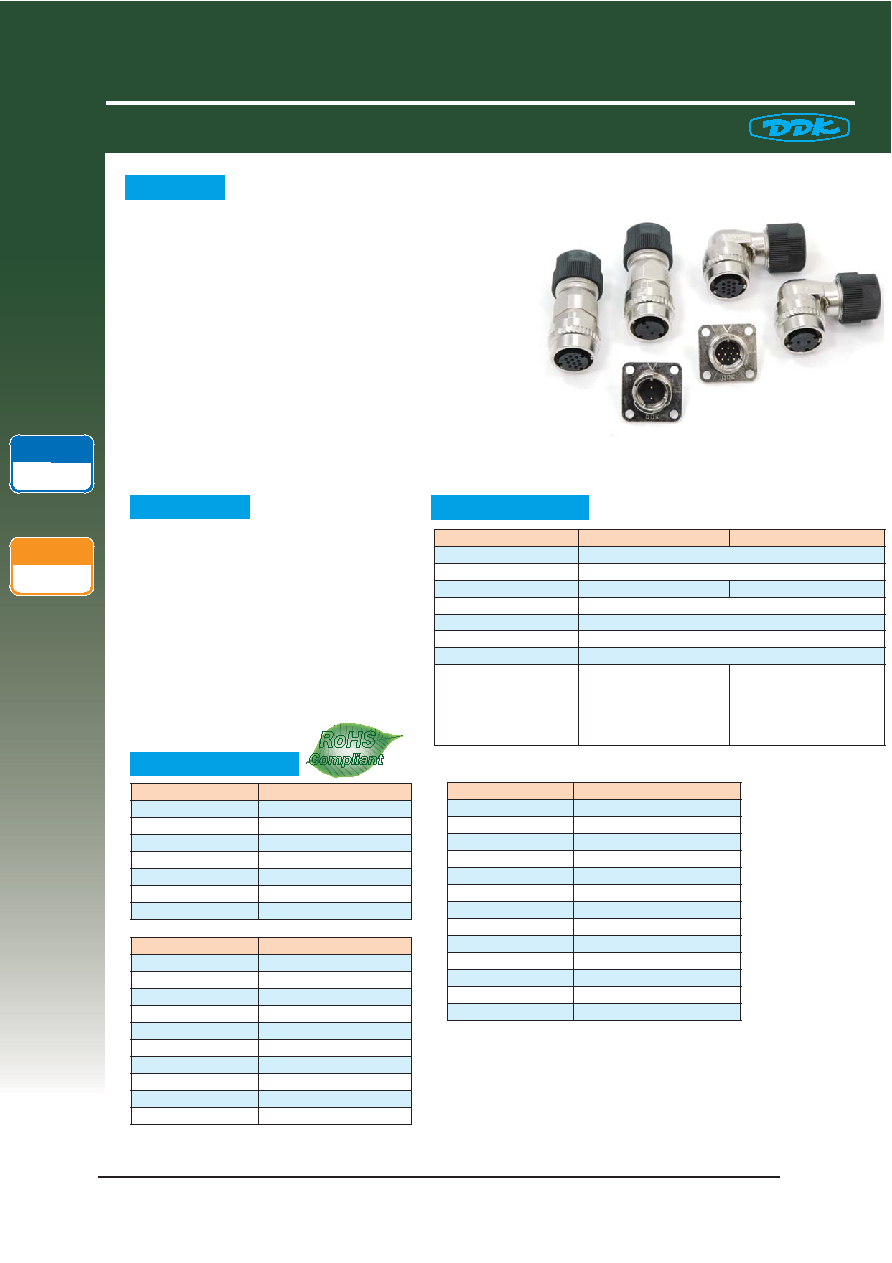

CM10 series (D6) type is a small sized waterproof circular

connector with push on locking and turnoff unlocking

mechanism. The plug will be easily locked with the

receptacle when you push on. Rotating the coupling ring,

the plug will be unlocked when you need to unmate. The

plug can not be unmated from the receptacle by such

an unexpected force like the cable being pulled. CM10

with (D6) has a solid construction with the metal shell.

The weight of the connector is lighter with the light metal

backshell and the resin clamp nut than the CM10 series

connectors which we had released earlier. CM10 series

with (D6) can be used with a wide range of applications

since it is small size and waterproof connector.

1. Solid structure with a metal shell

2. One touch and reliable locking

mechanism of push on and turnoff

3. With a grounding contact (Position 10)

4. Angle plug available for low-profile

mounting

5. Lighter in weight by 30% than CM10

without (D6)

CM10 Series (D6) Type

One-Touch Locking Style

Small Sized Circular Connectors

Item

2 Contacts

10 Contacts

Rated Current

3A Max. ／ Contact

Rated Voltage

200V AC(r.m.s.) Max.

Dielectric Withstanding Voltage

1500V AC(r.m.s.) ／ 1 minute

900V AC(r.m.s.) ／ 1 minute

Insulation Resistance

1,000M Ω Min. at 500V DC

Operating Temperature Range

-25℃ to +85℃

Conductor Size

＃ 22

Protection Rate

IP67 when mated (Receptacle : Individually waterproof)

Applicable Wire

Receptacle, Cable Receptacle

・Soldering only, 20AWG max.

Plug

・Crimp：16AWG-20AWG

・Soldering Use,：16AWG Max.

Receptacle, Cable Receptacle

・Soldering Use,：20AWG Max

Plug

・Crimp：20AWG-28AWG

・Soldering Use,：20AWG Max.

RoHS

Compliant

RoHS

Compliant

Item

Plug

Socket Cover Insulator

Plastic(UL94V-0)/Black

Socket Insulator

Plastic(UL94V-0)/Black

Fixed Pin

Copper Alloy/Nickel Plating

Socket Contact

Copper Alloy/Gold Plating

Coupling Ring

Zinc Alloy/Nickel Plating

O Ring(Mating Side)

Synthetic Rubber/Black

Plug Shell

Zinc Alloy/Nickel Plating

Spring

Stainless Steel

Backshell

Aluminum Alloy/Nickel Plating

Bushing

Synthetic Rubber/Black

Cable Clamp

Plastic(UL94V-0)/White

Clamp Nut

Plastic(UL94V-0)/Black

Retaining Ring

Stainless Steel

Item

Cable Receptacle

Pin Front Insulator

Synthetic Rubber/Black

Pin Rear Insulator

Plastic(UL94V-0)/Black

Screw

Stainless Steel

Pin Contact

Copper Alloy/Gold Plating

Receptacle Shell

Zinc Alloy/Nickel Plating

Backshell

Zinc Alloy/Nickel Plating

Bushing

Synthetic Rubber/Black

Cable Clamp

Plastic(UL94V-0)/White

Clamp Nut

Zinc Alloy/Nickel Plating

Ground Lug

Copper Alloy/Gold Plating

Item

Receptacle

Pin Front Insulator

Synthetic Rubber/Black

Pin Rear Insulator

Plastic(UL94V-0)/Black

Pin Contact

Copper Alloy/Gold Plating

O Ring(Mounting Side)

Synthetic Rubber/Black

Receptacle Shell

Zinc Alloy/Nickel Plating

Retaining Ring

Copper Alloy/Gold Plating

Ground Lug

Copper Alloy/Gold Plating

Lock Type

Push-On

Waterproof

IP 67
