PT8300 V1.8

- 3 -

February, 2006

16-Bit I/O Expander IC

PT8300

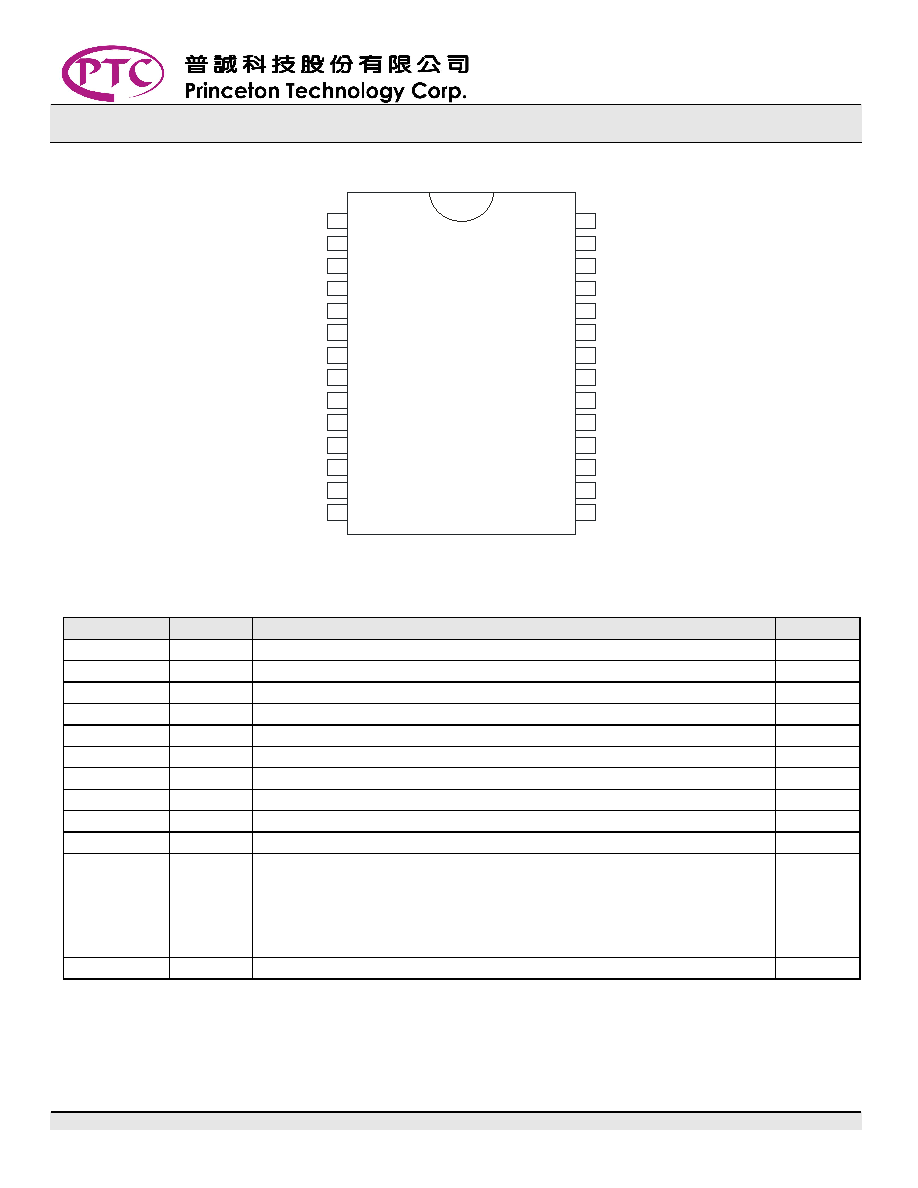

PIN CONFIGURATION

PT8300

VSS

/RESET

CLK

LATCH

P15

P14

P13

P12

P11

P10

P9

P8

LATCHO

CLKO

VDD

PULLUP

DI1

DO2

P0

P1

P2

P3

P4

P5

P6

P7

DI2

DO1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

28

27

26

25

24

23

22

21

20

19

18

17

16

15

PIN DESCRIPTION

Pin Name

I/O

Description

Pin No.

VSS

-

Ground

1

/RESET

I

Reset pin (Active: Low)

2

CLK

I

Clock input pin

3

LATCH

I

Latch input pin

4

P15 ~ P8

I/O

Parallel data input/output pins

5 ~ 12

LATCHO

O

Latch output pin

13

CLKO

O

Clock output pin

14

DO1, DO2

O

Serial data output pins

15, 25

DI1, DI2

I

Serial data input pins

26, 16

P7 ~ P0

O

Parallel data output pins

17 ~ 24

PULLUP

I

P8 to P15 control pin for internal resistor

When P8 to P15 are in the output state, the PULLUP pin must be

When P8 to P15 are in the input state, the PULLUP pin must be

connected to VSS.

27

VDD

-

28
