16-Bit I/O Expander IC

PT8300

OPERATION

1. P0 to P15 are undefined when power is turned ON, but if /RESET is set to LOW, P0 to P7 are in

LOW state. If PULLUP pin is connected to VSS, P8 to P15 are floating. If PULLUP pin is

connected to VDD, P8 to P15 are in HIGH State.

2. The status of P0 to P15 is loaded to the Shift register 1 at the falling edge of LATCH/LATCHO.

3. At the falling edge of the CLK, the 16-bit serial output of the data loaded to the Shift register 1 (Shift

register 2) is sequentially performed from DO1(DO2).

4. At the rising edge of CLK, 16-bit serial data is written into the Shift register 1 (Shift register 2)

from DI1(DI2).

5. At the rising edge of the LATCH/LATCHO, the data written is outputted in a parallel manner to the

P0 to P15.

6. Shift Register 1 loads the data that is to be applied externally and the data with the latched content.

to the parallel output latch.

7. When the LATCH/LATCHO is activated after the arrival of CLK’s 16th bit, the parallel output

latch sends out P0 to P15 by storing the data that has been written into the Shift register 2. The

Shift Registers 1 and 2 continue the shift operation until the CLK’s 16th bit and the DO1 (DO2)

output serial data arrive.

8. Serial data is used to control the switching mode operation (input ↔ output) of P8 to P15. When

P8 to P15 operate as Output Pins, the PULLUP must be set to HIGH.

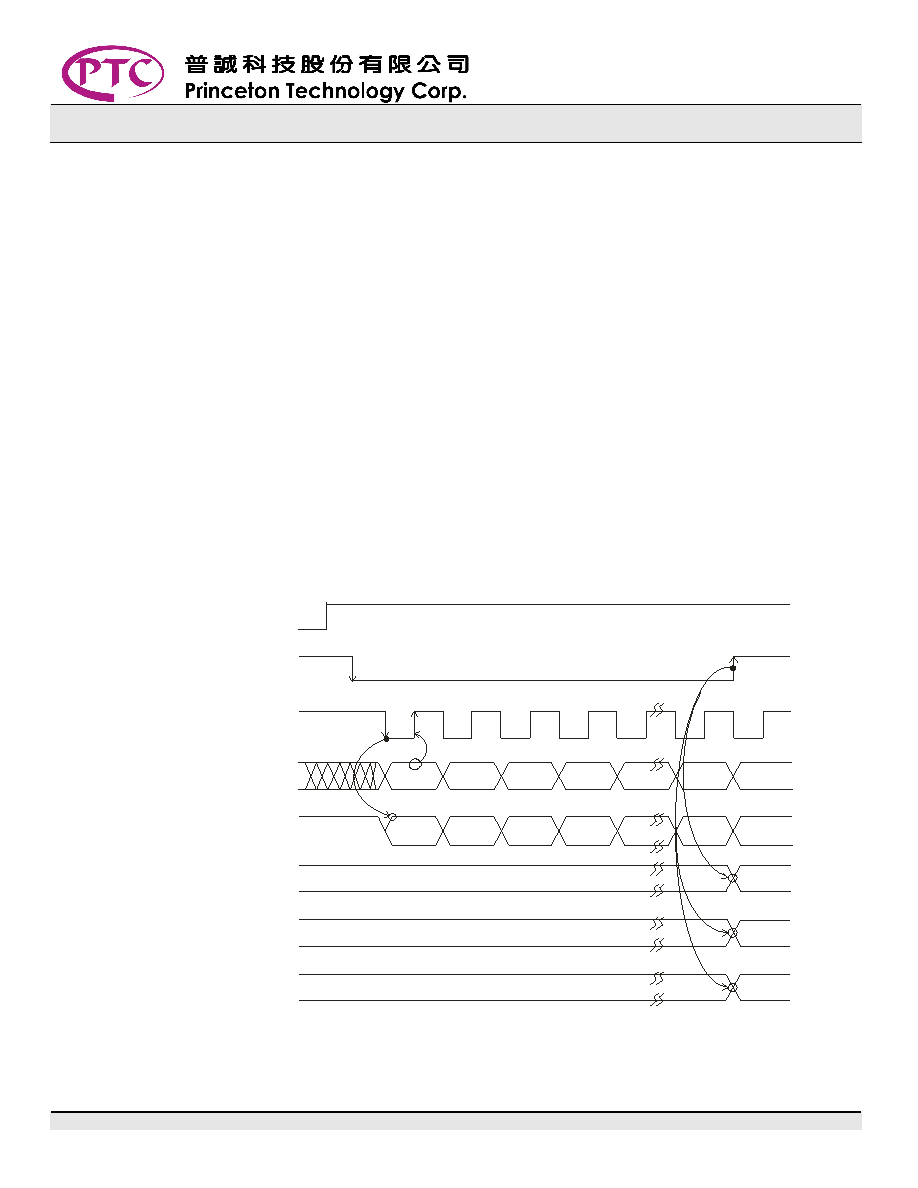

OPERATION TIMING DIAGRAM

12

3

4

516

DO0

DI0

DO1

DI1

DO2

DI2

DO3

DI3

DO15

DI15

/RESET

LATCH/LATCHO

CLK/CLKO

DI1/DI2

DO1/DO2

P0

P1

P15

DI0

DI1

DI15
