Data Sheet
ADRF6701
Rev. 0 | Page 13 of 36
–120
–110
–100
–90
–80
–70
750
800
850
900
950
1000
1050
1100
1150
LO FREQUENCY (MHz)
TA = –40°C
TA = +25°C
TA = +85°C
2× PFD FREQUENCY
4× PFD FREQUENCY

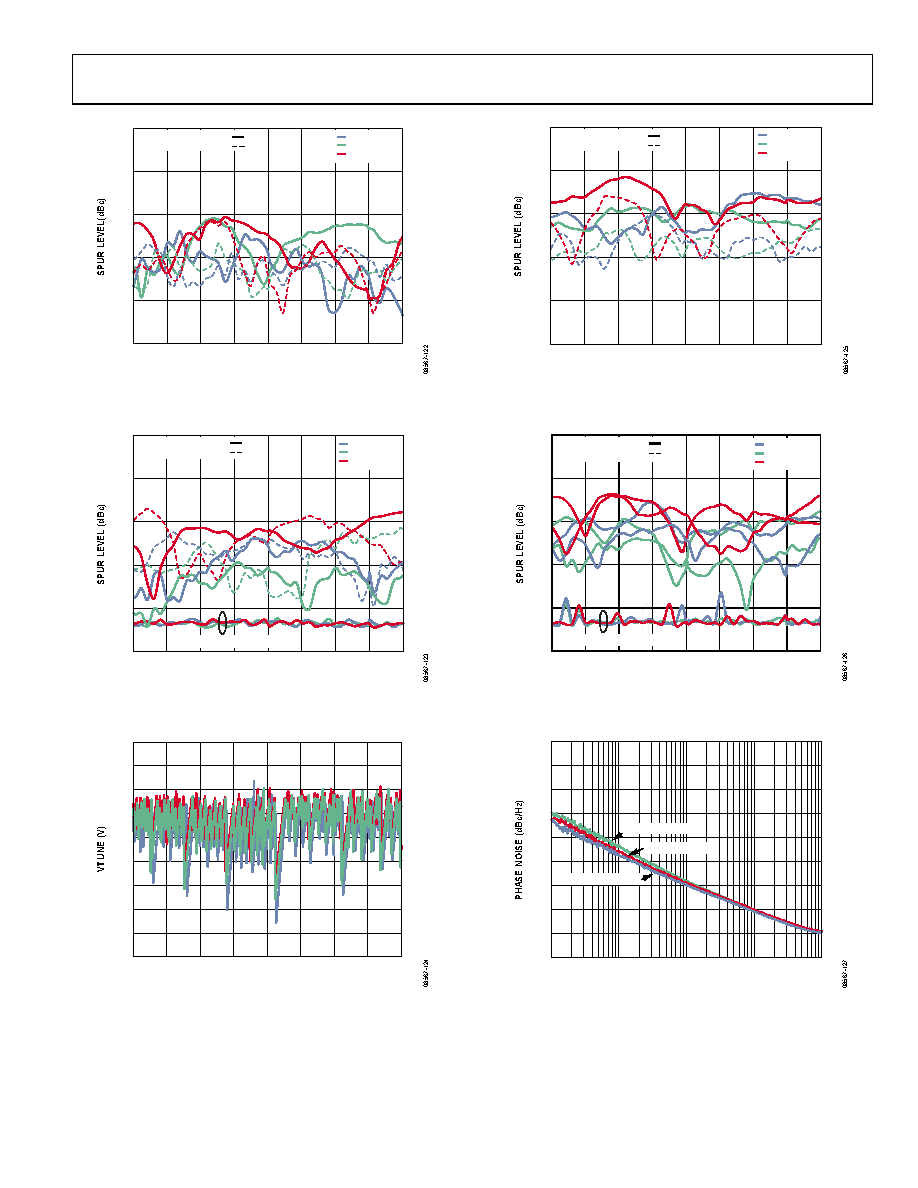

Figure 22. PLL Reference Spurs vs. LO Frequency (2× PFD and 4× PFD) at
Modulator Output
–120
–110
–100
–90
–80
–70
750
800
850
900
950
1000
1050
1100
1150
LO FREQUENCY (MHz)
TA = –40°C
TA = +25°C
TA = +85°C
1× PFD FREQUENCY
3× PFD FREQUENCY
0.5× PFD FREQUENCY
Figure 23. PLL Reference Spurs vs. LO Frequency (0.5× PFD, 1× PFD,
and 3× PFD) at Modulator Output
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
750
800
850
900
950
1000
1050
1100
1150
LO FREQUENCY (MHz)
Figure 24. VTUNE vs. LO Frequency and Temperature
–120
–110
–100
–90
–80
–70
750
800
850
900
950
1000
1050
1100
1150
LO FREQUENCY (MHz)
TA = –40°C
TA = +25°C
TA = +85°C
2× PFD FREQUENCY
4× PFD FREQUENCY
Figure 25. PLL Reference Spurs vs. LO Frequency (2× PFD and 4× PFD) at LO
Output
–120
–110
–100
–90
–80
–70
750
800
850
900
950
1000
1050
1100
1150
LO FREQUENCY (MHz)
0.5× PFD FREQUENCY
TA = –40°C
TA = +25°C
TA = +85°C
1× PFD FREQUENCY
3× PFD FREQUENCY
Figure 26. PLL Reference Spurs vs. LO Frequency (0.5× PFD, 1× PFD, and
3× PFD) at LO Output
–180
–160
–140
–120
–100
–80
–60
–40
–20
0
1M
10M
100M
1G
10G
FREQUENCY (Hz)
LO = 1118.95MHz
LO = 936.48MHz
LO = 799.79MHz
Figure 27. Open-Loop VCO Phase Noise at 799.79 MHz, 936.48 MHz, and
1118.95 MHz
