Programmable Controllers SYSMAC

CS1G/H

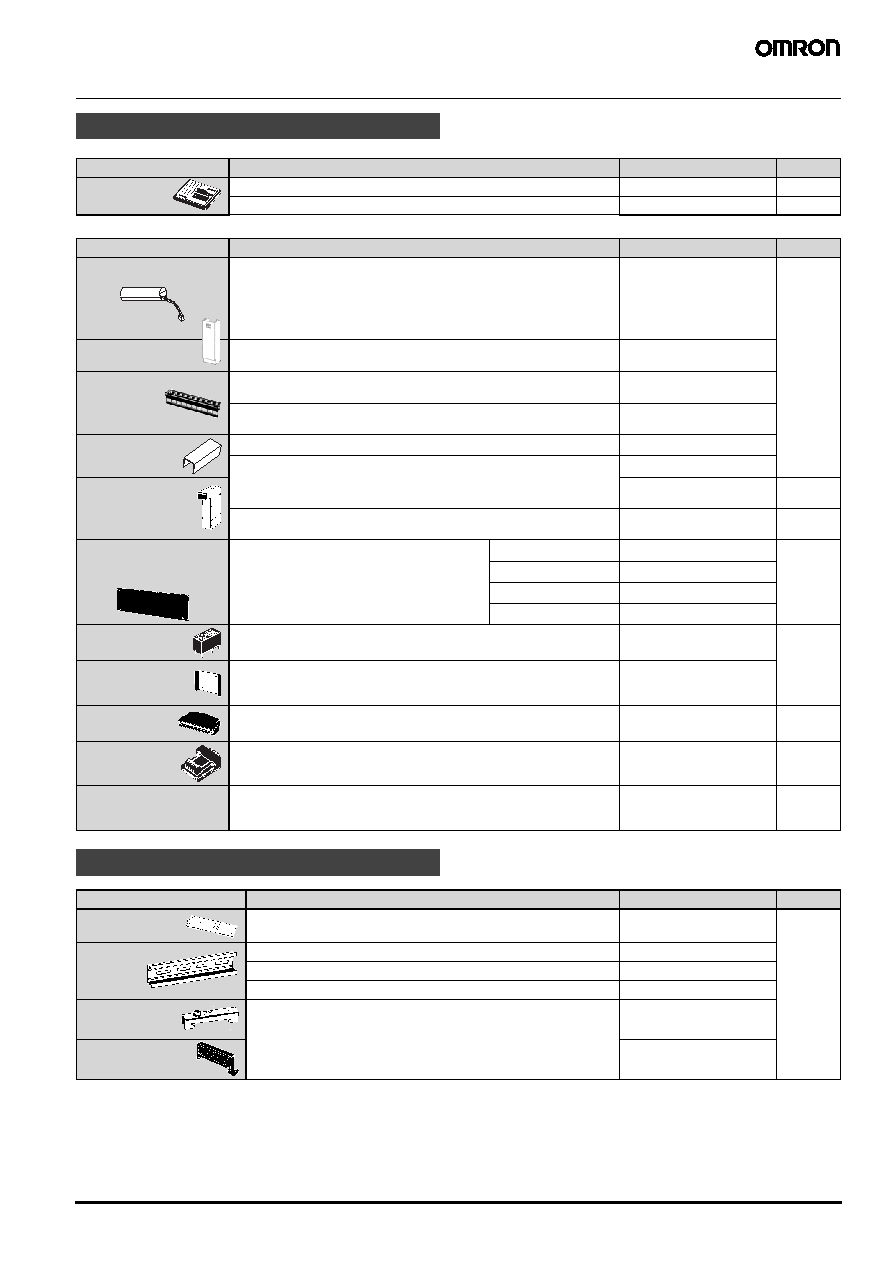

Accessories and Maintenance Parts

Product name

Specifications

Model

Standards

Memory Cards

Flash Memory, 128 MB

HMC-EF183

---

Memory Card Adapter (Adapts to a computer’s PCMCIA card slot.)

HMC-AP001

Product name

Specifications

Model

Standards

Battery Set

Battery for CS-series maintenance

Note 1: A battery is included with the CPU Unit as standard equipment.

2: The battery life is 5 years at an ambient temperature of 25°C, although the

lifetime can be as short as 1.1 years under adverse temperature and power

conditions.

3: Use a replacement battery that was manufactured within the last two years.

CS1W-BAT01

---

I/O Terminal Cover

Cover for 10-pin Terminal Blocks

C200H-COV11

Terminal Block

Cover

Short-circuit protection for 10-pin Terminal Blocks (package of 10 covers); for 8 I/O

points

C200H-COV02

Short-circuit protection for 19-pin Terminal Blocks (package of 10 covers); for 12 I/O

points

C200H-COV03

Connector Cover

Protective cover for unused Power Supply Unit connector in C200H Backplane

C500-COV01

Protective cover for unused CS-series Unit connector in Backplane

CV500-COV01

Space Units

For unused I/O slot spaces in the CS1W-BC

@@3/BI@@3 or C200HW-BI@@@

Backplanes

C200H-SP001

N, L

For unused I/O slot spaces in the CS1W-BC

@@2/BI@@2 or CS1W-BC@@3/BI@@3

Backplanes

CS1W-SP001

---

Backplane Insulation Plate

(for C200HX/HG/HE

Expansion I/O Backplane)

Used to electrically insulate the Backplane from the

control panel as a noise countermeasure.

10 slots

C200HW-ATTA2

N, L, CE

8 slots

C200HW-ATT82

5 slots

C200HW-ATT52

3 slots

C200HW-ATT32

Contact relays

24 VDC

For Relay Output Unit C200H-OC221/222/223/224/225

G6B-1174P-FD-US-M DC24

---

Programming

Console Mounting

Bracket

Use to mount a C200H-PRO27 Programming Console in a control panel.

C200H-ATT01

Terminator

Connected to last Long-distance Expansion Rack (for CS1W-IC102). Two are

included with the CS1W-IC102 I/O Control Unit.

CV500-TER01

U, C

RS-422A Converter

Converts RS-233C to RS-422A/RS-485.

CJ1W-CIF11

UC1, N, L,

RS-232C/RS-422A Link

Adapter

RS-232C × 1 port

RS-422A terminal block

NT-AL001

---

DIN Track Mounting Accessories

Product name

Specifications

Model

Standards

DIN Track

Mounting Bracket

1 set (package of 2 brackets)

C200H-DIN01

---

DIN Track

Track length: 50 cm

Height: 7.3 mm

PFP-50N

Track length: 1 m

Height: 7.3 mm

PFP-100N

Track length: 1 m

Height: 16 mm

PFP-100N2

End Plate

Note: Order in lots of 10.

PFP-M

Spacer

PFP-S
