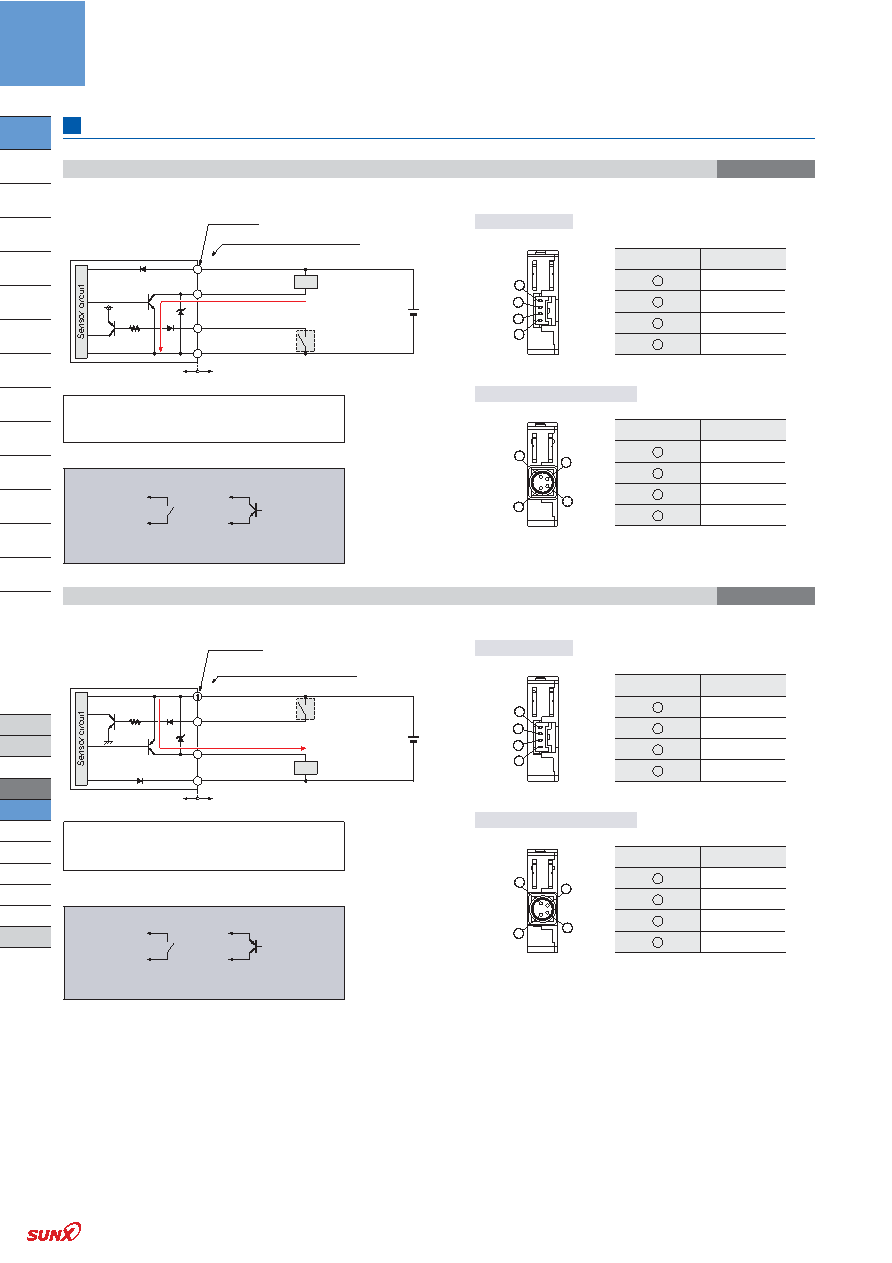

I/O CIRCUIT AND WIRING DIAGRAMS

FX-10□(-Z/-CC2)

NPN output type

Users’ circuit

Internal circuit

+

–

12 to 24 V DC

100 mA max.

* 1

D

Tr

Load

(Brown) +V

(Blue) 0 V

(White) Extemal input

(Black) Output

Terminal No.

Color code of cable with connector

1

2

3

4

I/O circuit diagram

1

2

3

4

Terminal arrangement diagram

Connector type

Terminal No.

Function

1

+V

2

Output

3

External input

4

0 V

M8 plug-in connector type

Terminal No.

Function

1

+V

2

Output

3

External input

4

0 V

1

2

3

4

Symbols … D : Reverse supply polarity protection diode

Tr : NPN output transistor

Non-voltage contact or NPN open-collector transistor

or

High (+8 V to +V DC, or open): Ineffective

Low [(0 to +2 V DC (source current 0.5 mA or less)]: Effective

1

*

FX-10□P(-Z/-CC2)

PNP output type

I/O circuit diagram

Users’ circuit

Internal circuit

12 to 24 V DC

± 10 %

100 mA max.

* 1

D

Tr

Load

+

–

(Brown) +V

(Blue) 0 V

(White) External input

(Black) Output

Terminal No.

Color code of cable with connector

2

3

4

1

2

3

4

Terminal arrangement diagram

Connector type

Terminal No.

Function

1

+V

2

Output

3

External input

4

0 V

M8 plug-in connector type

Terminal No.

Function

1

+V

2

Output

3

External input

4

0 V

1

2

3

4

Non-voltage contact or PNP open-collector transistor

or

High [ +4 V to +V DC (sink current 0.5 to 3 mA)]: Effective

Low (0 to +0.6 V DC, or open): Ineffective

1

*

Symbols … D : Reverse supply polarity protection diode

Tr : PNP output transistor
