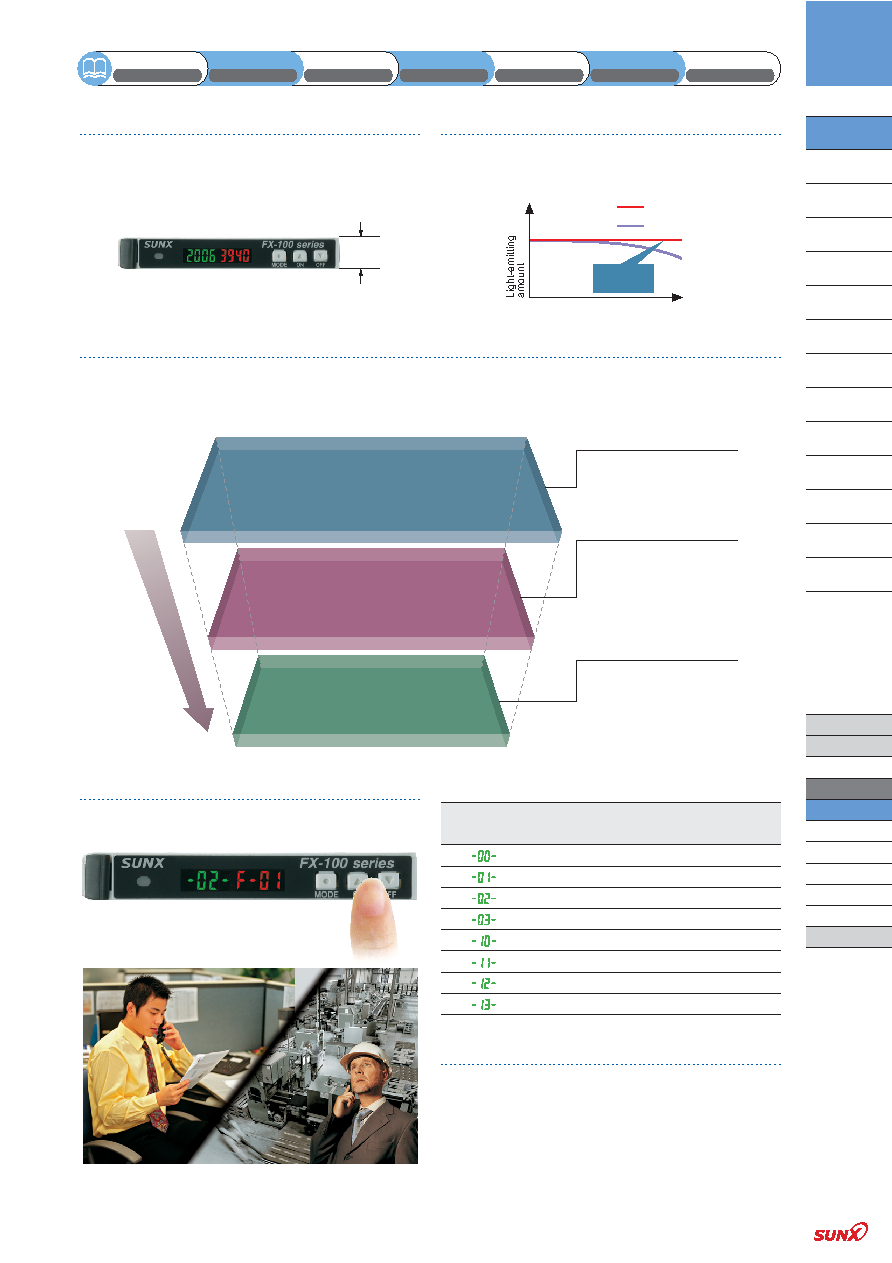

FX-100

Fiber sensor

Amplifiers

The sensor is very slim, yet equipped with a dual digital

display. Both space saving and ease of use have been

achieved.

A stable amount of emitted light is ensured due to control

of the aging of the emitting element to the maximum limit.

Equipped with a four-chemical emitting element

9 mm

0.354 in

Quick code input function [RUN mode]

Sensor settings can be made simply by selecting preset

values.

A three level navigation structure provides easy access to the sensor’s functions, from

basic to advanced

Setting details are divided into three levels for simple operation, so that settings for normal operation are made in

“RUN mode”, basic settings are made in “SET mode”, and advanced functions are set in “PRO mode”. This makes

configuration much easier to understand and carry out.

Functions used during normal operation

[Function table]

• Changing threshold values • Key lock

• Quick settings • Code settings

RUN mode

SET mode

Functions used when initializing the

sensor and carrying out maintenance

[Function table]

• Teaching • L-ON / D-ON setting

• Timer setting

• Attenuation function

• Interference prevention function

PRO mode

Equipped with a full complement

of digital fiber sensor functions

[Function table]

• Shift • External input • Reset

• GETA • ECO • Display reversing

• Surplus value display • Copy

• Threshold tracking

RUN MODE

SET MODE

PRO MODE

Simple setting

Special and detailed setting

Smooth support via telephone [RUN mode]

Confirmation can be carried out smoothly via telephone

by simply quoting numbers. This can be of great

assistance when dealing with foreign country customers.

No.

Output

operation

Light-emitting

amount selection

Timer

Dark-ON

OFF

None

Dark-ON

ON

None

Dark-ON

OFF

OFF-delay 10 ms

Dark-ON

ON

OFF-delay 10 ms

Light-ON

ON

ON-delay 40 ms

Light-ON

OFF

ON-delay 40 ms

Light-ON

ON

ON-delay 10 ms

Light-ON

OFF

ON-delay 10 ms

Quick setting numbers (summary)

P.138

DIMENSIONS

P.136~

PRECAUTIONS FOR PROPER USE

P.135~

SENSING CHARACTERISTICS

P.134~

I/O CIRCUIT DIAGRAMS

P.133

SPECIFICATIONS

P.128~

LIST OF FIBERS

P.126~

ORDER GUIDE

[Stable sensing comparison]

Three-chemical

emitting element

FX-100

Time

Long-term

stability
