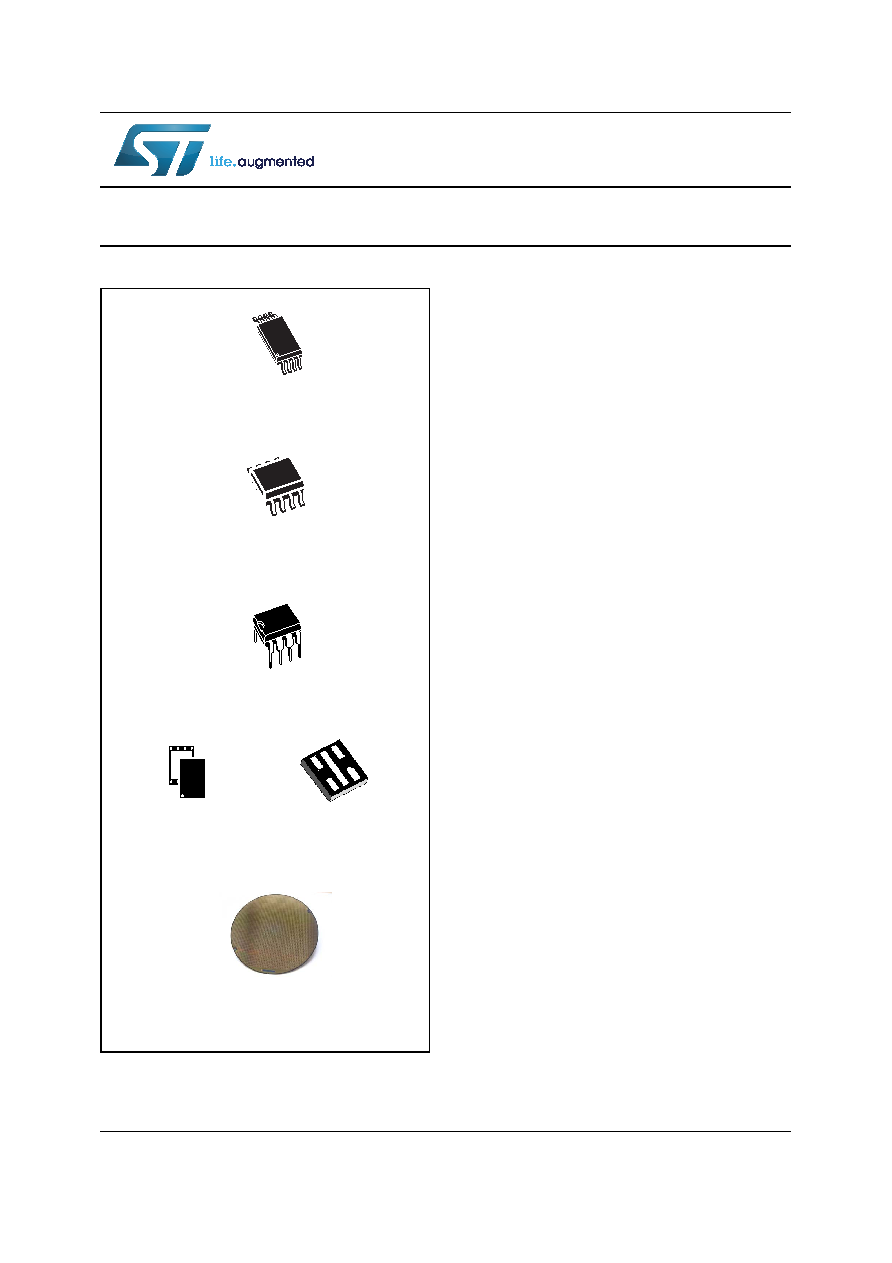

This is information on a product in full production.

September 2014

DocID4578 Rev 24

1/42

M24C32-W M24C32-R M24C32-F

M24C32-X M24C32-DF

32-Kbit serial I²C bus EEPROM

Datasheet

- production data

Features

• Compatible with all I2C bus modes:

–1 MHz

– 400 kHz

– 100 kHz

• Memory array:

– 32 Kbit (4 Kbytes) of EEPROM

– Page size: 32 bytes

– Additional Write lockable page

(M24C32-D order codes)

• Single supply voltage:

– 1.7 V to 5.5 V over –40 °C / +85 °C

– 1.6 V to 5.5 V over –20 °C / +85 °C

• Write:

– Byte Write within 5 ms (10 ms when

VCC = 1.6 V)

– Page Write within 5 ms (10 ms when

VCC = 1.6 V)

• Random and sequential Read modes

• Write protect of the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write cycles

• More than 200-year data retention

Packages

• PDIP8 ECOPACK1®

• SO8 ECOPACK2®

• TSSOP8 ECOPACK2®

• UFDFPN8 ECOPACK2®

• UFDFPN5 ECOPACK2®

PDIP8 (BN)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

UFDFPN8

(MC)

UFDFPN5

(MH)

Unsawn wafer

www.st.com
