Digital Output

In unipolar input mode, the output is straight binary

(Figure 15). For bipolar inputs, the output is two’s-com-

plement (Figure 16). Data is clocked out at SCLK’s

falling edge in MSB-first format.

Clock Modes

The MAX1110/MAX1111 can use either an external ser-

ial clock or the internal clock to perform the successive-

approximation conversion. In both clock modes, the

external clock shifts data in and out of the devices. Bit

PD0 of the control byte programs the clock mode.

Figures 8–11 show the timing characteristics common

to both modes.

External Clock

In external clock mode, the external clock not only

shifts data in and out, it also drives the analog-to-digital

conversion steps. SSTRB pulses high for two clock

periods after the last bit of the control byte. Successive-

approximation bit decisions are made and appear at

DOUT on each of the next eight SCLK falling edges

(Figure 7). After the eight data bits are clocked out,

subsequent clock pulses clock out zeros from the

DOUT pin.

SSTRB and DOUT go into a high-impedance state

when CS goes high; after the next CS falling edge,

SSTRB outputs a logic low. Figure 9 shows the SSTRB

timing in external clock mode.

The conversion must complete in 1ms, or droop on the

sample-and-hold capacitors may degrade conversion

results. Use internal clock mode if the serial-clock fre-

quency is less than 50kHz, or if serial-clock interruptions

could cause the conversion interval to exceed 1ms.

• • •

• • •

• • •

• • •

CS

SCLK

DIN

DOUT

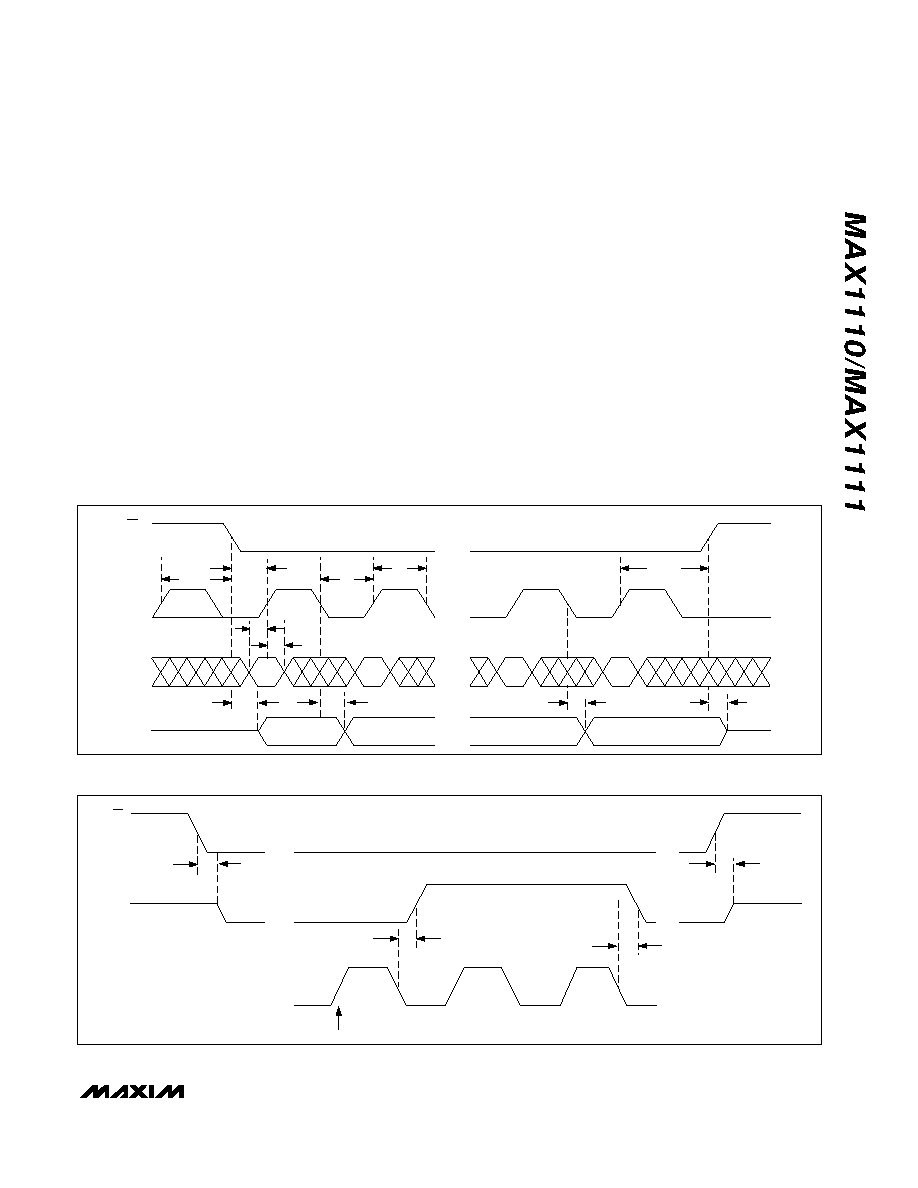

Figure 8. Detailed Serial-Interface Timing

• • •

• • •

• • •

• • • •

• • •

PD0 CLOCKED IN

SSTRB

SCLK

CS

• • • •

Figure 9. External Clock Mode SSTRB Detailed Timing
