7N60-R

Power MOSFET

UNISONICTECHNOLOGIESCO.,LTD

5 of 8

www.unisonic.com.tw

QW-R502-984. A



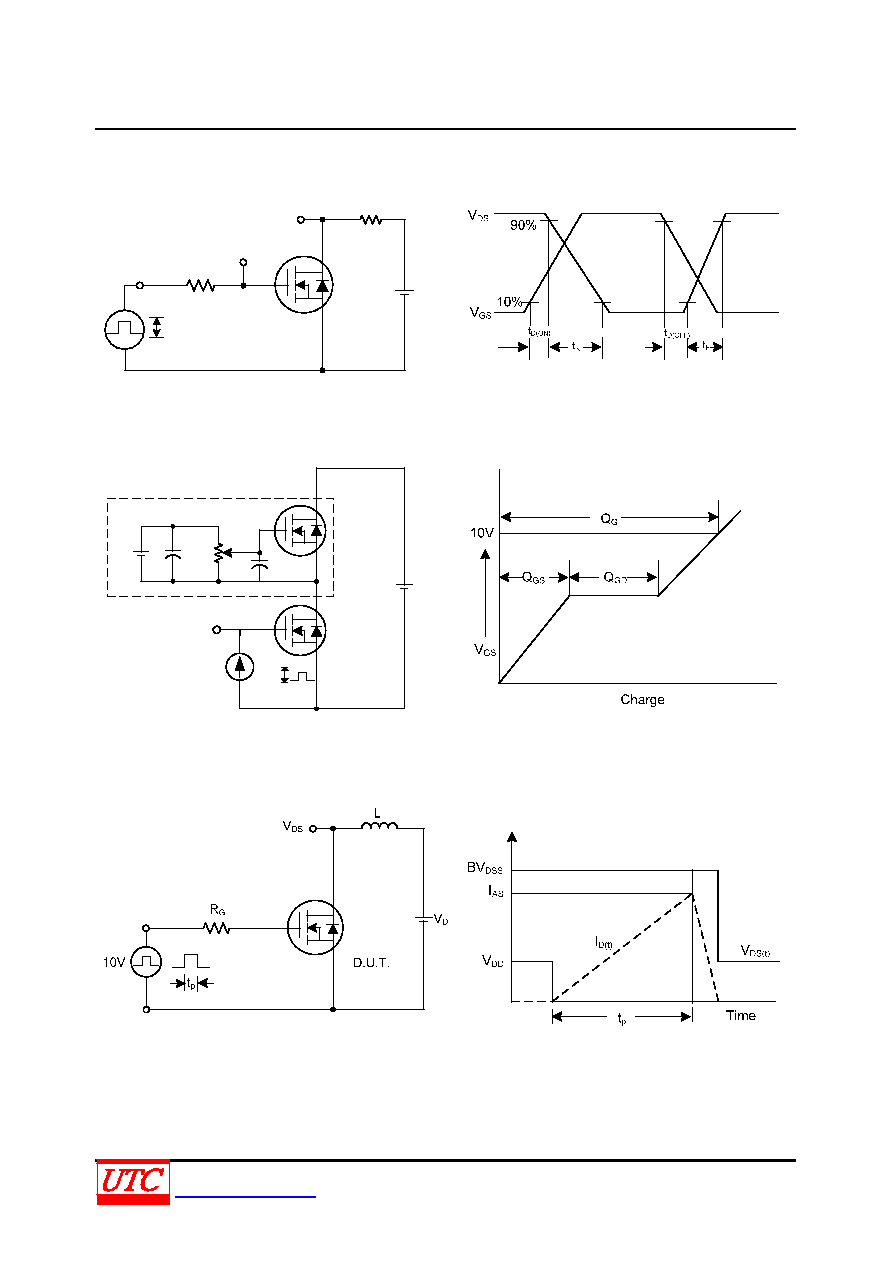

TEST CIRCUITS AND WAVEFORMS (Cont.)

VGS

D.U.T.

10V

VDS

Pulse Width≤ 1μs

Duty Factor≤0.1%

VDD

Switching Test Circuit

Switching Waveforms

50kΩ

0.3µF

DUT

Same

Type as

D.U.T.

0.2µF

12V

VGS

3mA

VDS

Gate Charge Test Circuit

Gate Charge Waveform

Unclamped Inductive Switching Test Circuit

Unclamped Inductive Switching Waveforms
