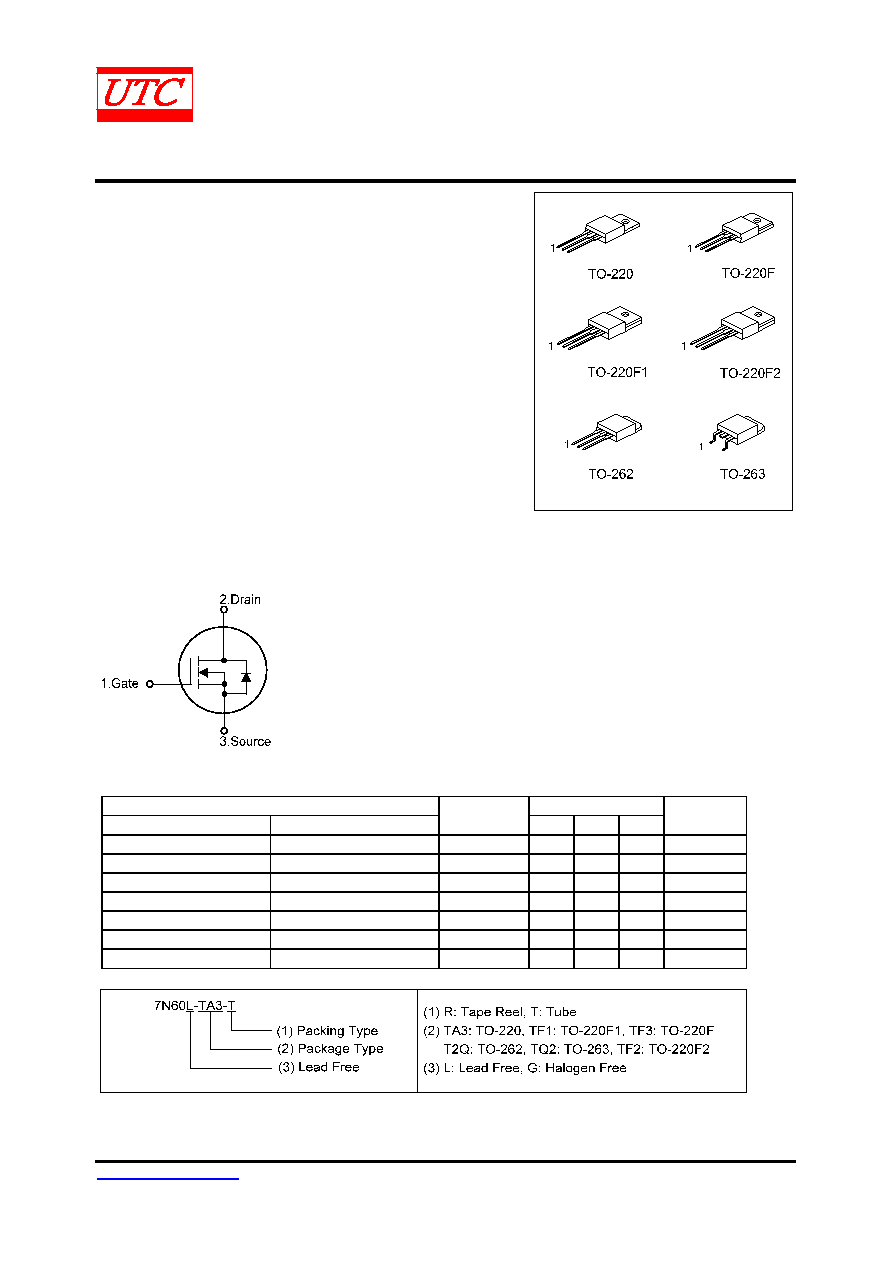

UNISONIC TECHNOLOGIES CO., LTD

7N60-R

Power MOSFET

www.unisonic.com.tw

1 of 8

Copyright © 2013 Unisonic Technologies Co., Ltd

QW-R502-984. A

7.4A, 600V N-CHANNEL

POWER MOSFET



DESCRIPTION

The UTC 7N60-R is a high voltage power MOSFET and is

designed to have better characteristics, such as fast switching time,

low gate charge, low on-state resistance and have a high rugged

avalanche characteristics. This power MOSFET is usually used at

high speed switching applications in switching power supplies and

adaptors.



FEATURES

* Fast Switching Capability

* Avalanche Energy Tested

* Improved dv/dt Capability, High Ruggedness



SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

7N60L-TA3-T

7N60G-TA3-T

TO-220

G

D

S

Tube

7N60L-TF3-T

7N60G-TF3-T

TO-220F

G

D

S

Tube

7N60L-TF1-T

7N60G-TF1-T

TO-220F1

G

D

S

Tube

7N60L-TF2-T

7N60G-TF2-T

TO-220F2

G

D

S

Tube

7N60L-T2Q-T

7N60G-T2Q-T

TO-262

G

D

S

Tube

7N60L-TQ2-R

7N60G-TQ2-R

TO-263

G

D

S

Tape Reel

7N60L-TQ2-T

7N60G-TQ2-T

TO-263

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain S: Source
