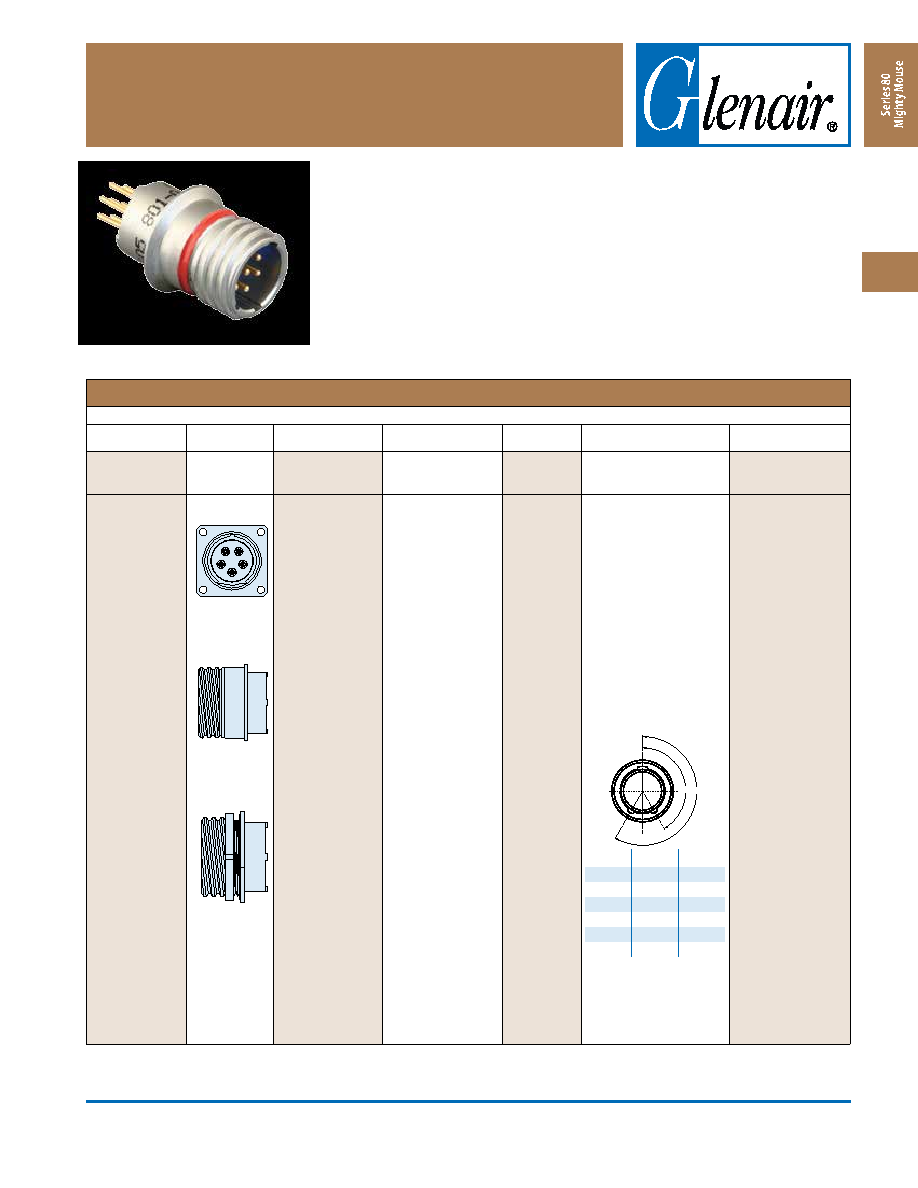

Series 801 Solder Mount Hermetic

Series 801 Hermetic Receptacles

feature 304L stainless steel shells,

fused vitreous glass insulators and

Alloy 52 iron alloy contacts.

1 X 10-7 cc/second maximum helium

leak rate.

HOW TO ORDER

Sample Part Number

801-059 -03

Z1

16-5

P

A

-02

Series

Shell Style

Shell Material

/ Finish

Shell Size/Insert

Arrangement

Contact

Type

Shell Key Position

Cable

Attachment

801-059

Hermetic

Receptacle,

Quick

Coupling,

Co-Ax

Pins

-02

Square

Flange

-03

Solder

Mount

-07

Jam Nut

Rear Mount

Only

Z1

Stainless Steel /

Passivated

ZB

Stainless Steel /

Olive Drab

Chromate over

Cadmium

ZC

Stainless Steel /

Zinc Cobalt

Alloy/Black

Chromate

ZL

Stainless Steel /

Nickel Plated

*Titanium and

Inconel® shell

materials are

available.

Consult factory

for ordering

information.

See Page C-4 for

Contact

Arrangements

P

Co-Ax

A

Normal

B

Pos. B

C

Pos. C

D

Pos. D

E

Pos. E

F

Pos. F

B°

A°

B°

A

150°

210°

B

75°

210°

C

95°

230°

D

140°

275°

E

75°

275°

F

95°

210°

Cables

Accommodated:

-01

M17/113-RG316

-02

M17/152-00001

(RG316DS)

-03

M17/93-RG178

-04

RG-178 Double

Shield per

DSCC 06017

-05

M17/94-RG179

Note:

Each connector

is supplied with

sufficient cable

adapters and crimp

rings to terminate

appropriate cable

for insertion into

contact rear. After

cable is terminated

and adapter

inserted into contact

rear, the rear of

the connector must

be potted to cover

adapters.

Three Shell Styles: solder mount,

jam nut or square flange.

Cable Adapters with Crimp Rings

provided with each connector for

reliable cable termination.

801-059

Series 801 Mighty Mouse Hermetic Receptacle

Quick Coupling • Co-Ax Pins

How to Order Information
