ASPI-8040S

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Revised: 02.03.14

Visit www.abracon.com for Terms & Conditions of Sale

Wire Wound Magnetically Shielded SMD Power Inductor

8.0 x 8.0 x 4.2mm

ABRACON IS

ISO9001:2008

CERTIFIED

Pb RoHS/RoHS II compliant

Part Number

ASPI-8040S-

Inductance Code

Inductance

L Tolerance

DC Resistance

(±30%)

Saturation

Current

Temperature

Rise Current

Min. Self resonant

frequency

Units

μH

−

MHz

Symbol

N, M

DCR

Isat

Irms

SRF

ASPI-8040S-121

120

0.334

1.05

0.95

3.5

ASPI-8040S-151

150

0.410

1.10

0.85

3.5

ASPI-8040S-221

220

0.599

0.85

0.80

3.5

ASPI-8040S-331

330

0.889

0.68

0.64

2.8

Test Conditions:

a. Ambient Temperature: 20± 15oC

b. Relative Humidity: 65%±20%

c. Air Pressure: 86KPa to 106KPa

Inductance (L): ZM2355 LCR meter or equivalent, 100kHz, 1Vrms

Direct Current Resistance (DCR): HIOKI 3540 or equivalent

Saturation Current (Isat): Saturation current meter

Isat: Based on inductance change (∆ L/Lo :∆ -30%)

Temperature rise current (Irms): Electric Power, Electric current meter, Thermometer

Irms: Based on temperature rise (∆ T : 40 oC TYP. )

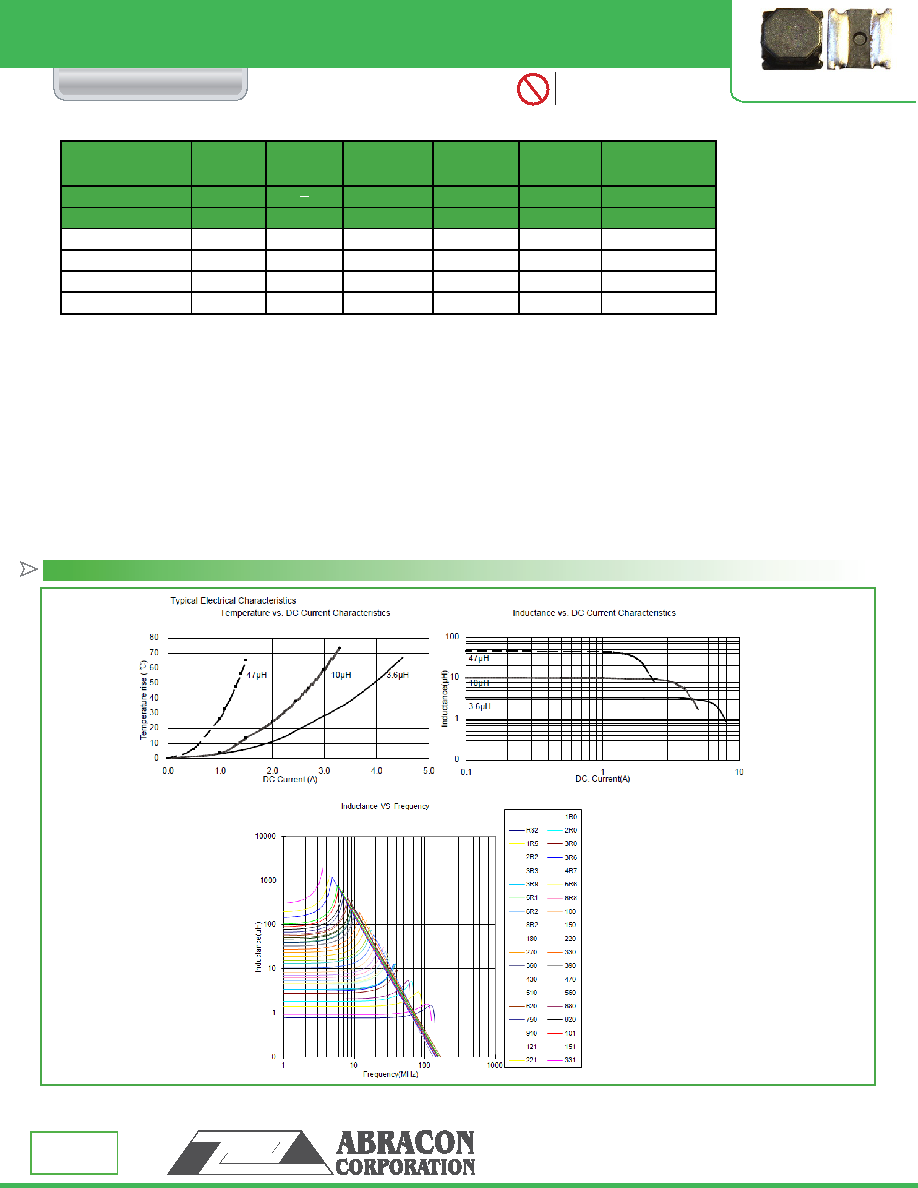

ELECTRICAL CHARACTERISTICS CURVES
