ASPI-8040S

30332 Esperanza, Rancho Santa Margarita, California92688

Revised: 02.03.14

Visit www.abracon.com for Terms & Conditions of Sale

Wire Wound Magnetically Shielded SMD Power Inductor

8.0 x 8.0 x 4.2mm

ABRACON IS

ISO9001:2008

CERTIFIED

ASPI-8040S -

-

*M for 6.8µH~330µH

*N for 0.82µH~6.2µH

Inductance Code

Please refer to the

table above

Tolerance

M: ±20% *

N: ±30% *

Packaging

T: Tape and Reel

(1kpcs / reel)

ELECTRICAL CHARACTERISTICS CURVES

Recommended Land Pattern

Dimensions: mm

A

B

C Max.

D

E

F

a Typ.

b Typ.

c Typ.

8.0±0.3 8.0±0.3 4.2Max. 6.3±0.3 2.00±0.3 4.0±0.3 3.8Typ. 2.2Typ. 7.5Typ.

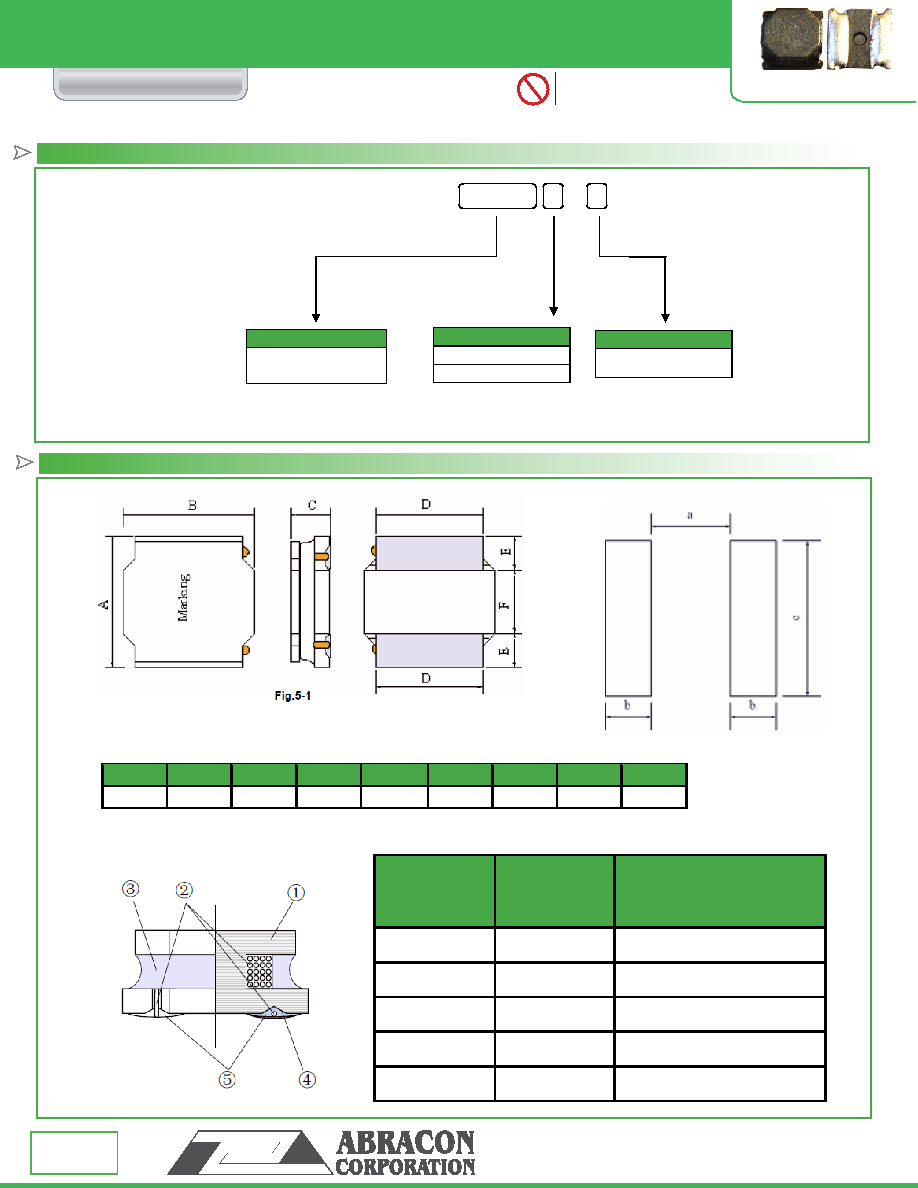

OUTLINE DIMENSIONS:

Materials

No

Components

Material

1

Ferrite Core

Ni-Zn Ferrite

2

Wire

Polyurethane System enameled copper

wire

3

Magnetic Glue

Epoxy resin and magnetic powder

4

Plating Electrodes

Plating: Ag/Ni/Sn

5

Outer Electrodes

Top surface solder

coating:Sn96.5%/Ag3.0%/Cu0.5%
