AD8420
Data Sheet
Rev. A | Page 16 of 26
1k
100
10
1
10
100
100k
10k
1k
FREQUENCY (Hz)

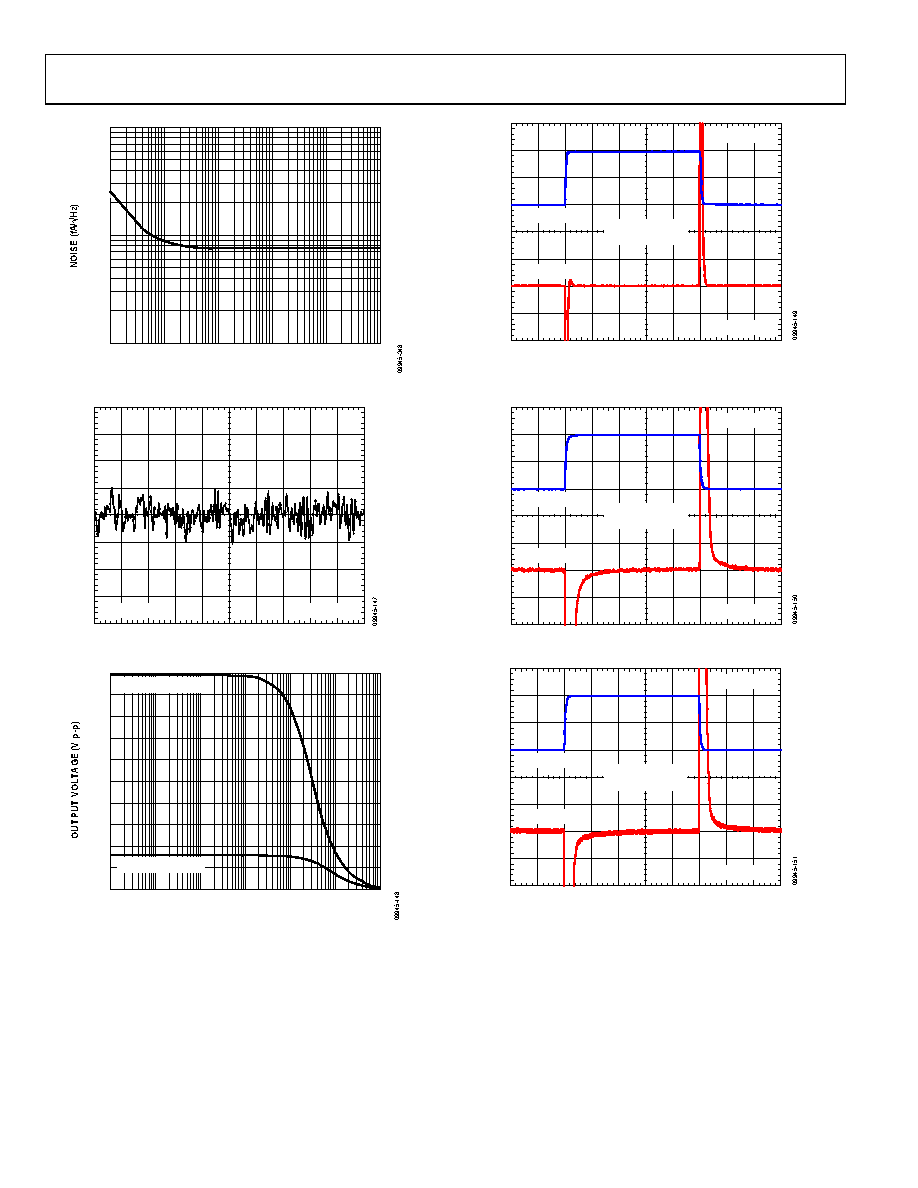

Figure 45. Current Noise Spectral Density vs. Frequency
1.5pA/DIV
1s/DIV
Figure 46. 0.1 Hz to 10 Hz Current Noise
30
0
3
6
9
12
15
18
21
24
27
1
10
100
1k
10k
100k
1M
FREQUENCY (Hz)
VS = ±15V, G = 15V/V
VS = +5V, G = 5V/V
Figure 47. Large Signal Frequency Response
0.02%/DIV
1V/DIV
20µs/DIV
VS = ±5V
1.78µs TO 0.1%
3.31µs TO 0.01%
Figure 48. Large Signal Pulse Response and Settling Time, G = 1
0.02%/DIV
4.5V/DIV
200µs/DIV
VS = ±5V
67µs TO 0.1%
138µs TO 0.01%
Figure 49. Large Signal Pulse Response and Settling Time, G = 10
0.02%/DIV
4.5V/DIV
20ms/DIV
VS = ±5V
600ms TO 0.1%
1.04ms TO 0.01%
Figure 50. Large Signal Pulse Response and Settling Time, G = 100
